ABS Module DTC Chart
Anti-Lock Control
DTC Chart
ABS Module DTC Chart

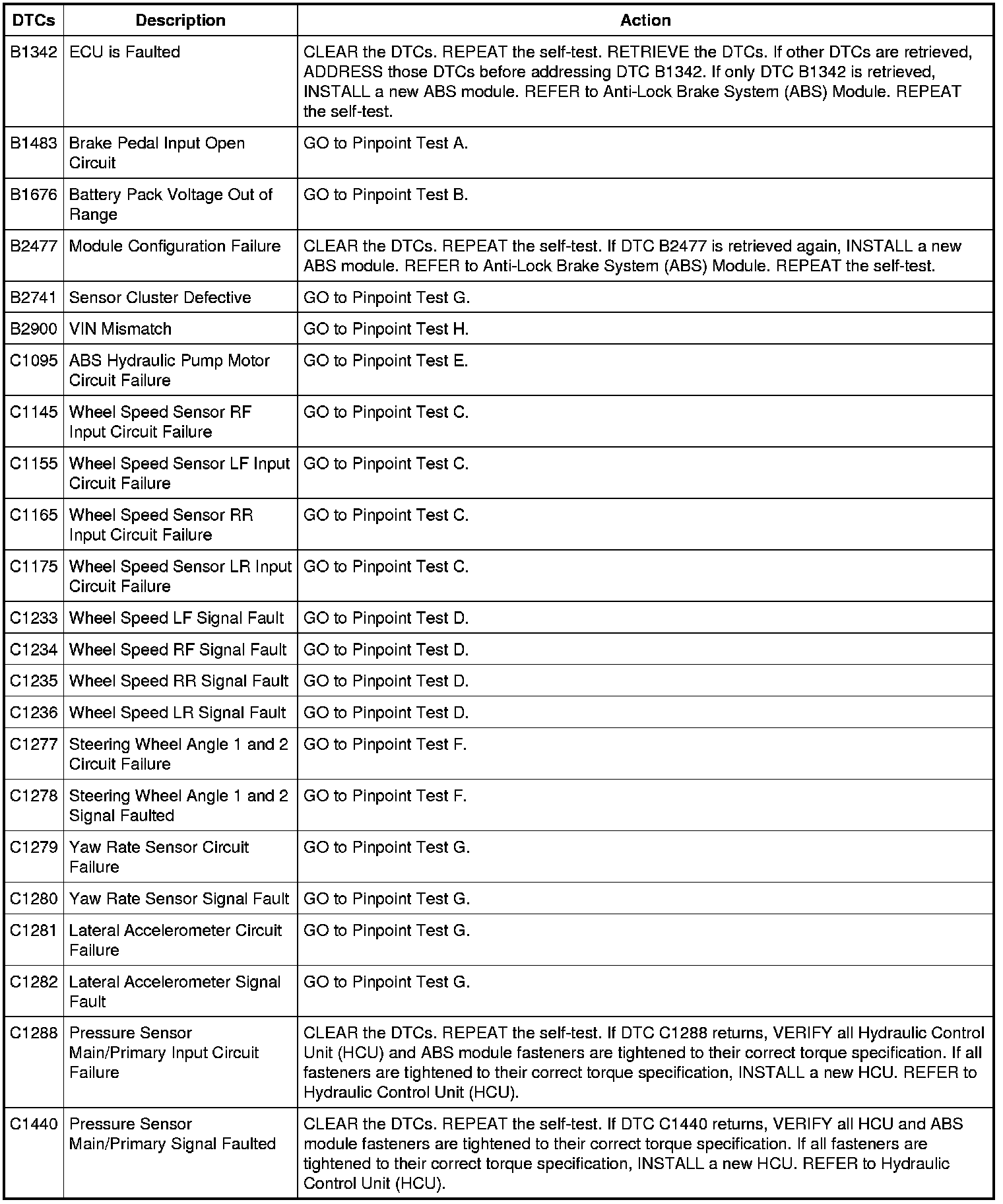

B1342-B2900 / C1095-C1440:

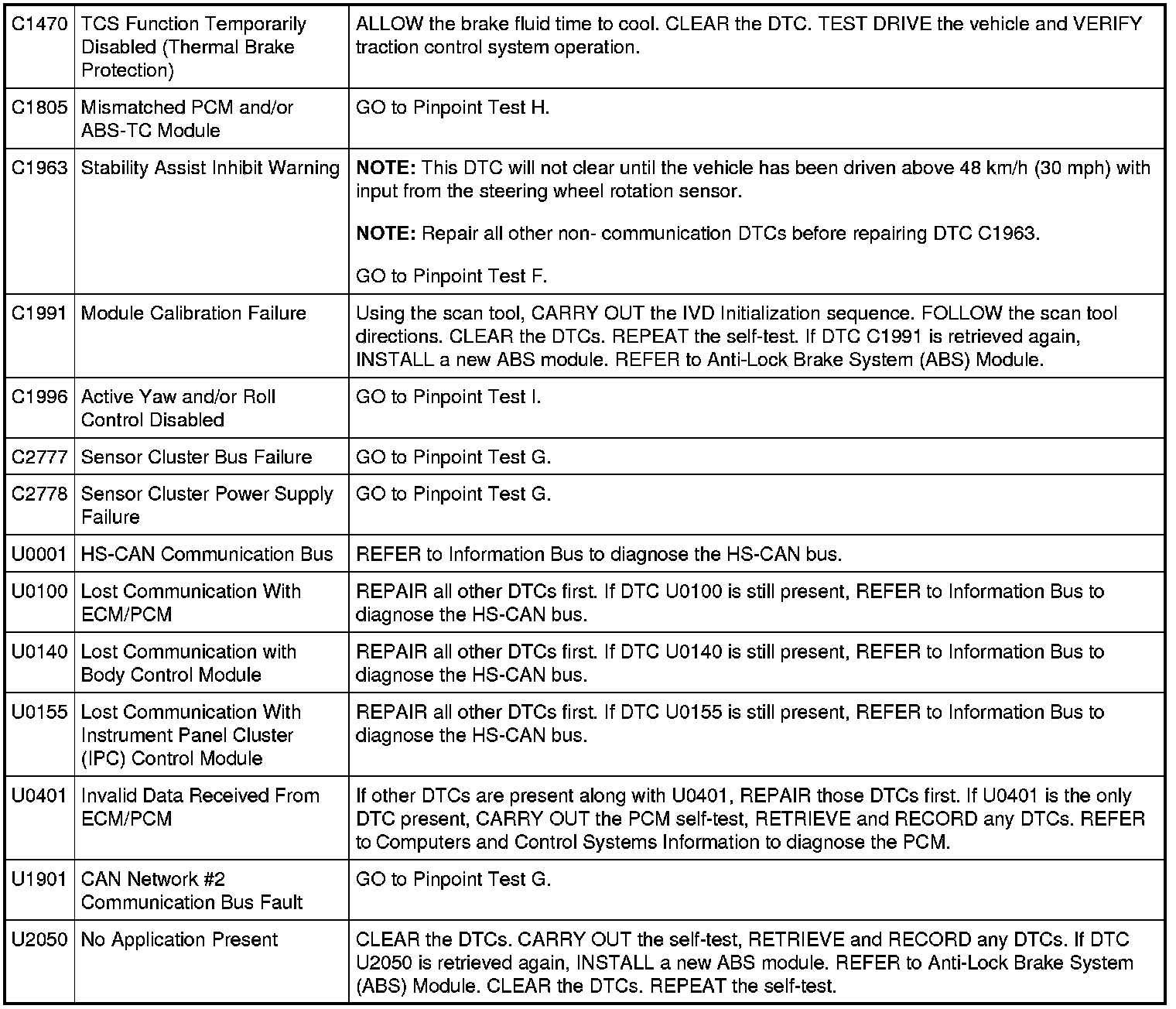

C1470-C2778 / U0001-U2050:
