Center Support: Assembly

Clean and inspect the center support for damage. Install a new center support if necessary.
Install the Low Reverse Piston Seal Protector 307-628/1 and 307-628/2 on the center support.

Fig 1: Identifying Low Reverse Piston Seal Protector 307-628/1 And 307-628/2
Courtesy of FORD MOTOR CO.
Lubricate the sealing surfaces of the low/reverse piston with petroleum jelly.

Fig 2: Locating Low/Reverse Piston
Courtesy of FORD MOTOR CO.
Position the low/reverse clutch piston on the Low Reverse Piston Seal Protector 307-628/1 and 307-628/2 and push it down into the center support.

Fig 3: Identifying Low Reverse Piston Seal Protector 307-628/1 And 307-628/2
Courtesy of FORD MOTOR CO.
Remove the Low Reverse Piston Seal Protector 307-628/1 and 307-628/2.

Fig 4: Identifying Low Reverse Piston Seal Protector 307-628/1 And 307-628/2
Courtesy of FORD MOTOR CO.
Install the low/reverse piston return spring.

Fig 5: Locating Low/Reverse Clutch Return Spring
Courtesy of FORD MOTOR CO.
Install the Center Support Piston Spring Compressor 307-630 on the low/reverse piston return spring.

Fig 6: Identifying Center Support Piston Spring Compressor 307-630
Courtesy of FORD MOTOR CO.

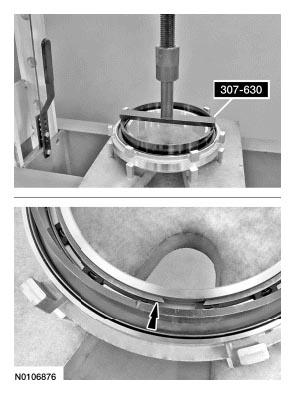

Using the Center Support Piston Spring Compressor 307-630 and a press, compress the low/reverse clutch return spring and install the snap ring.

Fig 7: Identifying Center Support Piston Spring Compressor 307-630
Courtesy of FORD MOTOR CO.
Remove the Center Support Piston Spring Compressor 307-630.

Fig 8: Identifying Center Support Piston Spring Compressor 307-630
Courtesy of FORD MOTOR CO.
Inspect the snap ring to be sure it is seated in the groove on the center support.

Fig 9: Checking Snap Ring
Courtesy of FORD MOTOR CO.
Turn the center support over and install the Low Reverse Piston Seal Protector 307-628/2 and the Low Reverse/1-2-3-4 Piston Seal Protector 307-629 on the center support.

Fig 10: Identifying Low Reverse Piston Seal Protector 307-628/2 And Low Reverse/1-2-3-4 Piston Seal Protector 307-629
Courtesy of FORD MOTOR CO.
Lubricate the sealing surfaces of the forward (1, 2, 3, 4) clutch piston with petroleum jelly.

Fig 11: Locating Forward (1, 2, 3, 4) Clutch Piston
Courtesy of FORD MOTOR CO.
Position the forward (1, 2, 3, 4) clutch piston on Low Reverse Piston Seal Protector 307-628/2 and the Low Reverse/1-2-3-4 Piston Seal Protector 307-629 and push it down into the center support.

Fig 12: Identifying Low Reverse Piston Seal Protector 307-628/2 And Low Reverse/1-2-3-4 Piston Seal Protector 307-629
Courtesy of FORD MOTOR CO.
Remove Low Reverse Piston Seal Protector 307-628/2 and the Low Reverse/1-2-3-4 Piston Seal Protector 307-629.

Fig 13: Identifying Low Reverse Piston Seal Protector 307-628/2 And Low Reverse/1-2-3-4 Piston Seal Protector 307-629
Courtesy of FORD MOTOR CO.
Install the forward (1, 2, 3, 4) clutch piston return spring.

Fig 14: Locating Forward (1, 2, 3, 4) Clutch Piston Return Spring
Courtesy of FORD MOTOR CO.
Install the Center Support Piston Spring Compressor 307-630 on the forward (1, 2, 3, 4) clutch return spring.

Fig 15: Identifying Center Support Piston Spring Compressor 307-630
Courtesy of FORD MOTOR CO.

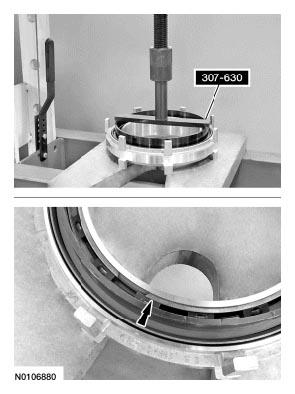

Using the Center Support Piston Spring Compressor 307-630 and a press, compress the forward (1, 2, 3, 4) clutch return spring and install the snap ring.

Fig 16: Identifying Center Support Piston Spring Compressor 307-630
Courtesy of FORD MOTOR CO.
Remove the Center Support Piston Spring Compressor 307-630.

Fig 17: Identifying Center Support Piston Spring Compressor 307-630
Courtesy of FORD MOTOR CO.
Inspect the snap ring to be sure it is seated in the groove on the center support.

Fig 18: Inspecting Snap Ring

Courtesy of FORD MOTOR CO.
