Main Control Valve Body: Installation

NOTE: If cleaning the main control assembly or inspecting the valves, refer to MAIN CONTROL VALVE BODY . If installing a new main control assembly, continue with this procedure.

Install the solenoid body assembly onto the main control valve body. Install the 2 bolts.
- Tighten to 10 Nm (89 lb-in).
Fig 1: Locating Bolts And Solenoid Body Assembly
Courtesy of FORD MOTOR CO.
Position the OSS and TR sensor wiring harnesses aside and install the main control-to-transaxle case separator plate.

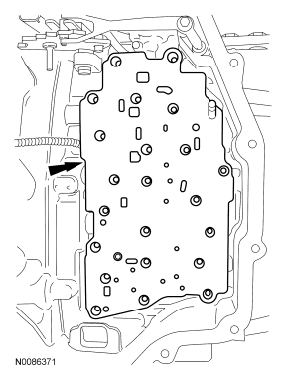

Fig 2: Locating Main Control-To-Transaxle Case Separator Plate
Courtesy of FORD MOTOR CO.
NOTE: Make sure that the manual lever pin (part of the TR sensor) is correctly installed in the manual valve.

Install the main control.

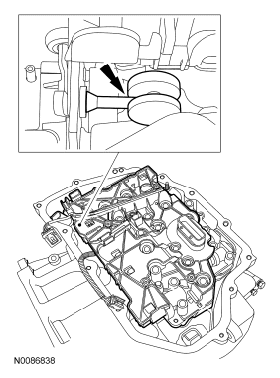

Fig 3: Locating Manual Lever Pin
Courtesy of FORD MOTOR CO.
NOTE: Make sure not to pinch the Output Shaft Speed (OSS) or Transmission Range (TR) sensor wiring harnesses when installing the main control.

NOTE: Install the different length bolts in the locations noted during disassembly.

Install the main control stud nut and 22 main control valve body bolts. Tighten in a crisscross pattern.
- Tighten to 10 Nm (89 lb-in).

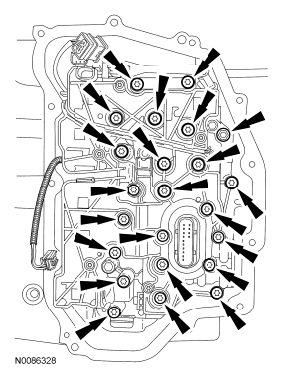

Fig 4: Locating Bolts And Main Control
Courtesy of FORD MOTOR CO.
Connect the OSS sensor electrical connector.

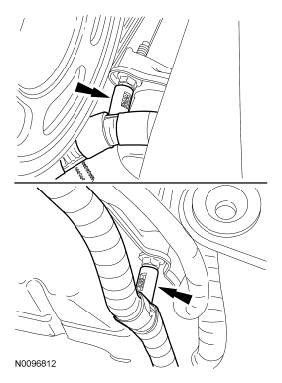

Fig 5: Locating OSS Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Connect the TR sensor electrical connector.

Fig 6: Locating TR Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Install the main control-to-main control cover grommet.

Fig 7: Locating Main Control Cover Grommet
Courtesy of FORD MOTOR CO.
Clean the main control cover sealing surface.

Fig 8: Locating Main Control Cover Sealing Surface
Courtesy of FORD MOTOR CO.
Apply silicone to the main control sealing surface of the transaxle case.

Fig 9: Applying Silicone To Main Control Sealing Surface Of Transaxle Case
Courtesy of FORD MOTOR CO.
Position the main control cover in place.

Fig 10: Locating Main Control Cover
Courtesy of FORD MOTOR CO.
NOTE: Inspect the main control-to-main control cover grommet to make sure that the seal is on the inside of the main control cover. Transmission fluid leak will occur.

NOTE: Install the stud bolts in the locations noted during disassembly.

Tighten the 8 main control cover bolts and 5 stud bolts.
- Tighten to 12 Nm (106 lb-in).

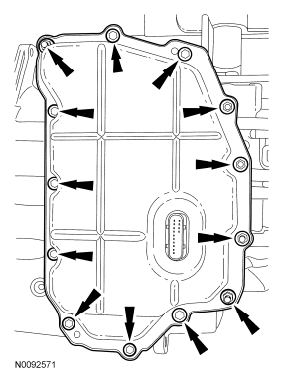

Fig 11: Locating Bolts, Stud Bolts And Main Control Cover
Courtesy of FORD MOTOR CO.
Position the transmission fluid cooler tube bracket and transmission fluid cooler tube assembly in place and install the 2 nuts.
- Tighten to 9 Nm (80 lb-in).
Fig 12: Positioning Transmission Fluid Cooler Tube Bracket
Courtesy of FORD MOTOR CO.
Connect the transaxle electrical wiring harness retainers to the main control cover studbolts.

Fig 13: Locating Transaxle Electrical Wiring Harness Retainers
Courtesy of FORD MOTOR CO.
Connect the transaxle electrical connector.

Fig 14: Locating Transaxle Electrical Connector
Courtesy of FORD MOTOR CO.
Install the underbody cover and the screws.

Fig 15: Locating Underbody Cover And Screws
Courtesy of FORD MOTOR CO.
Install the ACL assembly. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING - 2.5L or INTAKE AIR DISTRIBUTION & FILTERING - 3.0L (4V) .
Fill the transaxle with clean transmission fluid.

Fig 16: Locating Transmission Fluid Level Indicator
Courtesy of FORD MOTOR CO.
Start the engine and let it run for 3 minutes. Move the range selector lever into each gear position. Check the transmission fluid level, making sure that the transmission fluid is at the correct level.
