Dimmer Switch: Service and Repair

Instrument Panel Dimmer Switch









Removal and Installation

1. Remove the steering column opening trim panel. For additional information, refer to Instrument Panel - Exploded View in Instrument Cluster / Carrier &/or Interior Moulding / Trim.

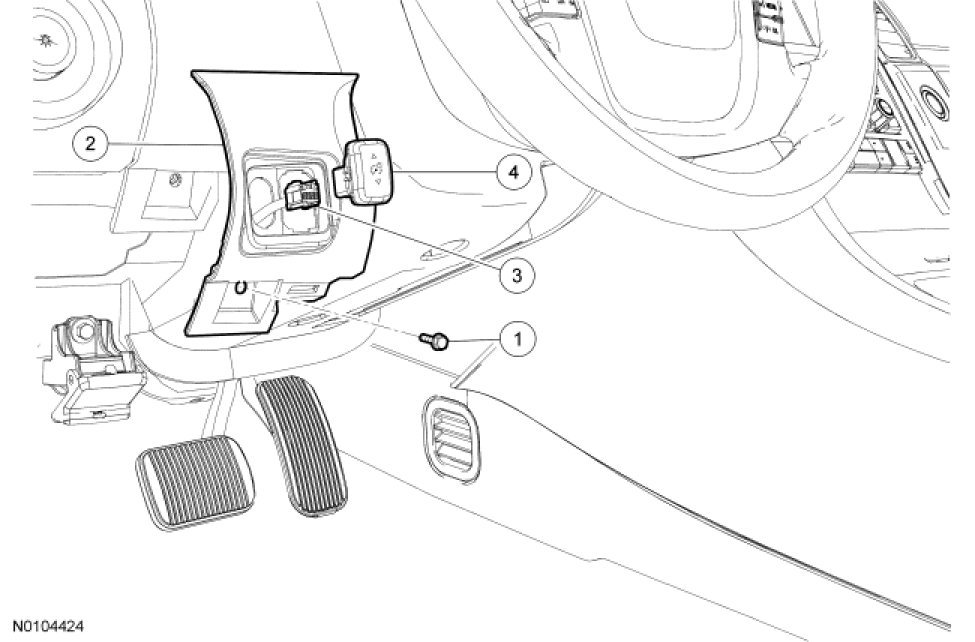

2. Remove the instrument panel dimmer switch bezel retaining screw and pull off the bezel.
- Disconnect the electrical connector.

3. Release the tabs and remove the instrument panel dimmer switch.

4. To install, reverse the removal procedure.
