Seat Belt Systems

Safety Belt System - Exploded View, Rear

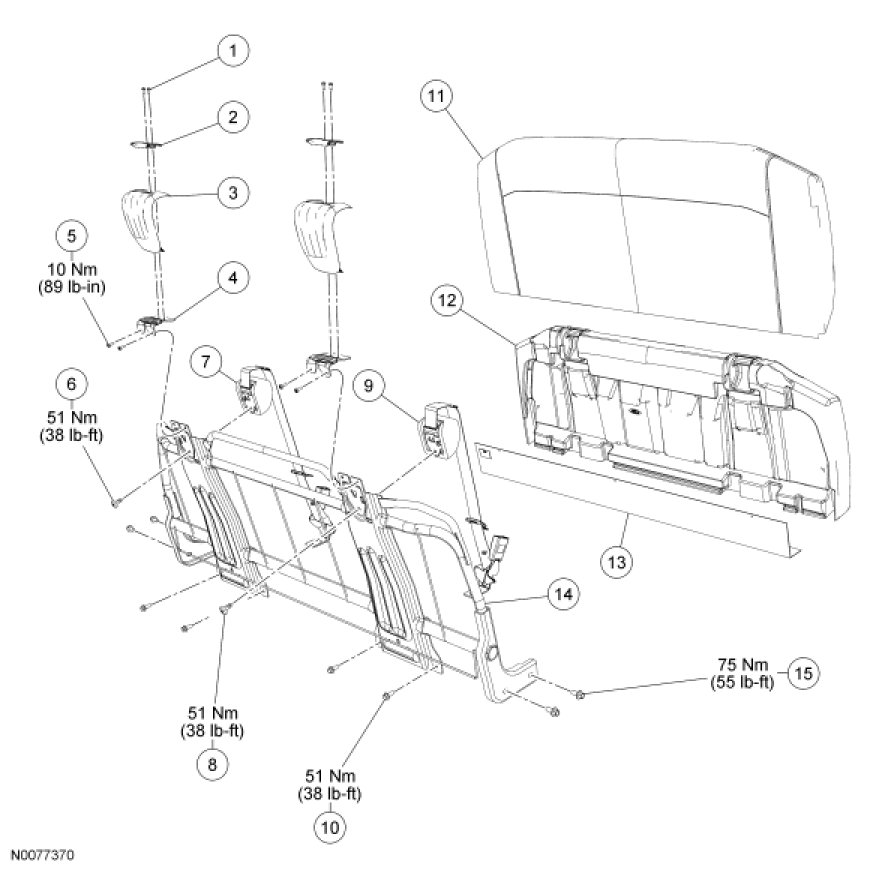

Seat Mounted Safety Restraints - Backrest, 3-Passenger Bench

NOTE: Seven-passenger vehicle third row bench seat shown, others similar.

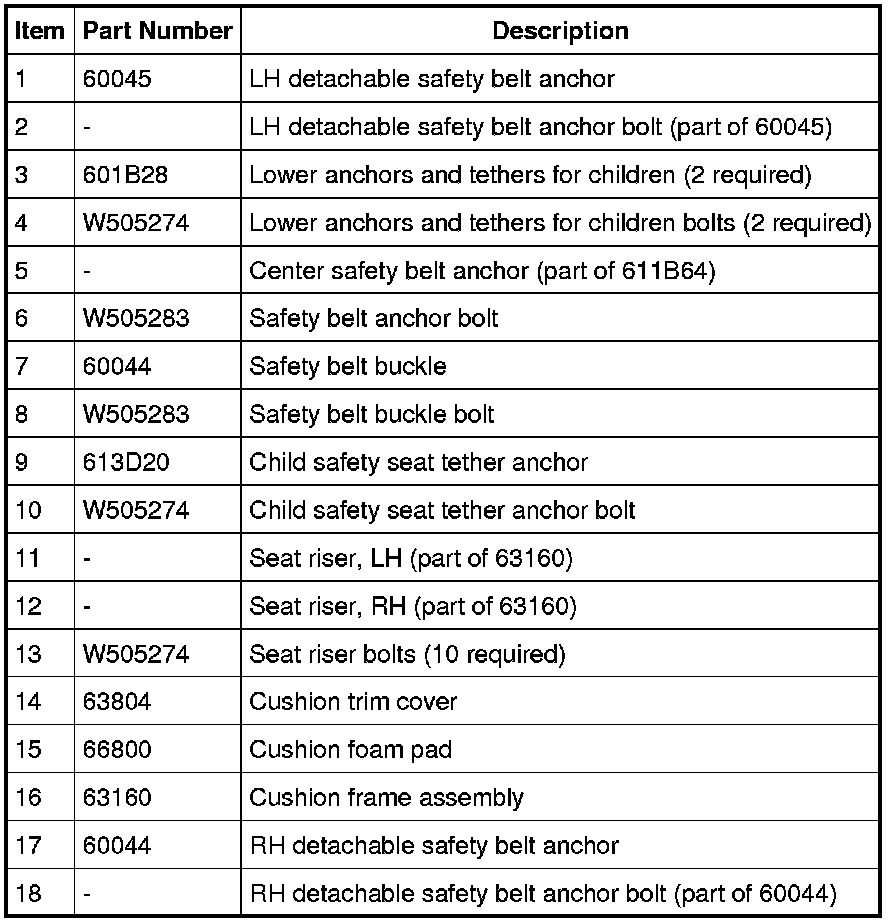

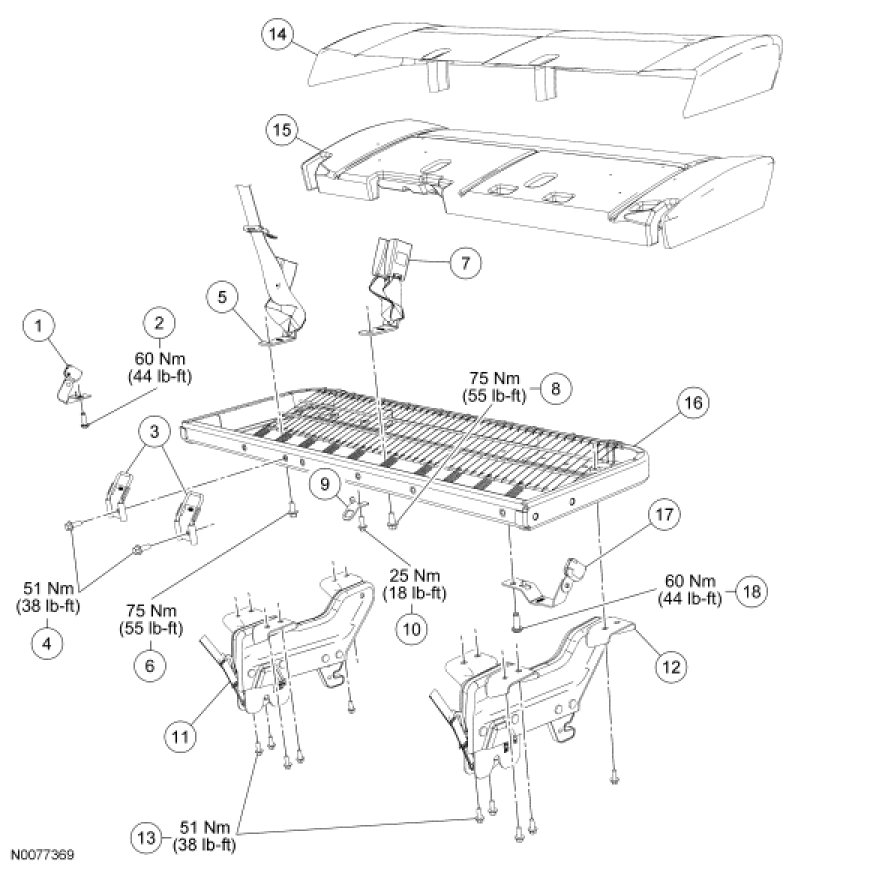

Seat Mounted Safety Restraints - Cushion, 3-Passenger Bench

NOTE: Seven-passenger vehicle third row bench seat shown, others similar.

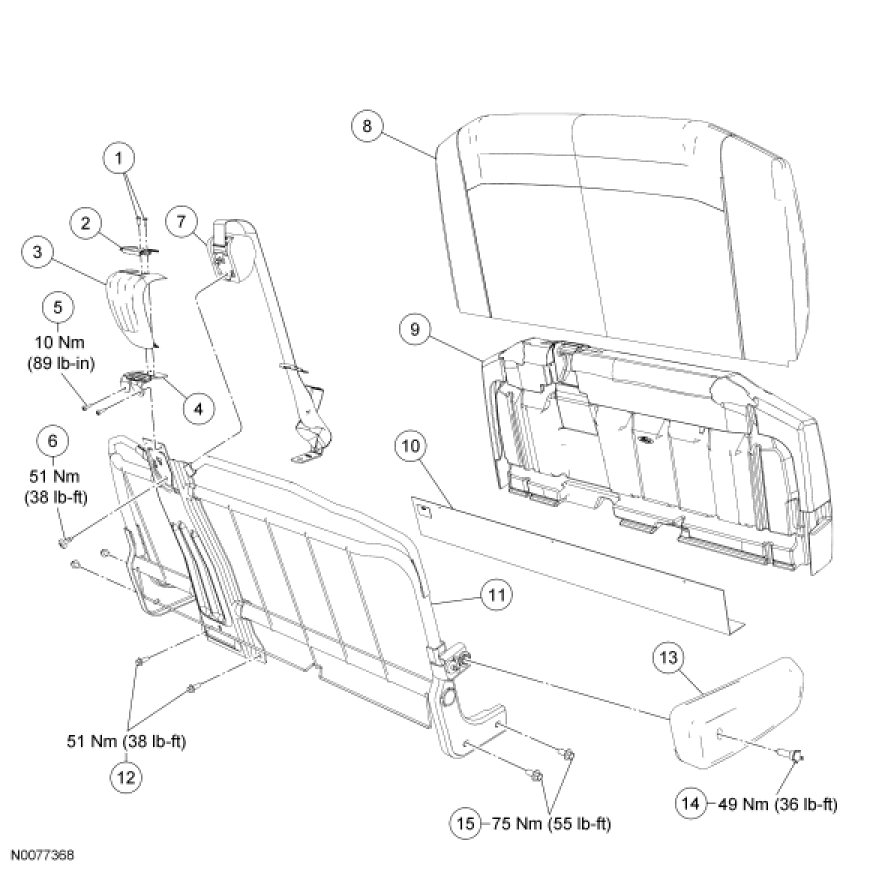

Seat Mounted Safety Restraints - Backrest, 4-Passenger Bench

NOTE: Fifteen-passenger vehicle fifth row 4-passenger bench seat shown, 12-passenger vehicle fourth row similar.

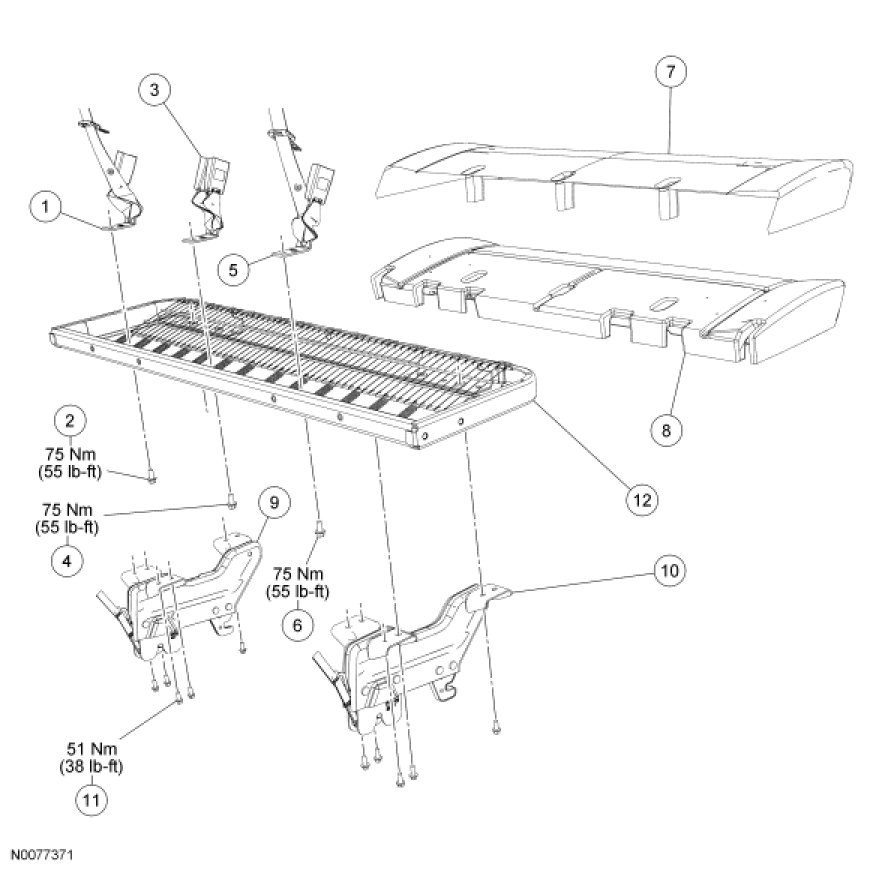

Seat Mounted Safety Restraints - Cushion, 4-Passenger Bench

NOTE: Fifteen-passenger vehicle fifth row 4-passenger bench seat shown, 12-passenger vehicle fourth row similar.
