Body Control Module (BCM), Exterior Lighting

Diagnostic Trouble Code (DTC) Chart

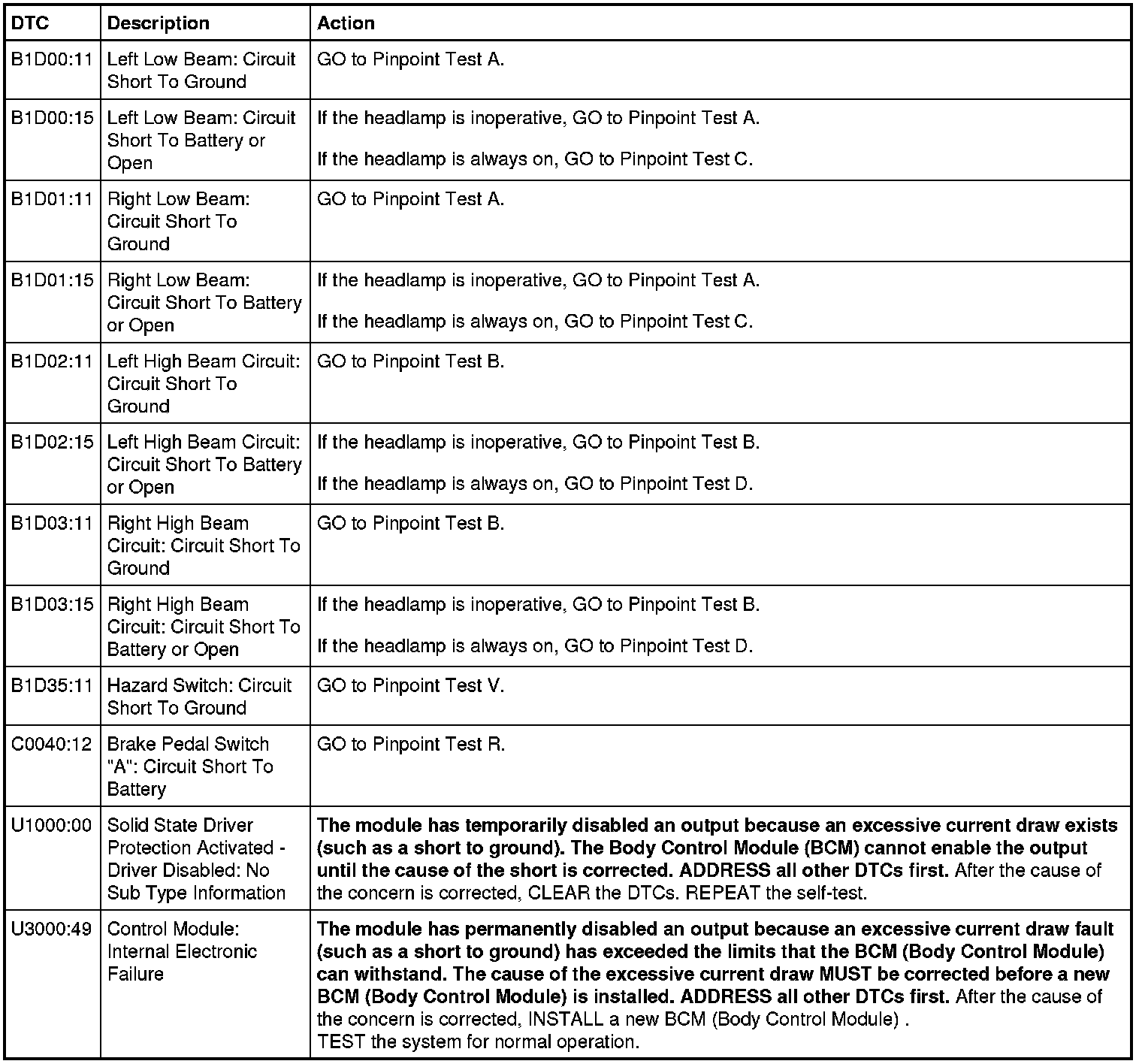

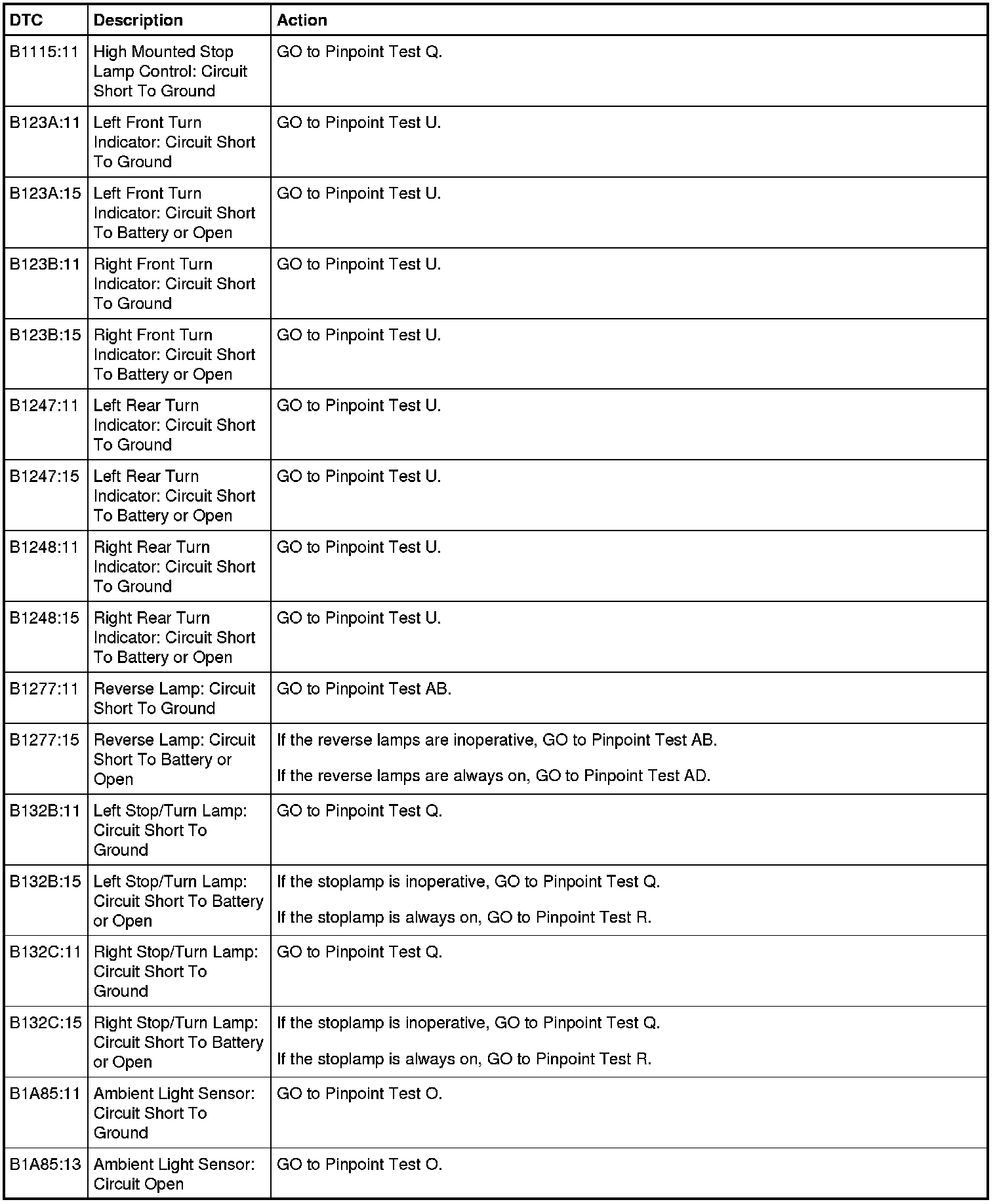

Body Control Module (BCM) DTC Chart

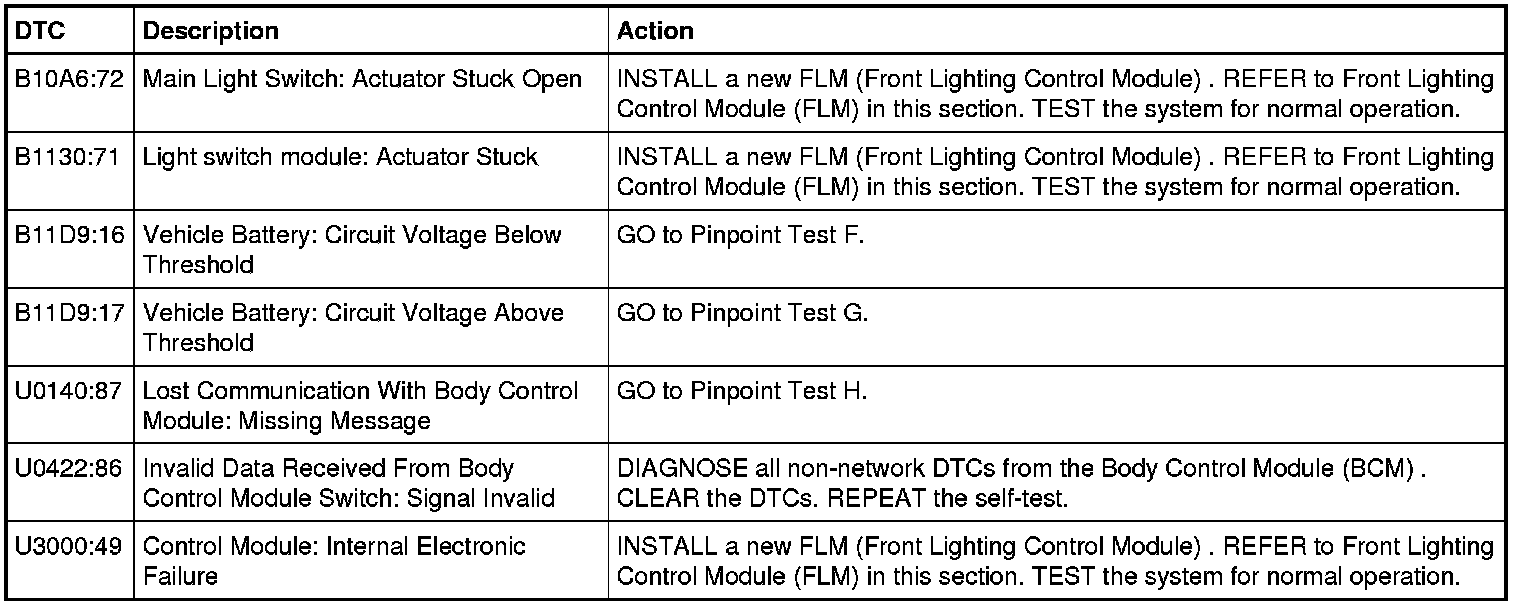

Front Lighting Control Module (FLM) DTC Chart






Steering Column Control Module (SCCM) DTC Chart

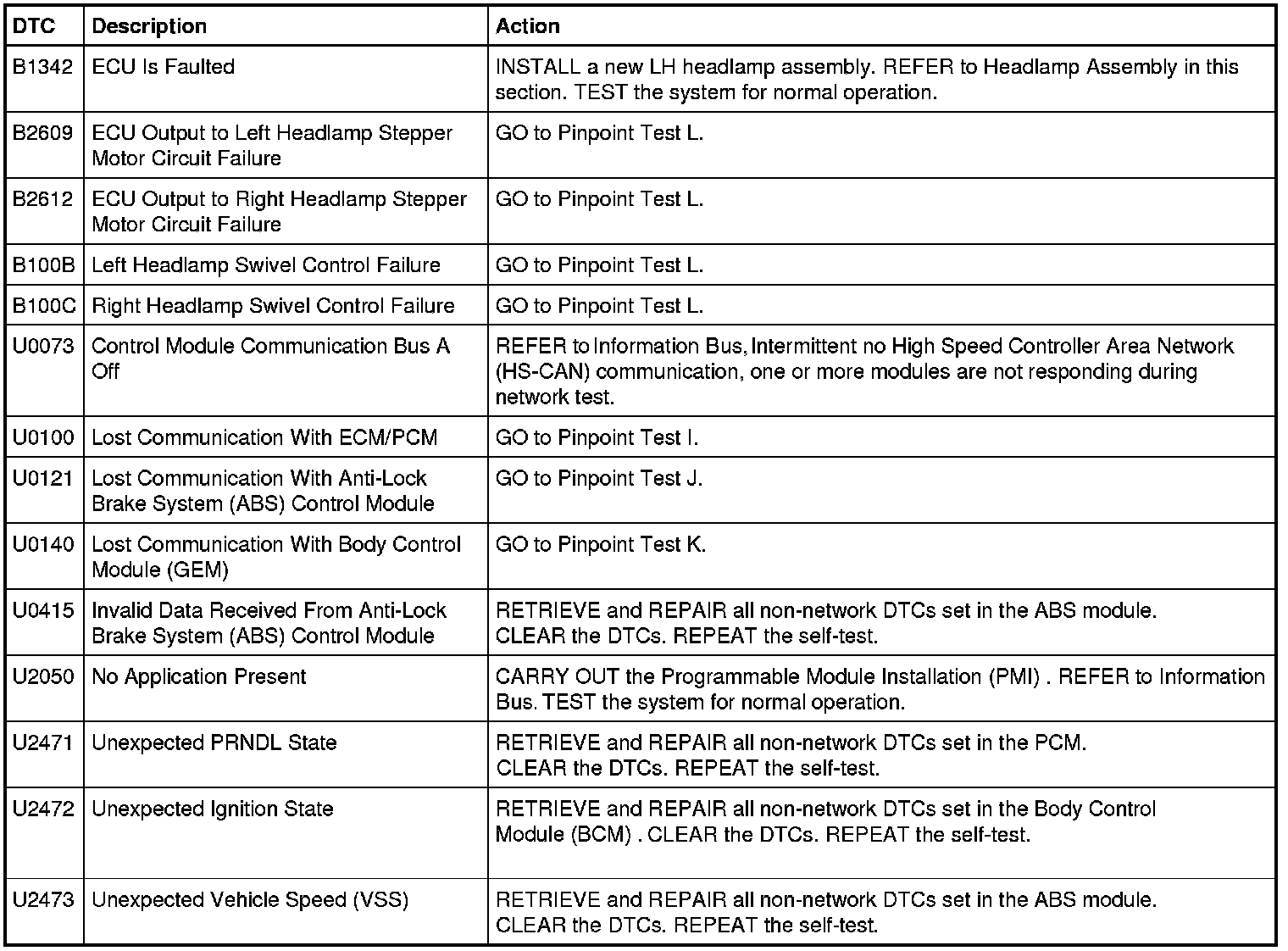

Headlamp Control Module (HCM) DTC Chart






Remote Function Actuator (RFA) Module DTC Chart

NOTE: Refer to Description and Operation, Intelligent Access (IA) with Push Button Start in Antitheft and Alarm Systems to review the procedures for achieving the various ignition states (ignition off, ignition in accessory, ignition on, ignition start) on vehicles with this feature.
