Heated Steering Wheel Module Connector - C2406

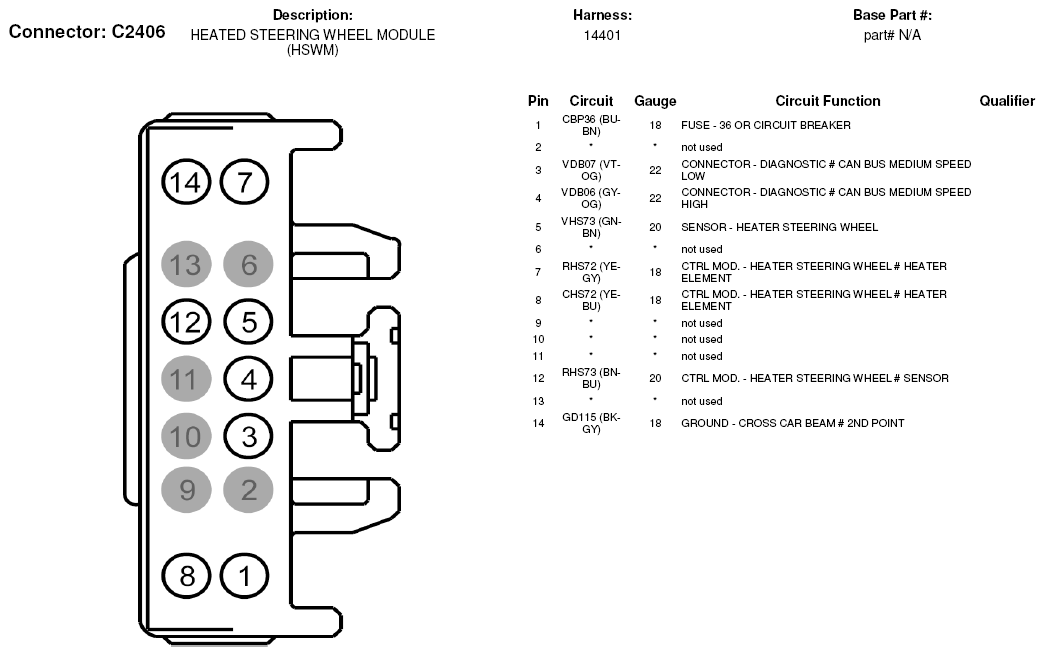

Fig 1: Heated Steering Wheel Module Connector End View (C2406)
G07327212Courtesy of FORD MOTOR CO.
