Removal And Installation: Radiator: Notes

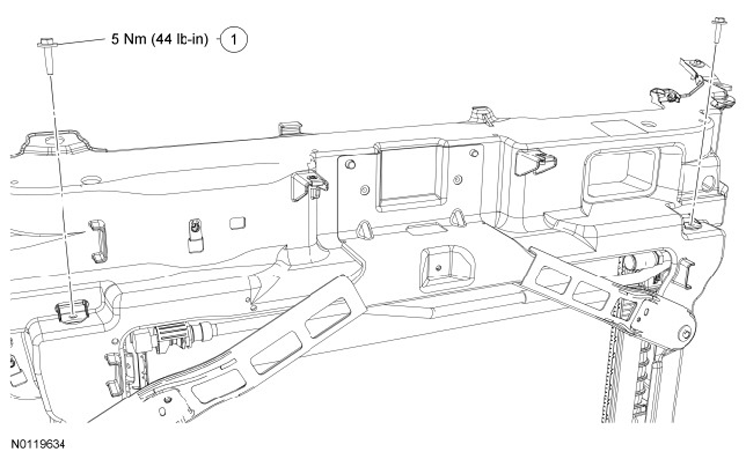

Fig 1: Upper Radiator Support Bracket Bolts With Torque Specifications
G07399088Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 W505425 Upper radiator support bracket bolts (2 required)

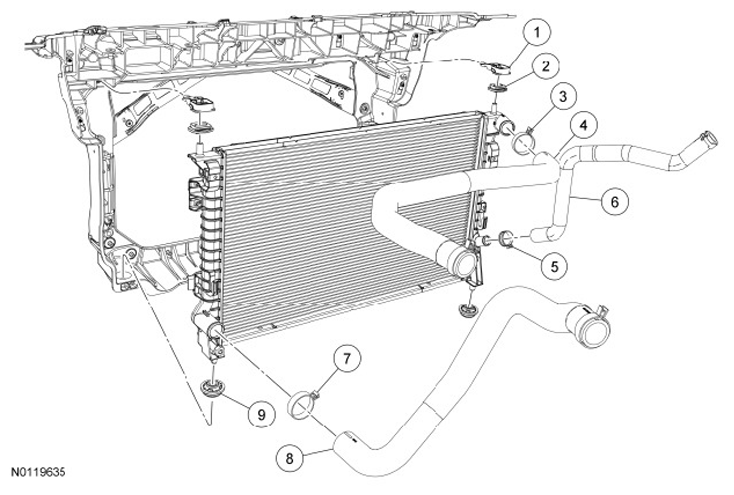

Fig 2: Exploded View Of Radiator
G07399089Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 8A194 Upper radiator support bracket (2 required)
2 8124A Upper radiator insulator (2 required)
3 W527376 Upper radiator hose clamp
4 8620 Upper radiator hose
5 15161 Degas bottle-to-radiator hose clamp
6 8C633 Degas bottle-to-radiator hose
7 W527376 Lower radiator hose clamp
8 8286 Lower radiator hose
9 8124B Lower radiator insulator (2 required)

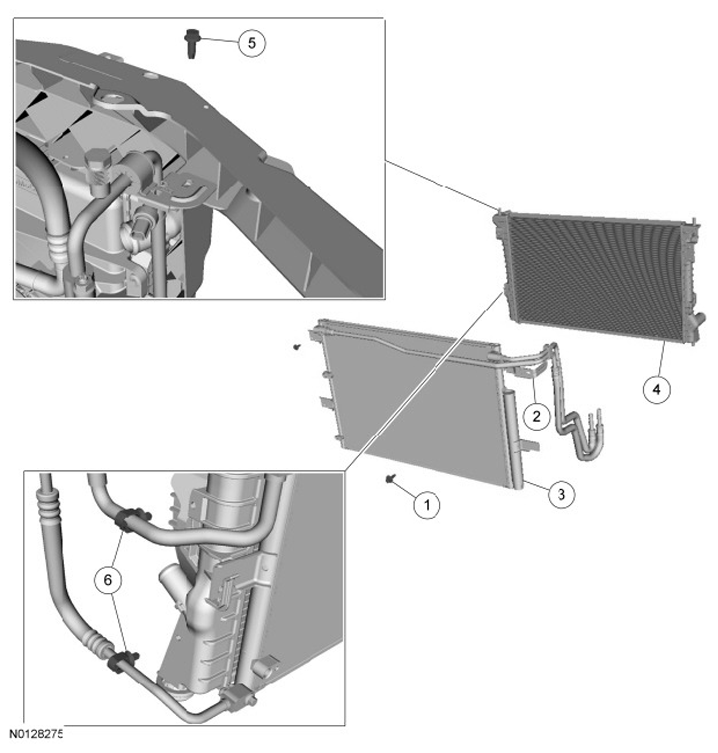

Fig 3: Identifying Radiator Components Location
G07399090Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 W503924 A/C condenser bolt - 10 Nm (89 lb-in) (2 required)
3 7B147 Transmission fluid cooler tube bracket
3 19710 A/C condenser
4 8005 Radiator
5 W707400 Compressor-to-condenser discharge line bracket bolt - 7 Nm (62 lb-in)
6 19D738 A/C line pushpins (2 required)
