Piston Diameter
NOTE:
Refer to the ENGINE MECHANICAL - 3.5L
or ENGINE MECHANICAL - 3.7L
for the specification.

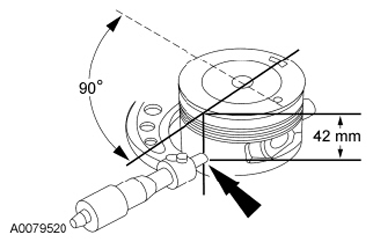

- Measure the piston diameter 90 degrees from the piston pin and 42 mm (1.65 in) down from the top of the piston at the point indicated.
