Fuel Level Sender: Notes

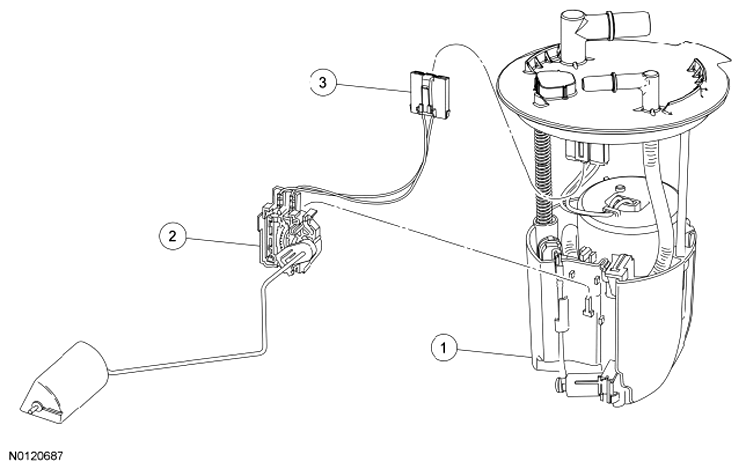

Fig 1: Identifying Fuel Level Sender, Fuel Pump Module And Fuel Level Sender Electrical Connector
G07402318Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 9H307 Fuel Pump (FP) module
2 9A299 Fuel level sender
3 - Fuel level sender electrical connector (part of 9A299)
