Fuel Pump Module: Material
ITEM SPECIFICATIONS CHART
| Item | Specification |
|---|---|
| Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (US); Motorcraft® SAE 5W-20 Super Premium Motor Oil (Canada) XO-5W20-QSP (US); CXO-5W20-LSP12 (Canada); or equivalent |
WSSM2C945-A |
NOTE:

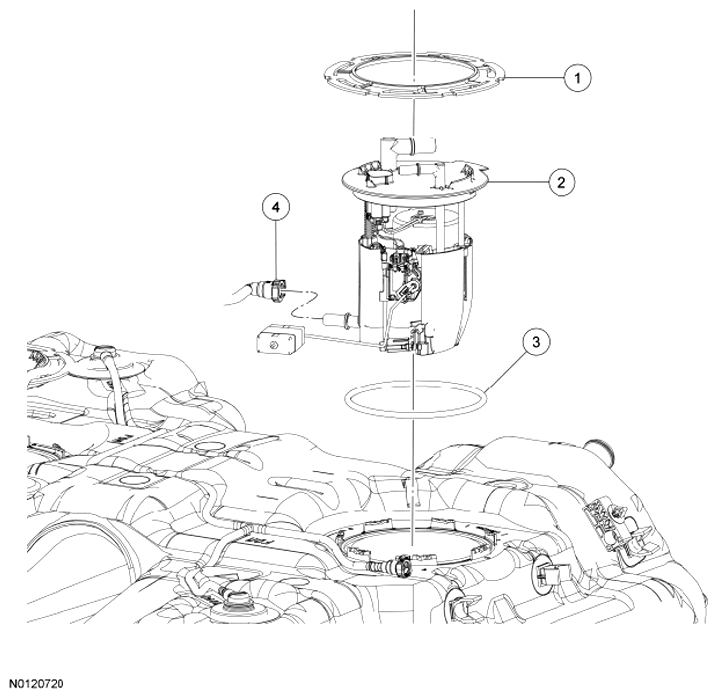

All-Wheel Drive (AWD) shown in the illustration, Front Wheel Drive (FWD) similar.
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 9C385 | Fuel level sensor lock ring |
| 2 | 9H307 | Fuel level sensor |
| 3 | 9417 | Fuel Pump (FP) module O-ring seal |
| 4 | - | Internal fuel tube-to FP module quick connect coupling (part of 9C318) (All-Wheel Drive vehicles only) |
