Home >> Ford >> 2011 >> Escape 2WD L4-2.5L Hybrid >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module >> C2041A Restraints Control Module (RCM)
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

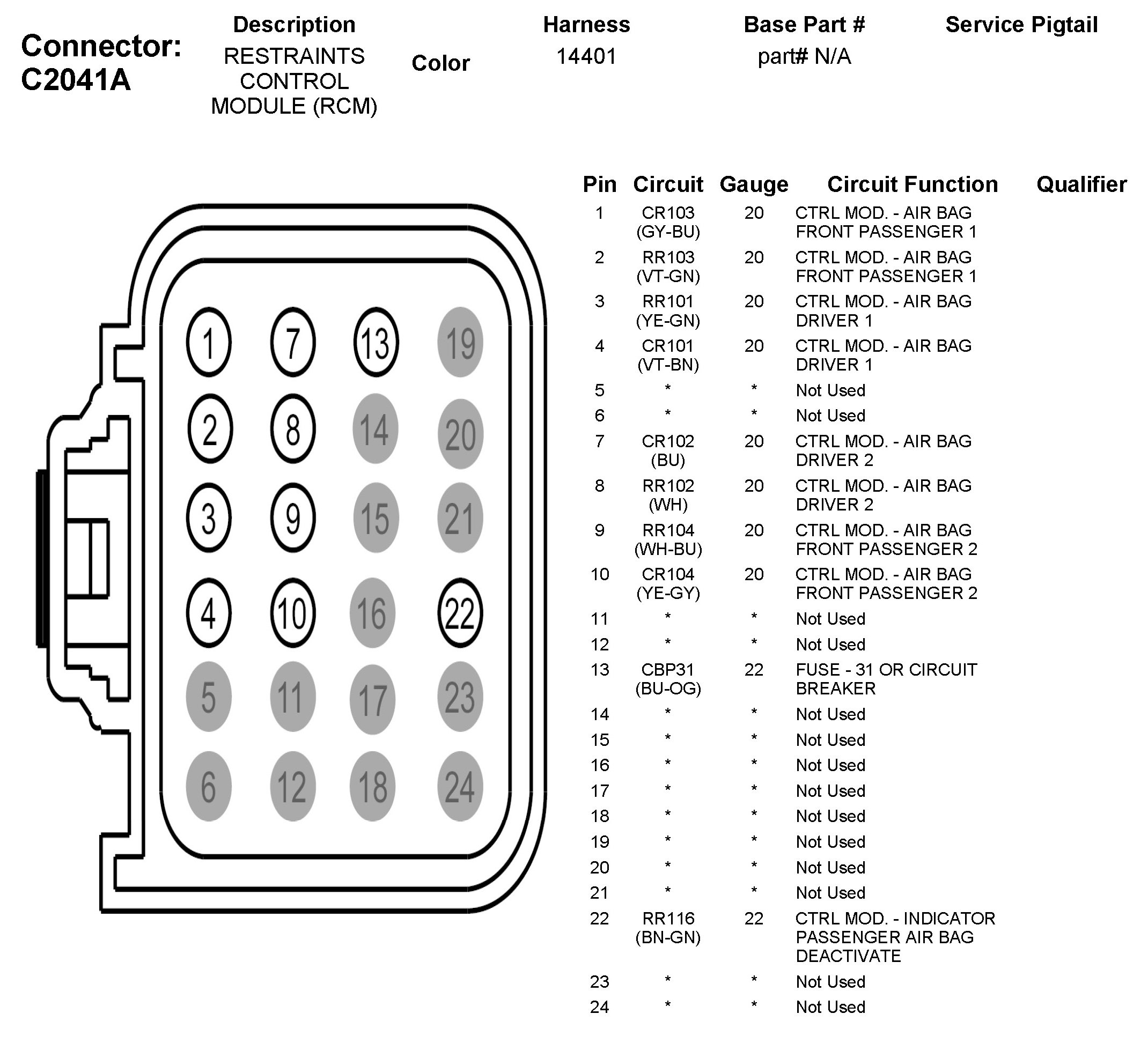

C2041A Restraints Control Module (RCM)
