LEMON Manuals: Even more car manuals for everyone: 1960-2025
Home >> Ford >> 2011 >> Escape 2WD L4-2.5L Hybrid >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering Control Module >> C2231A Power Steering Control Module (PSCM)
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

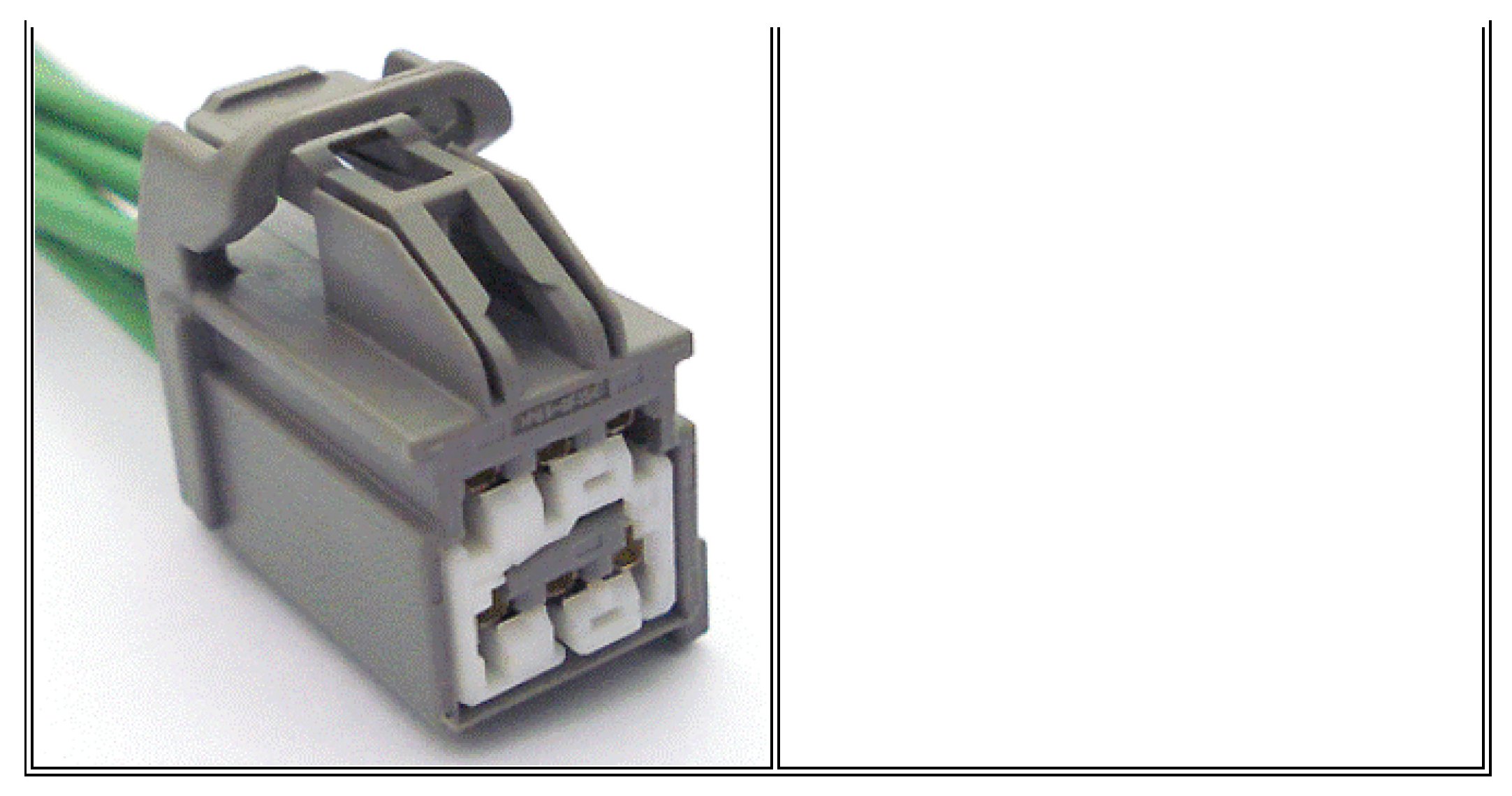

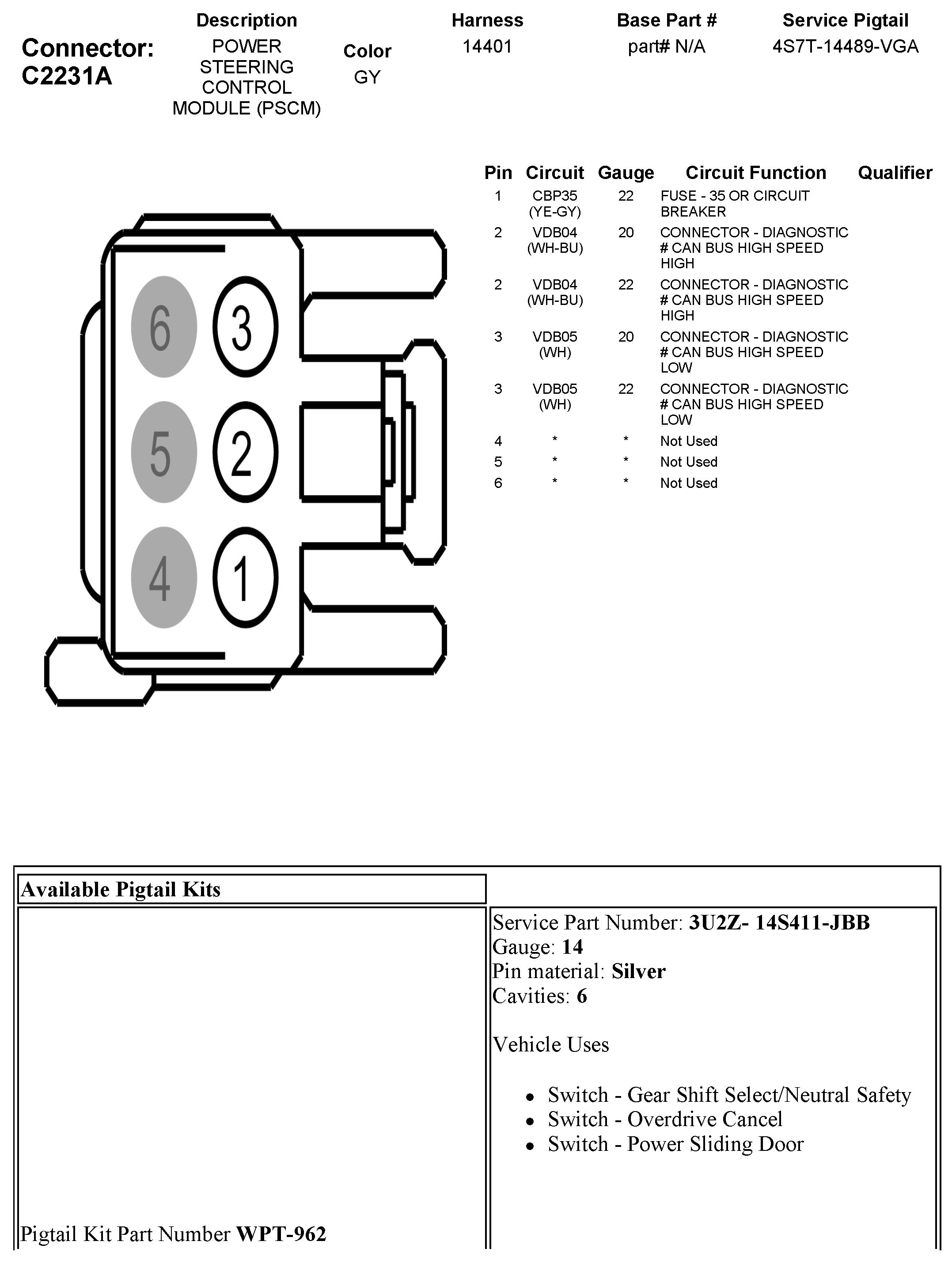

C2231A Power Steering Control Module (PSCM)
