Connector Locations

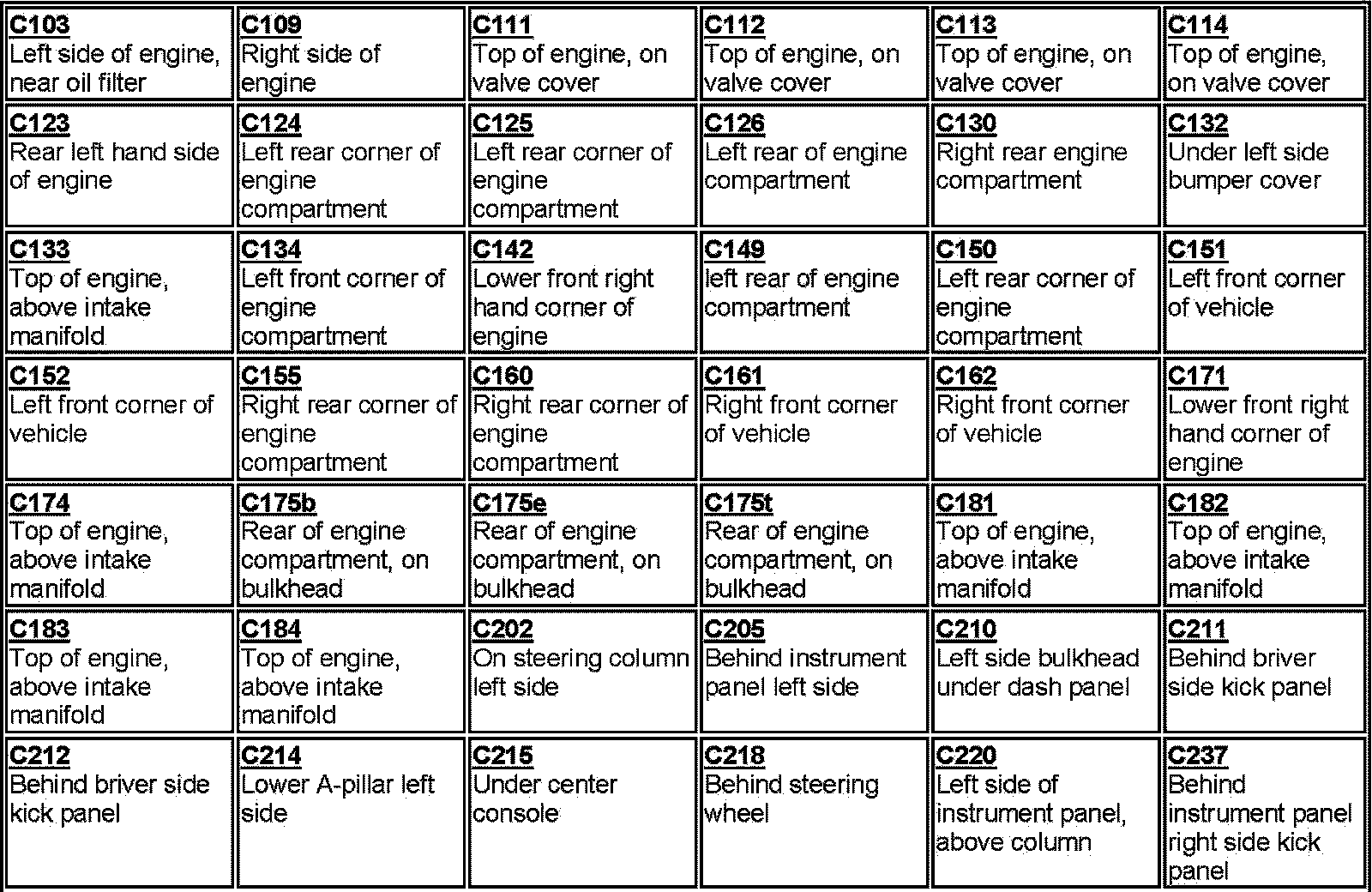

C103-C237:

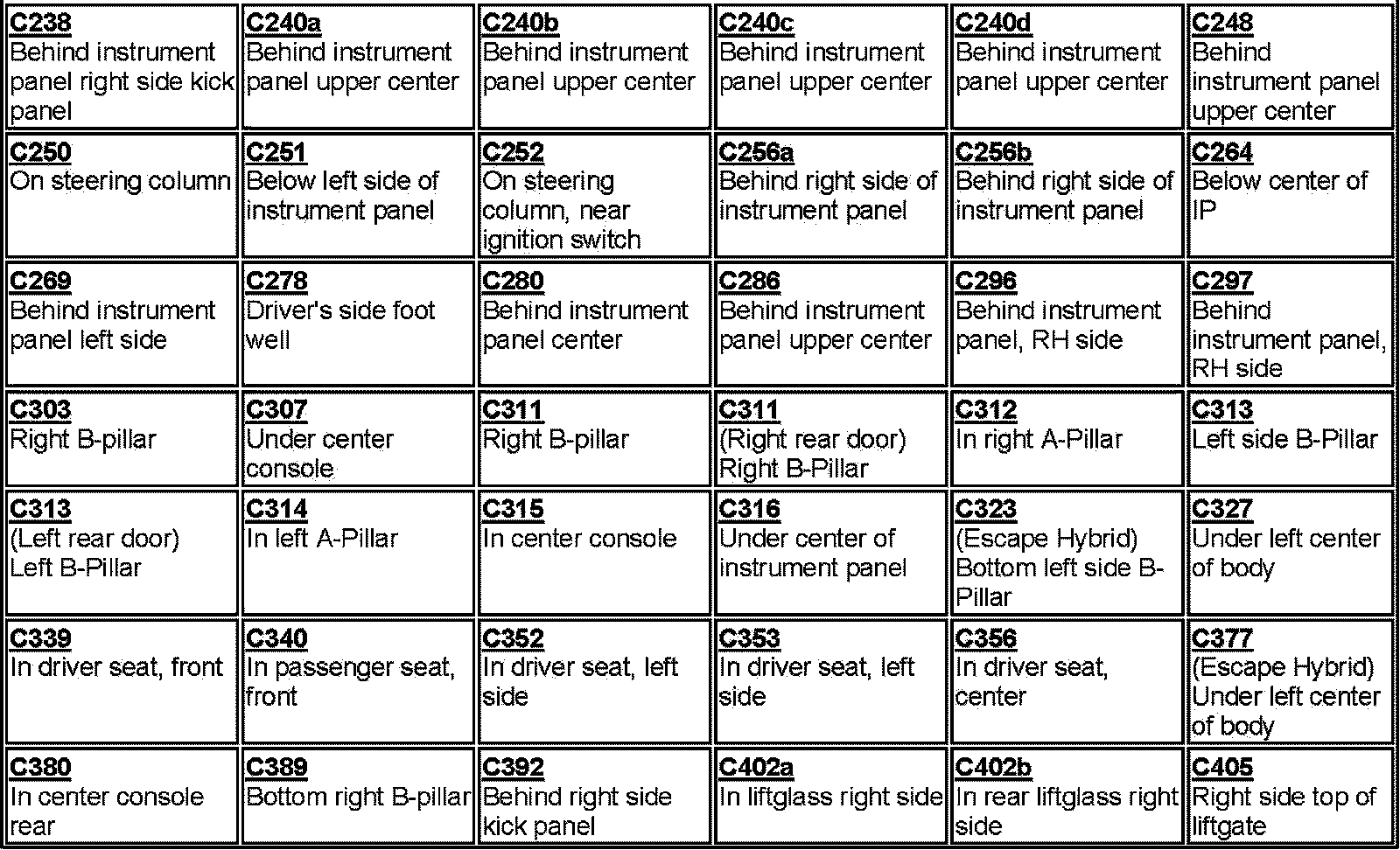

C238-C405:

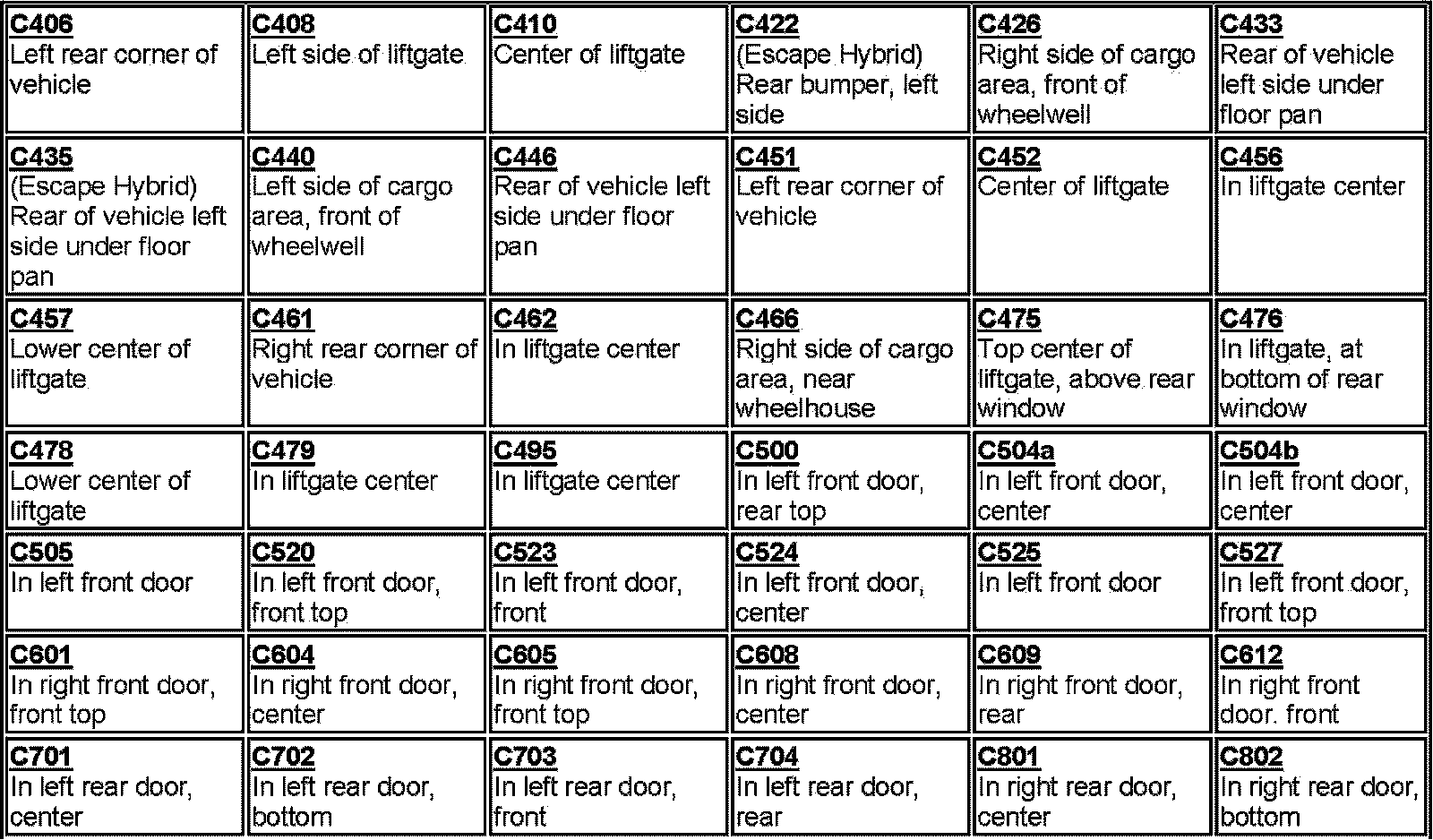

C406-C802:

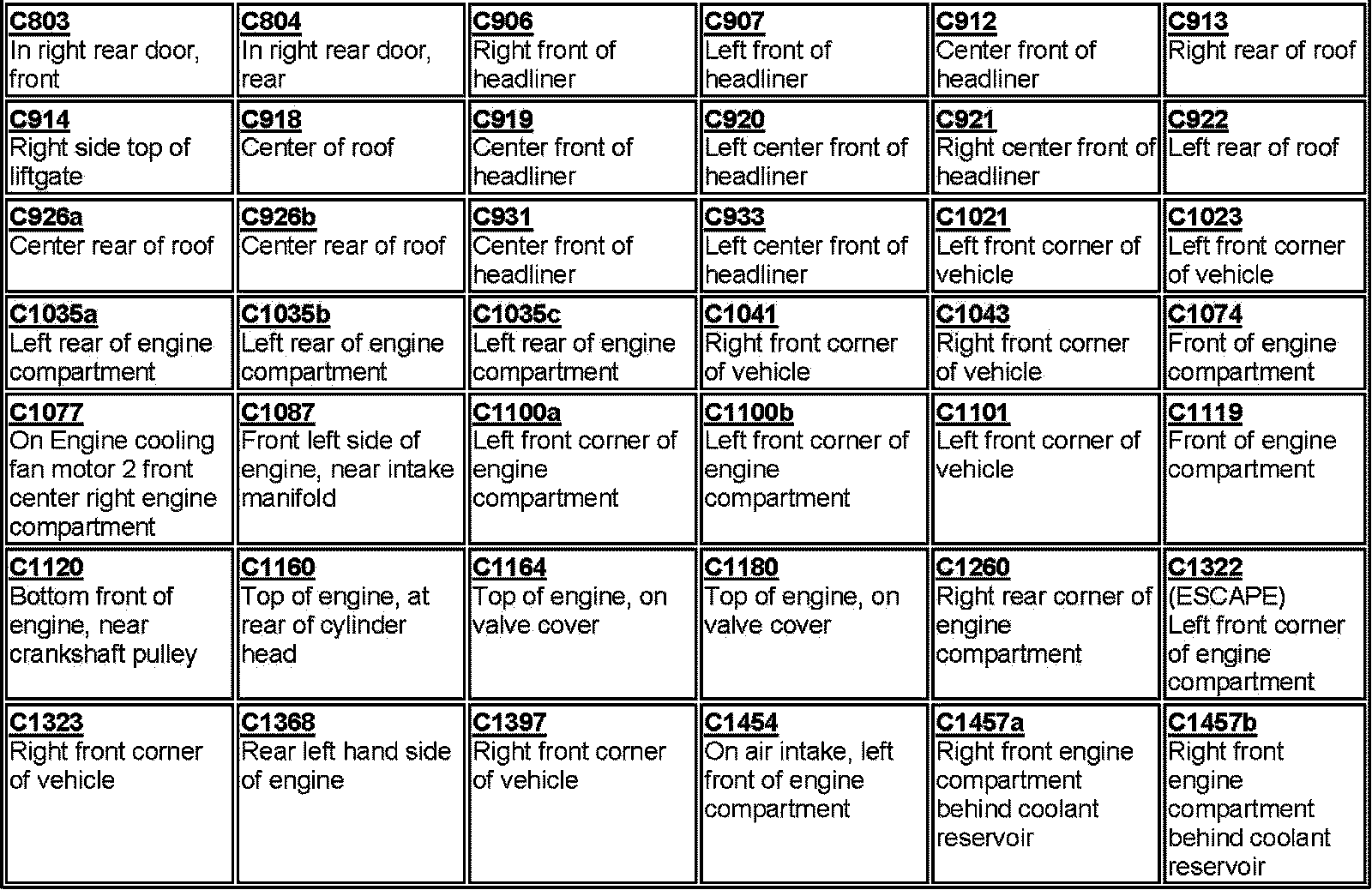

C803-C1457b:

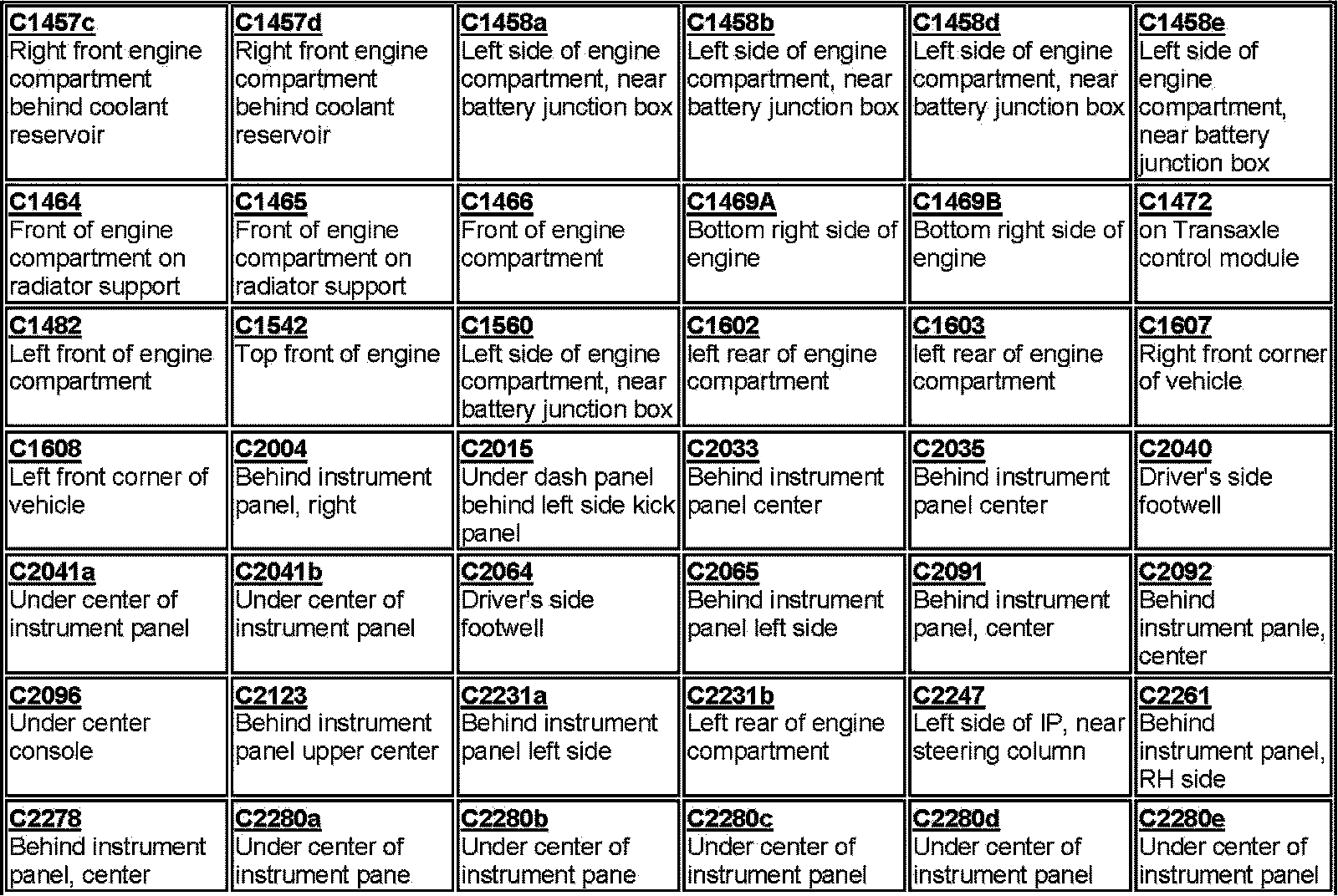

C1457c-C2280e:

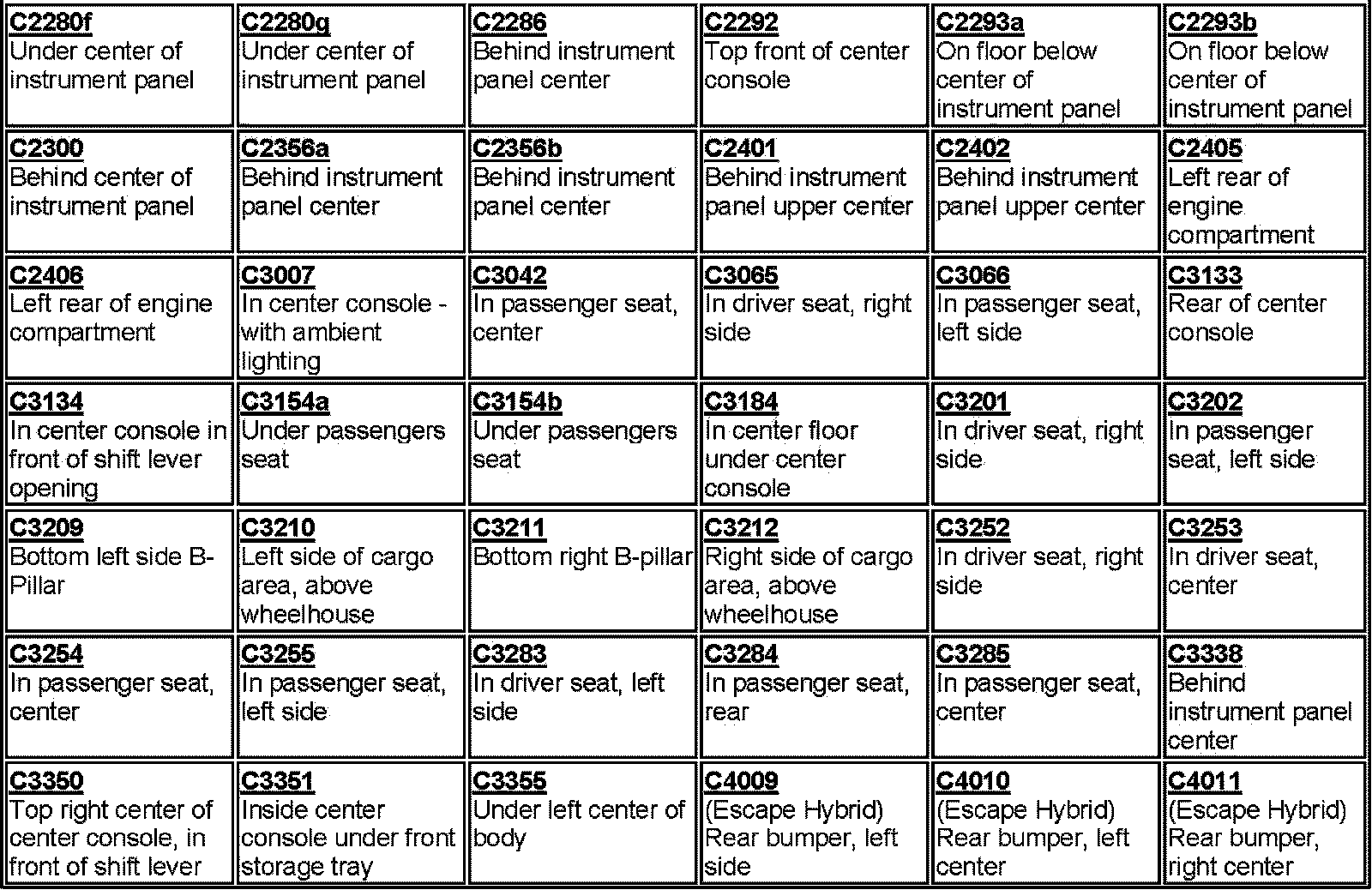

C2280f-C4011:

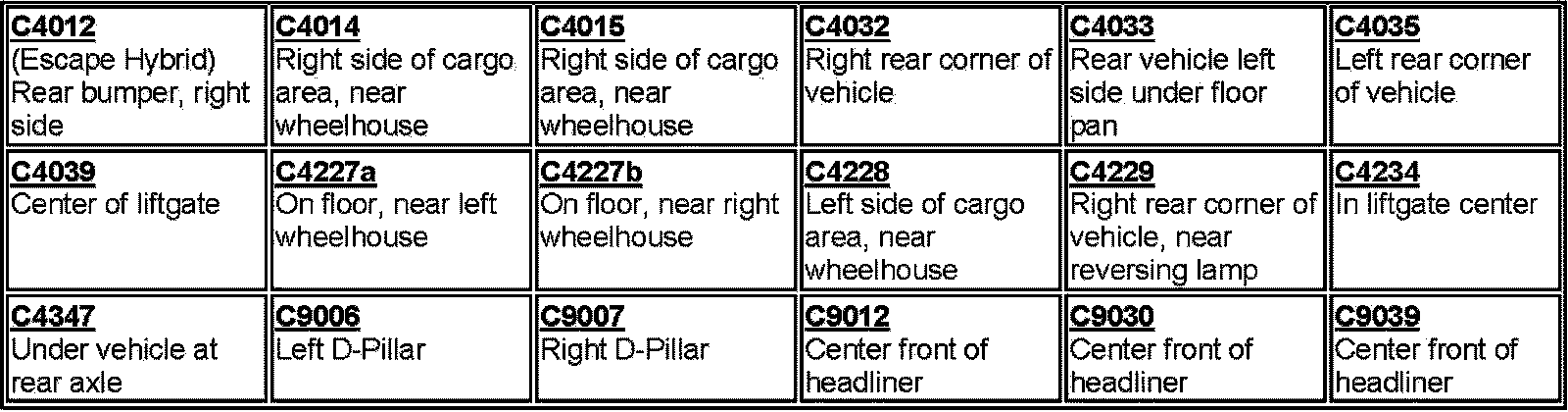

C4012-C9039:
