Test B: Powertrain Control Module (PCM) Power Relay

PINPOINT TEST B: POWERTRAIN CONTROL MODULE (PCM) POWER RELAY

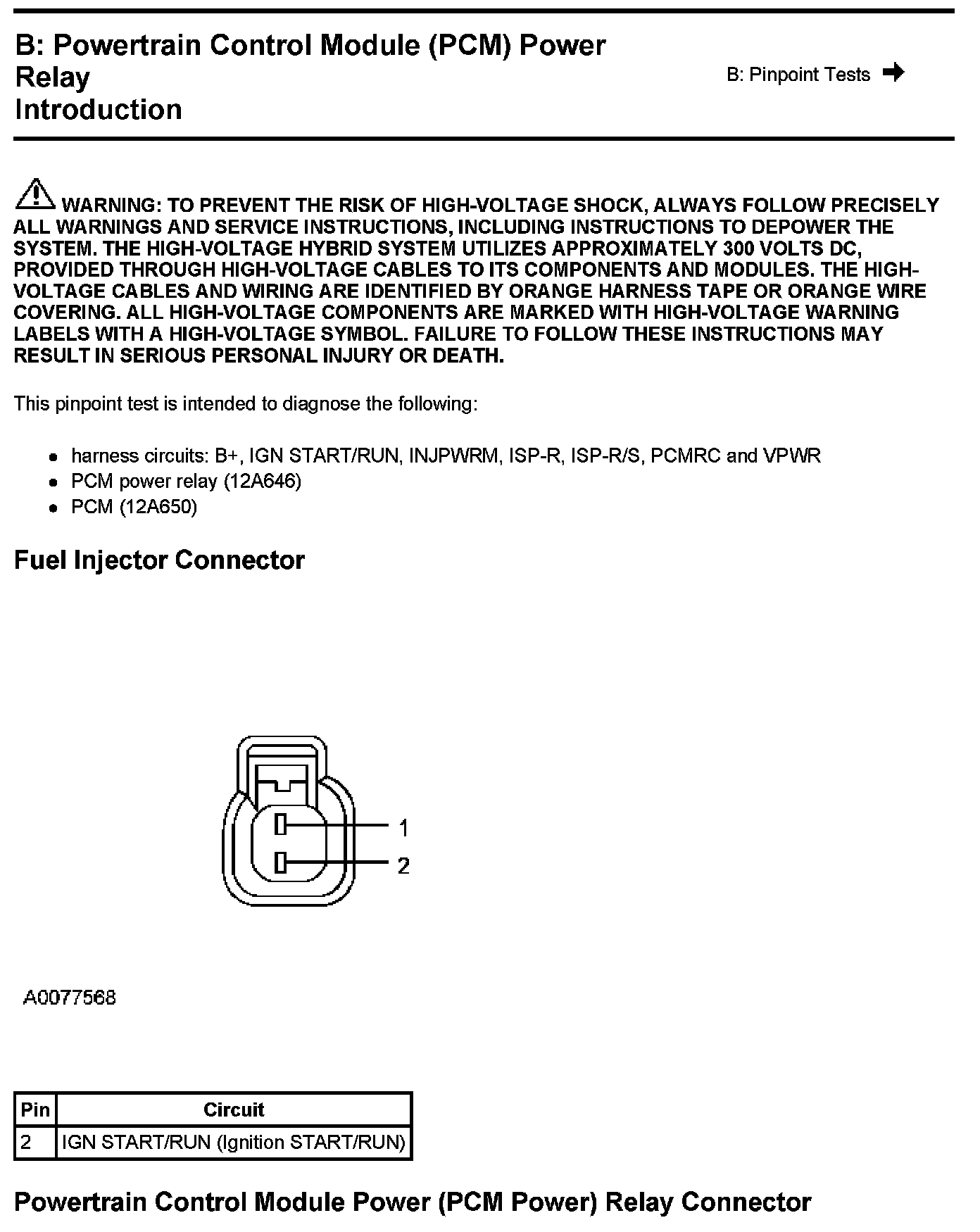

Warning, Fuel Injector Connector And Powertrain Control Module Power(PCM Power) Relay Connector:

Powertrain Control Module Power(PCM Power) Relay Connector, SJB-A Connector And Powertrain Control Module(PCM) Connector:

Powertrain Control Module (PCM) Connector Continued:

B1-B2:

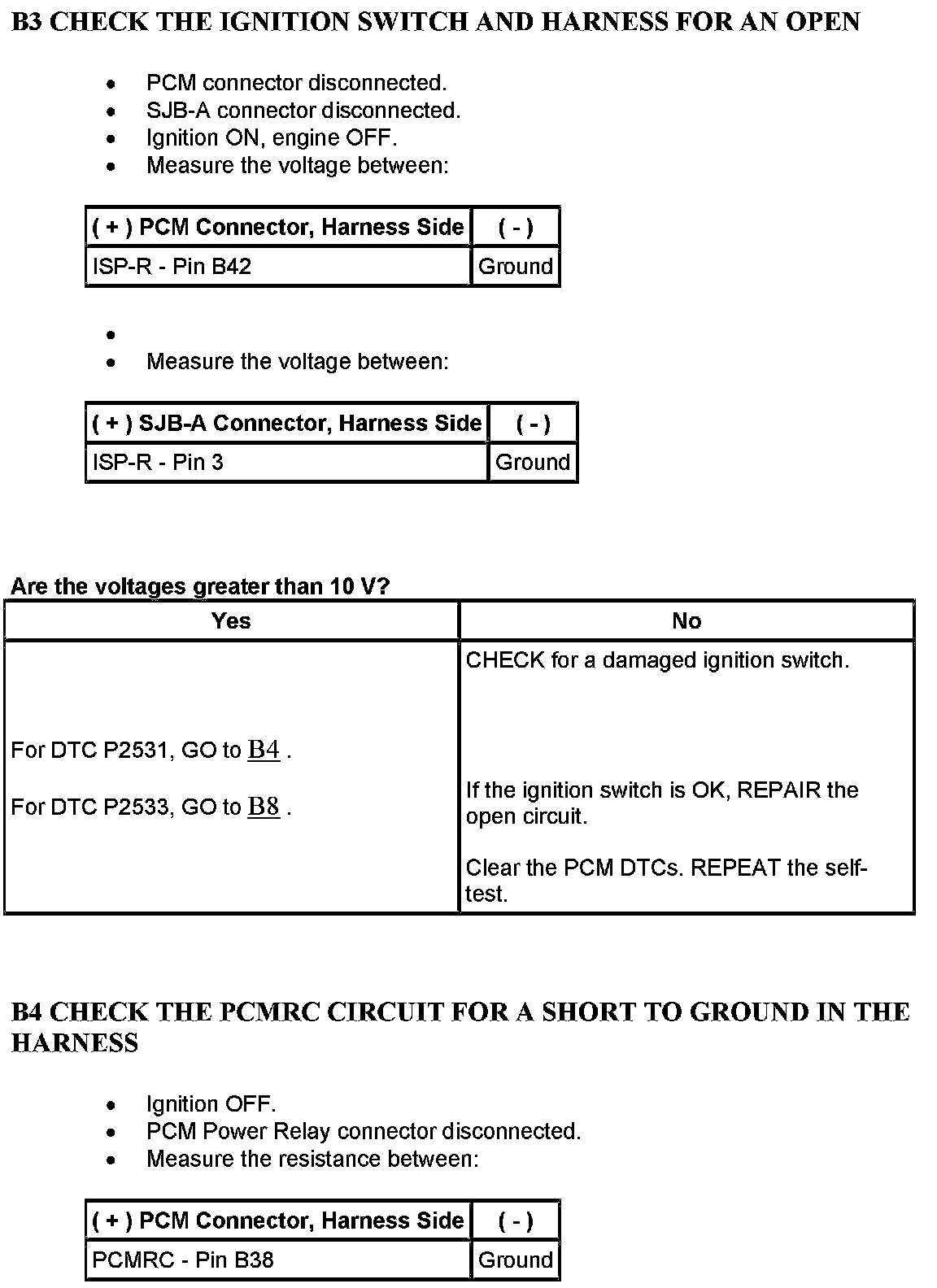

B3-B4:

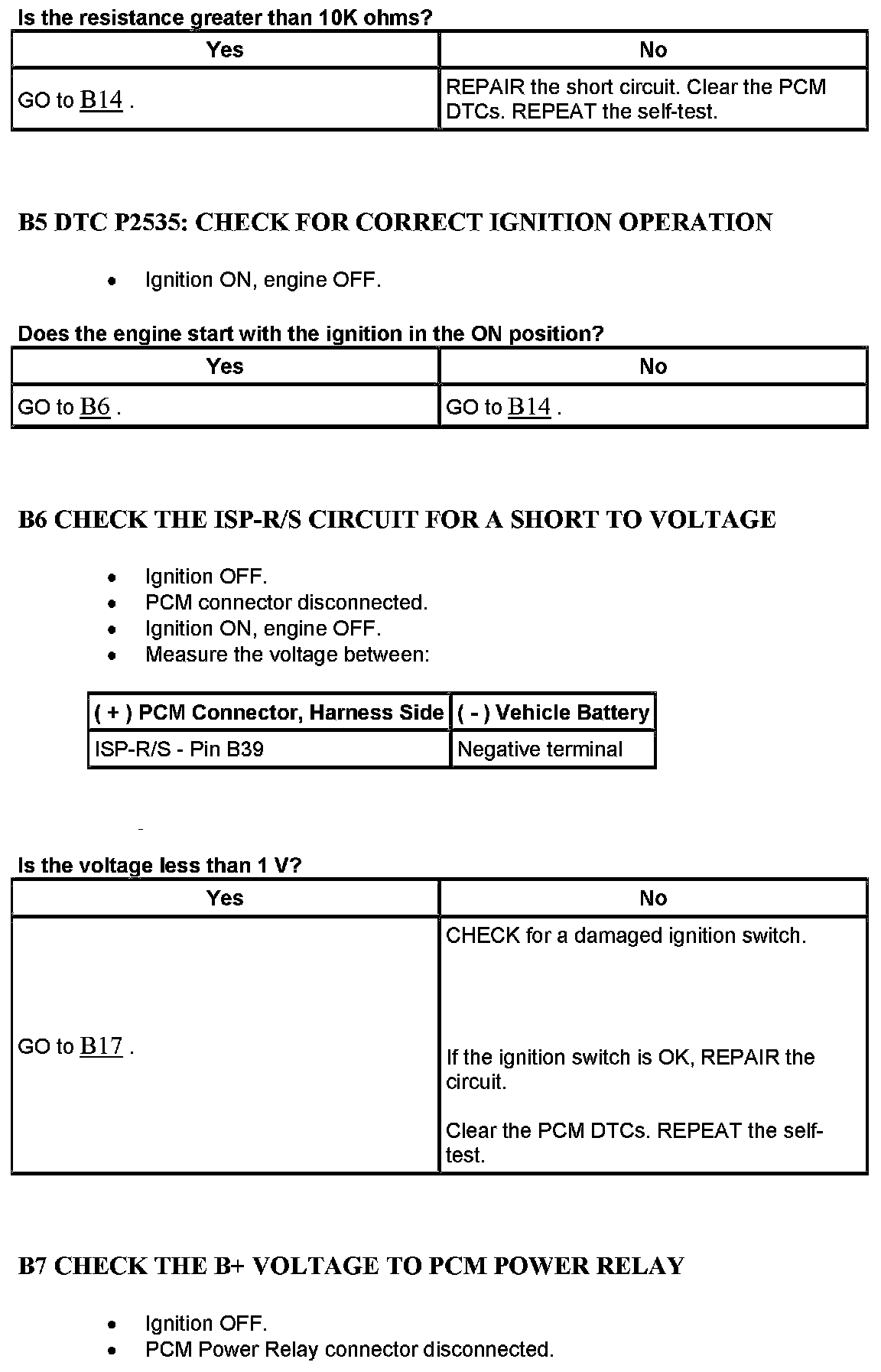

B4-B7:

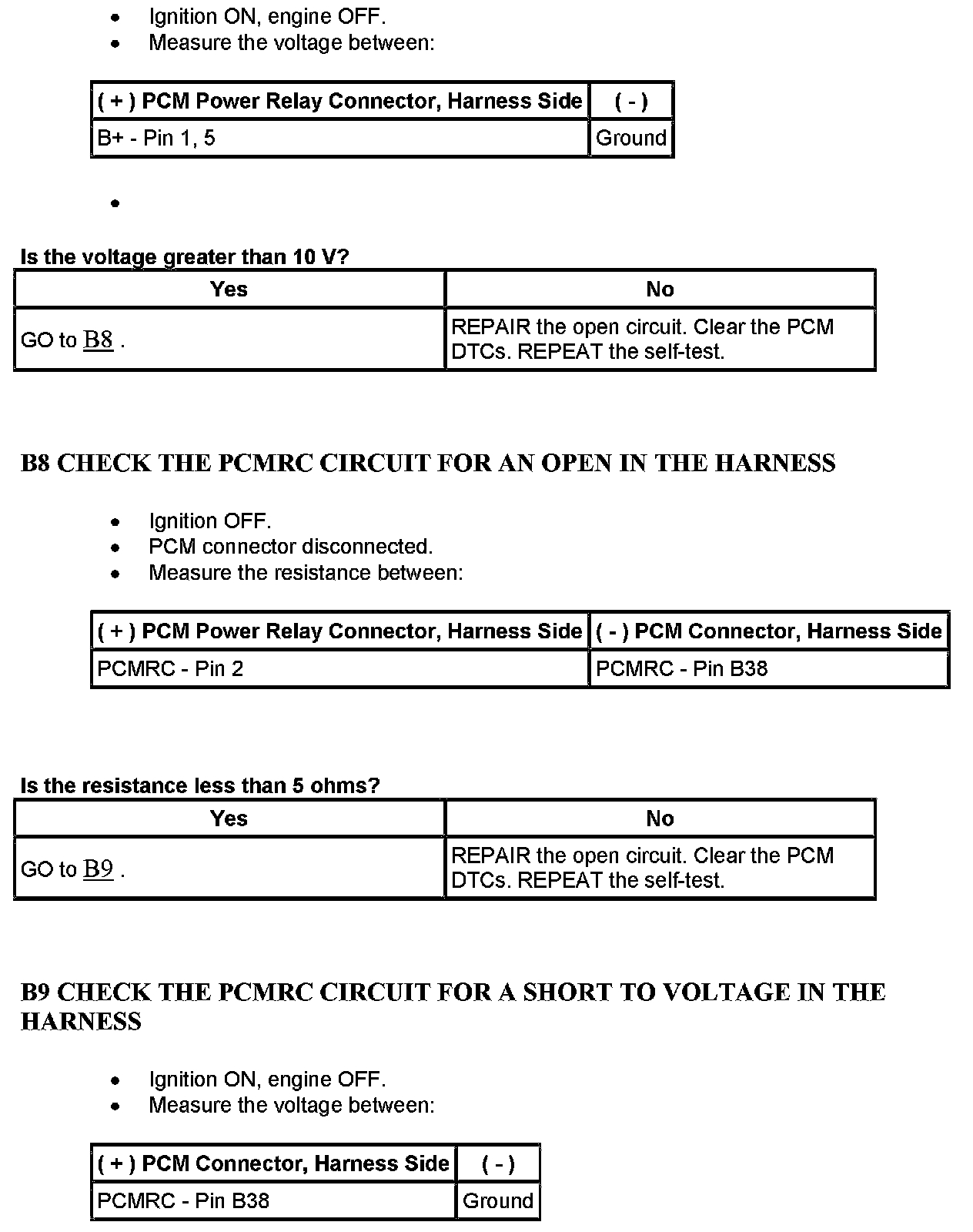

B7-B9:

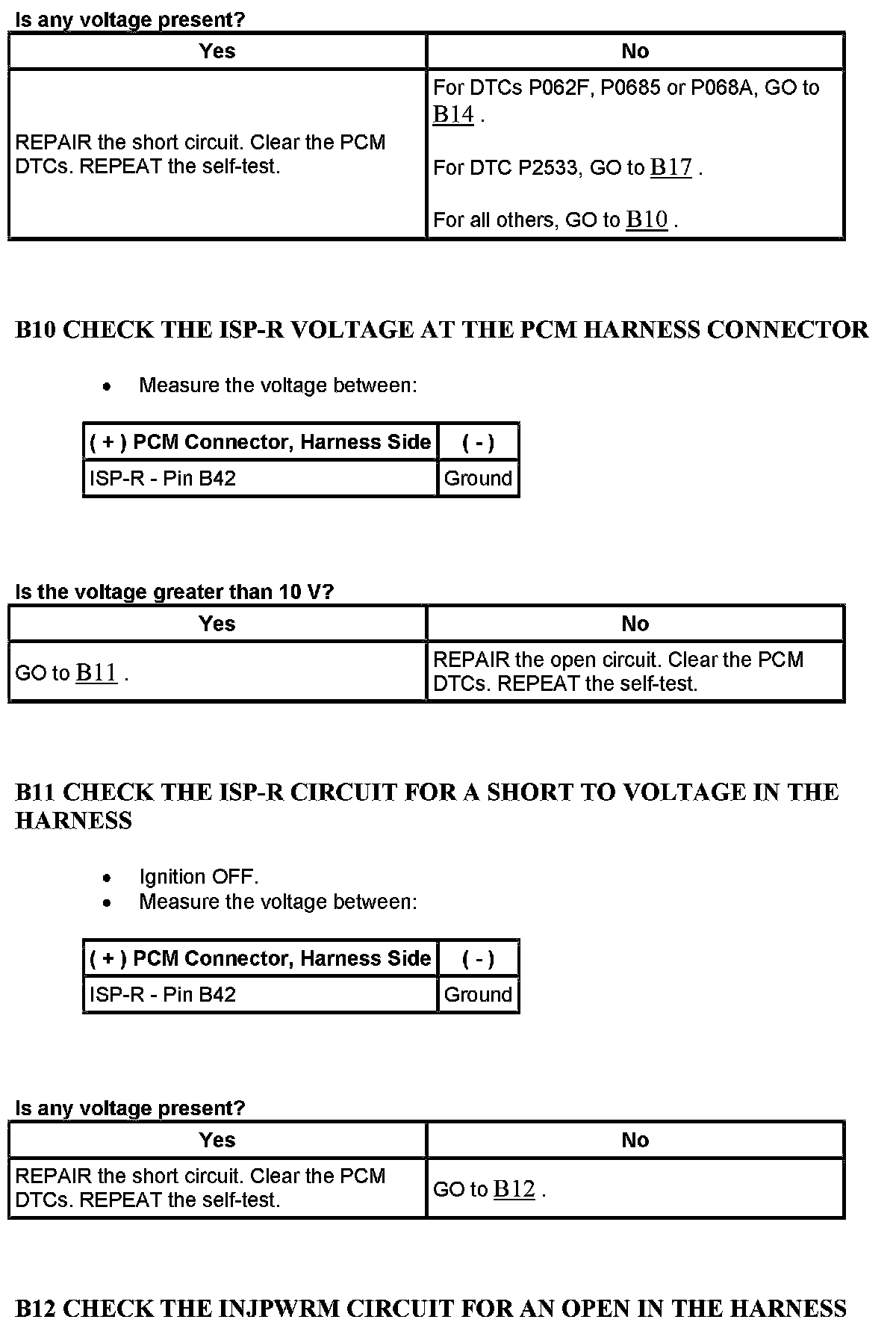

B9-B12:

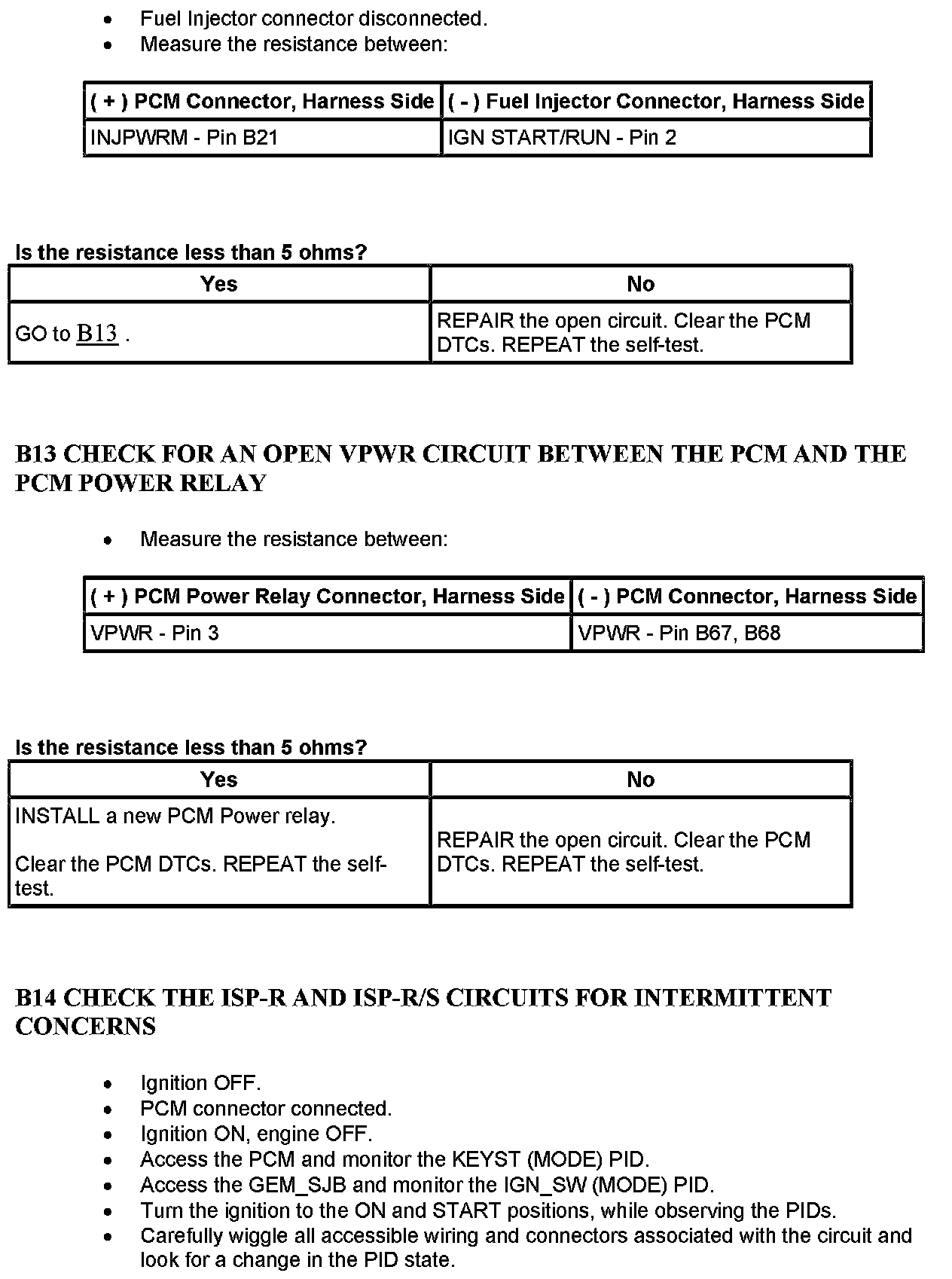

B12-B14:

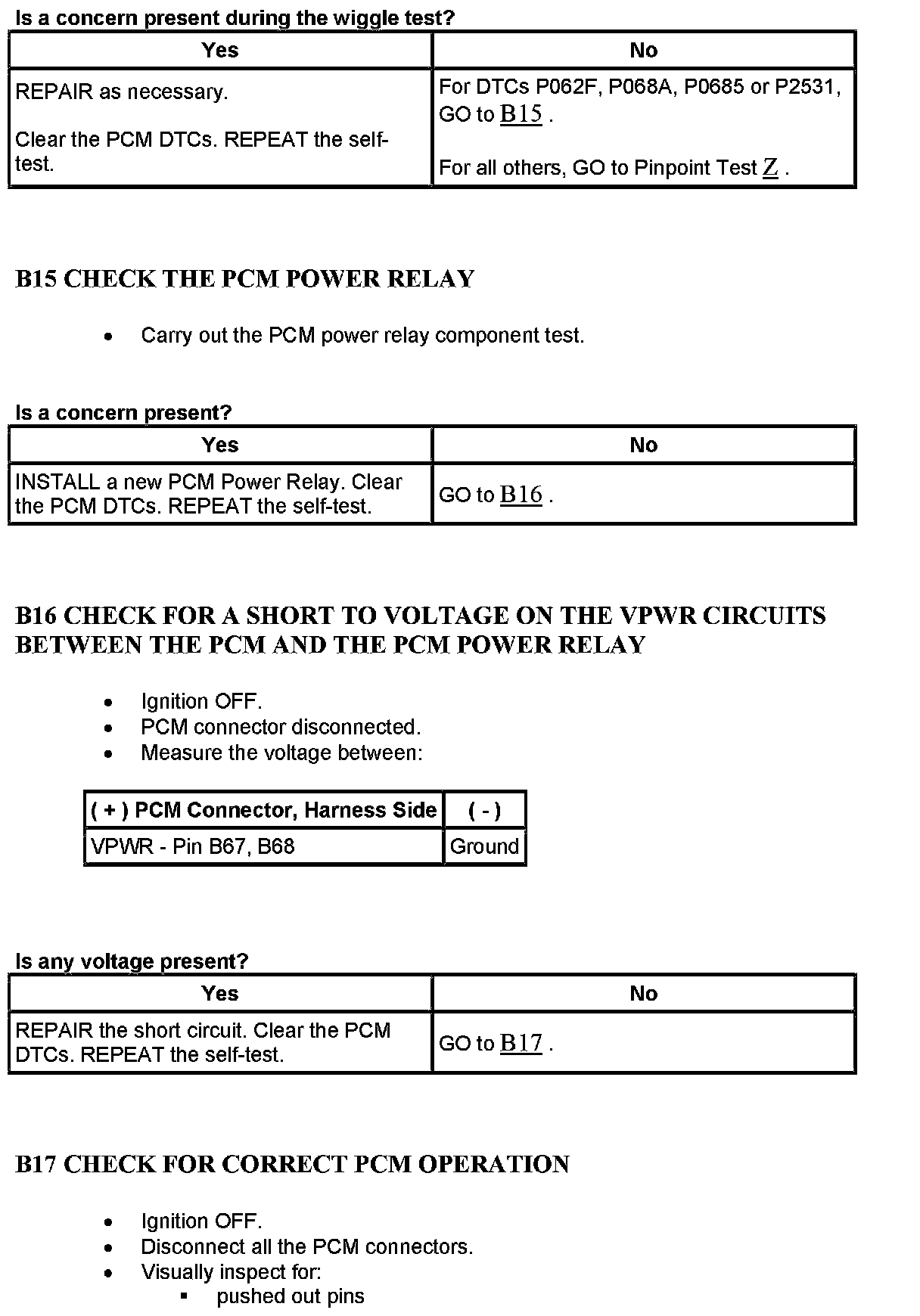

B14-B17:

B17 Continued:
