Test DC: Mass Air Flow (MAF) Sensor

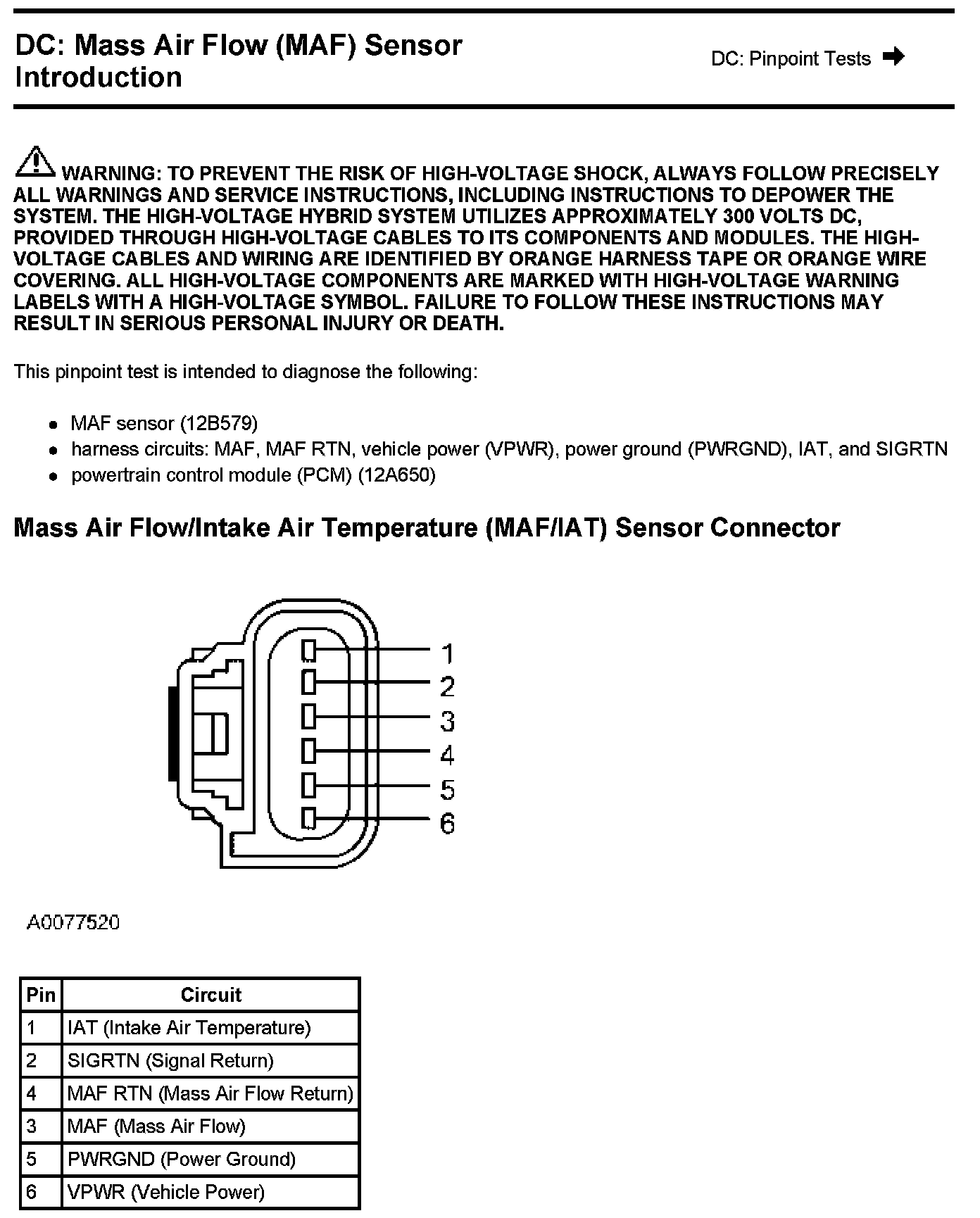

Warning And Mass Air Flow/Intake Air Temperature (MAF/IAT) Sensor Connector:

Powertrain Control Module (PCM) Connector:

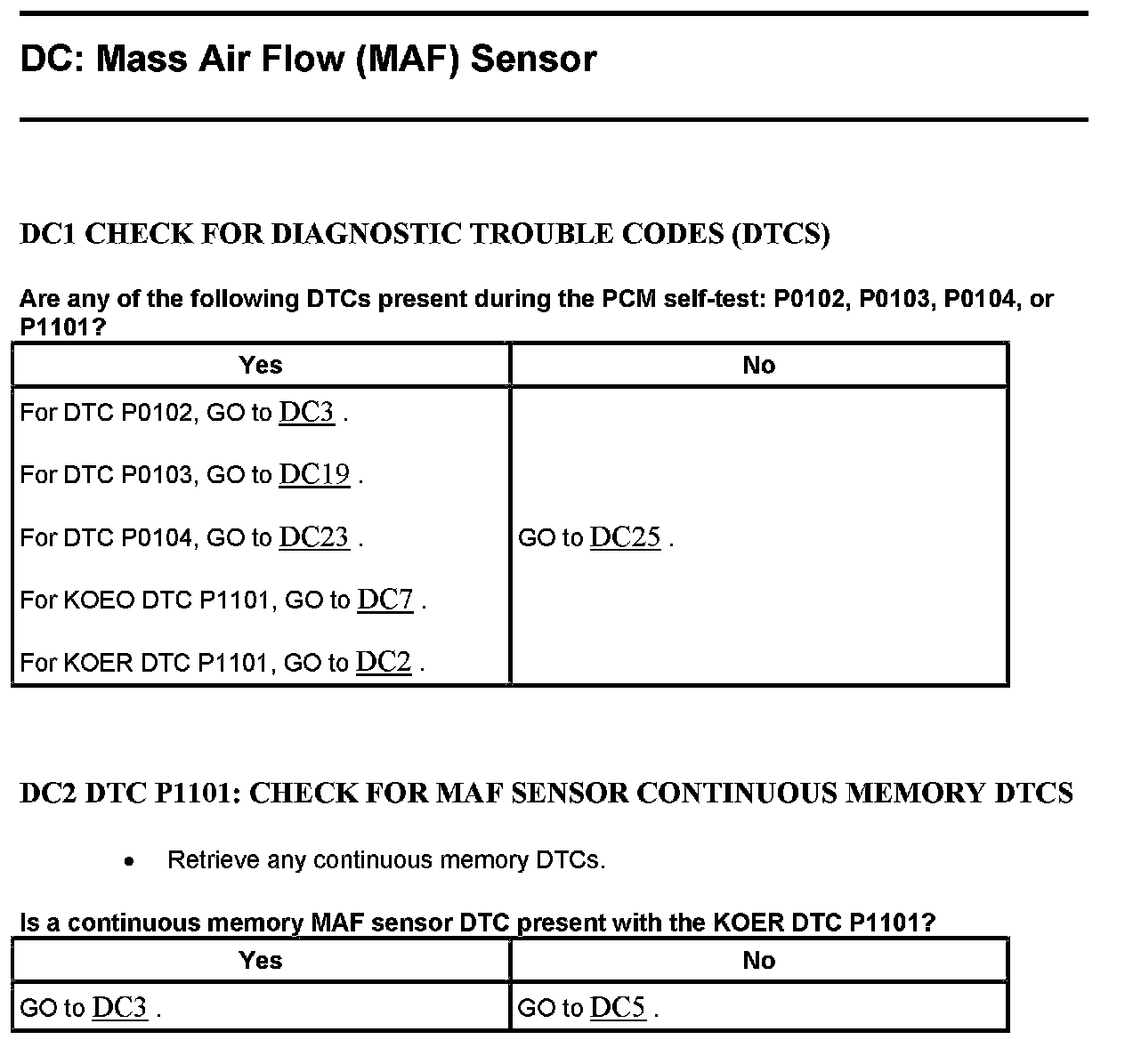

DC1-DC2:

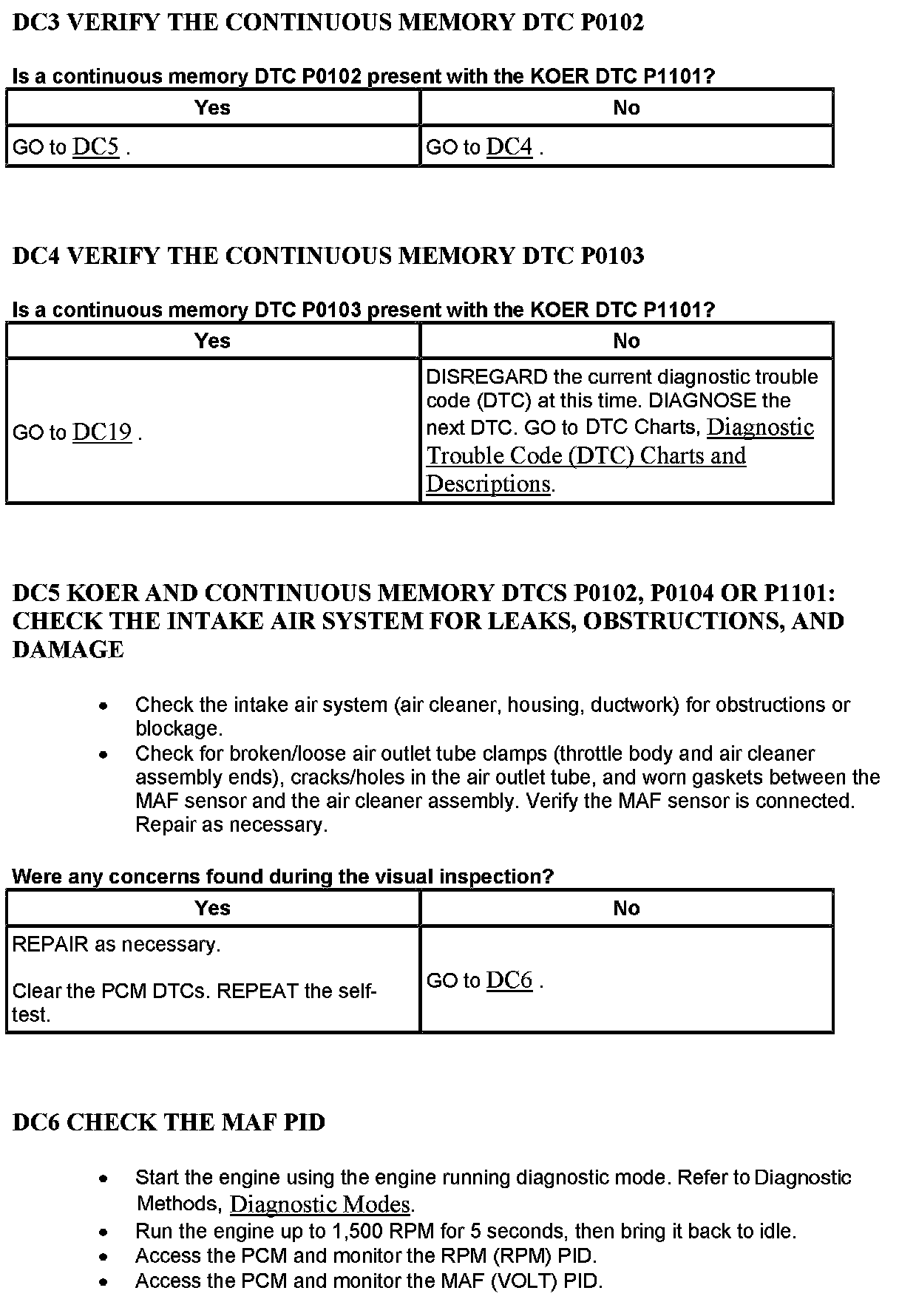

DC3-DC6:

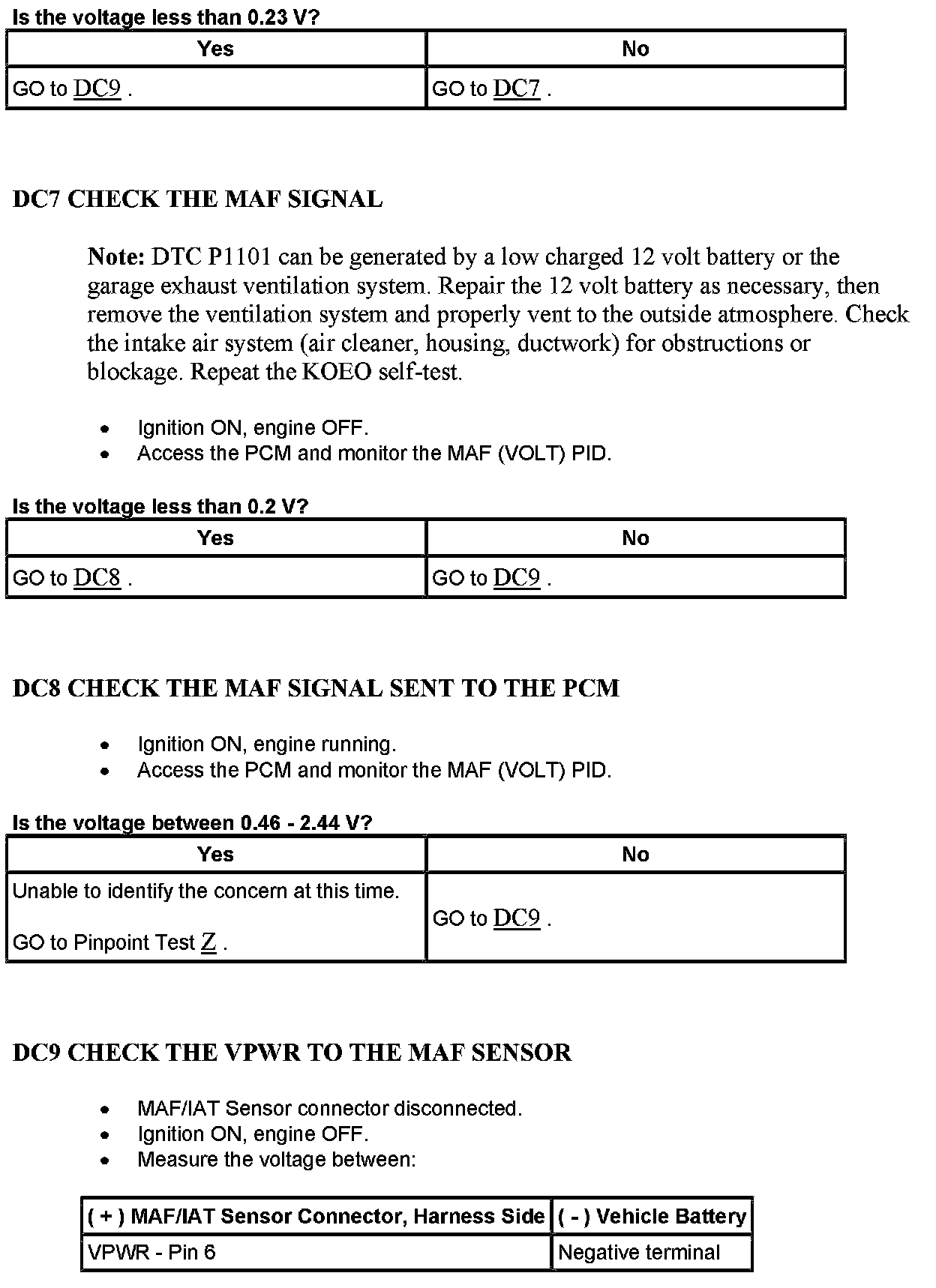

DC6-DC9:

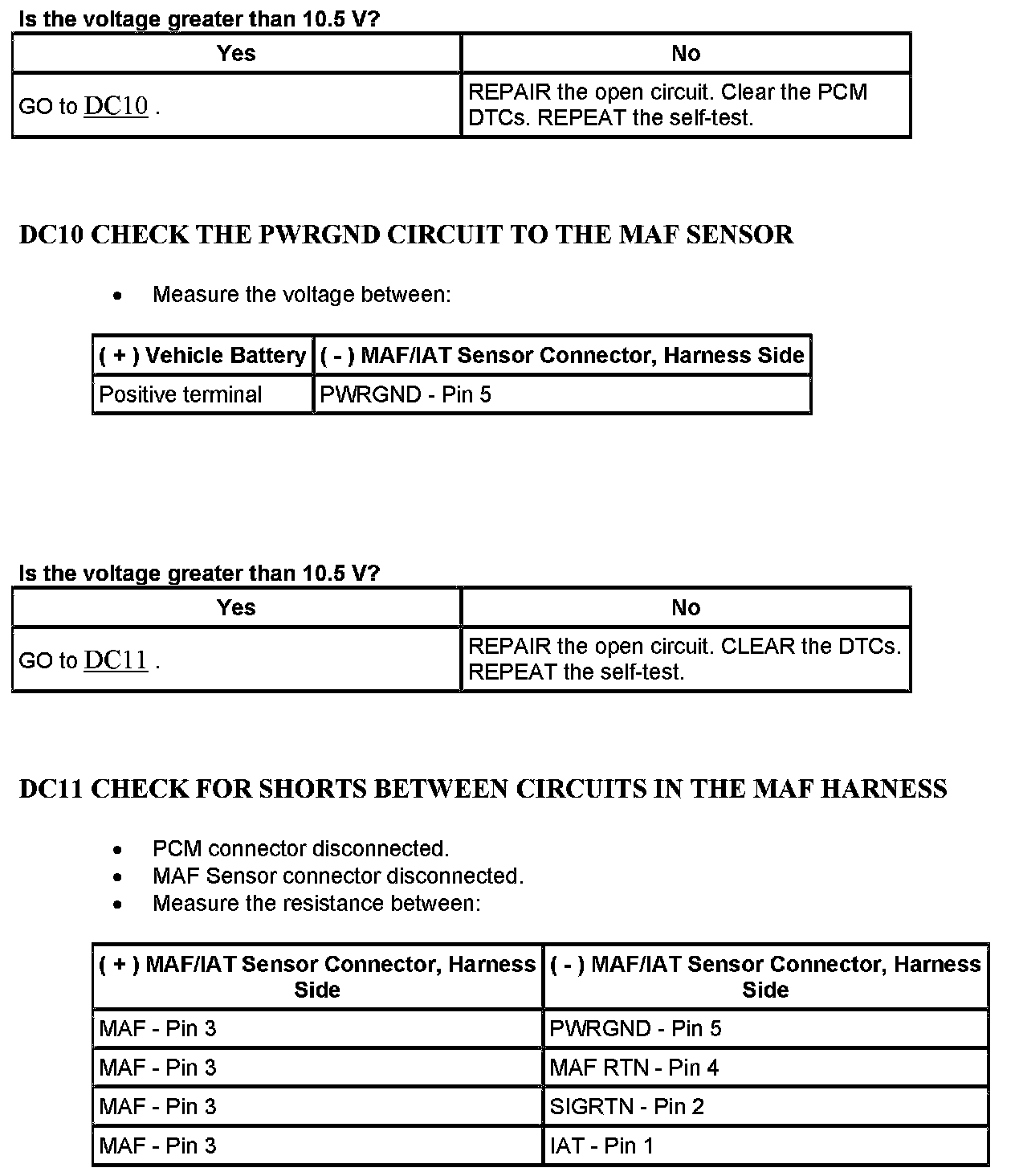

DC9-DC11:

DC11-DC14:

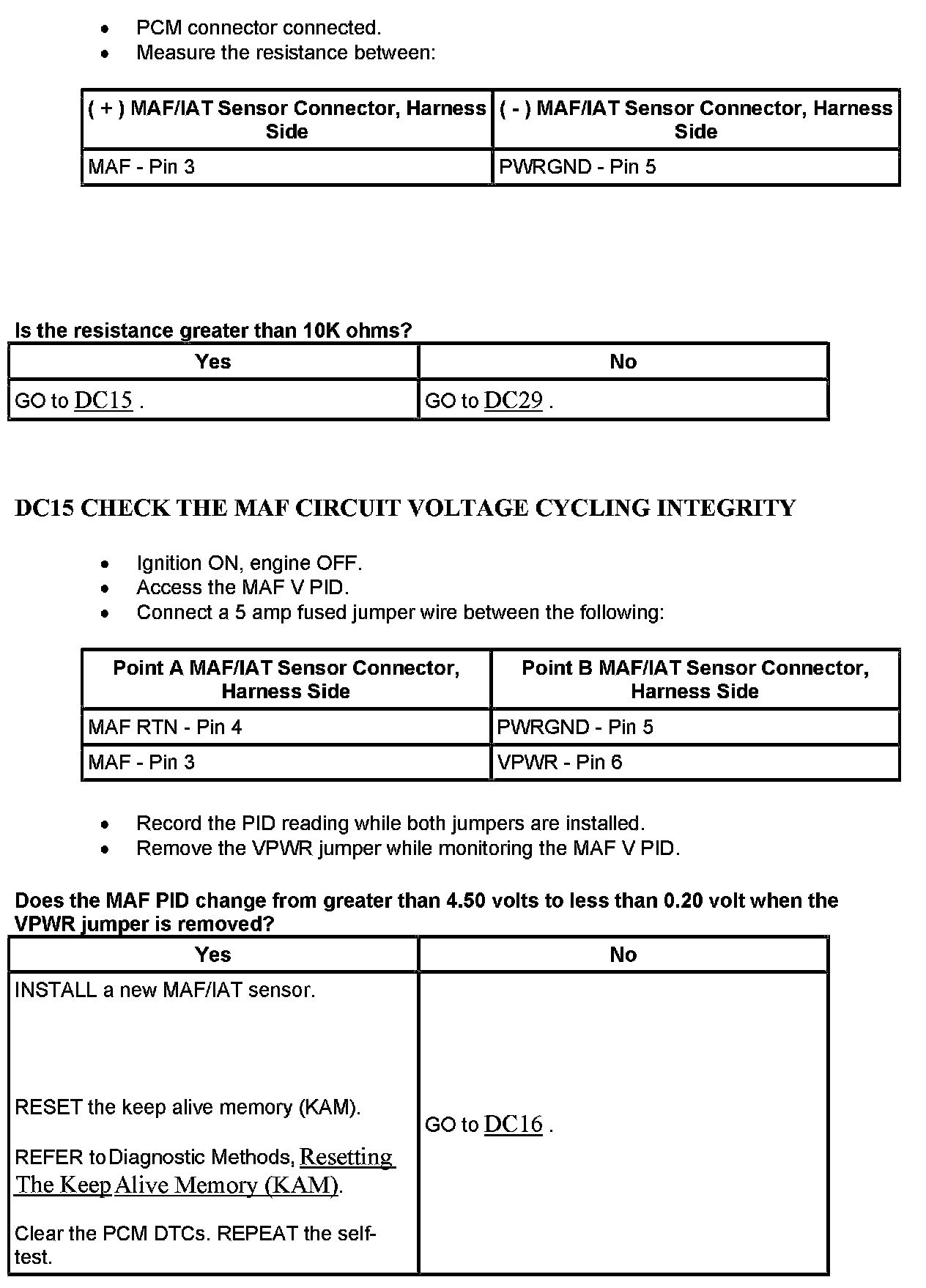

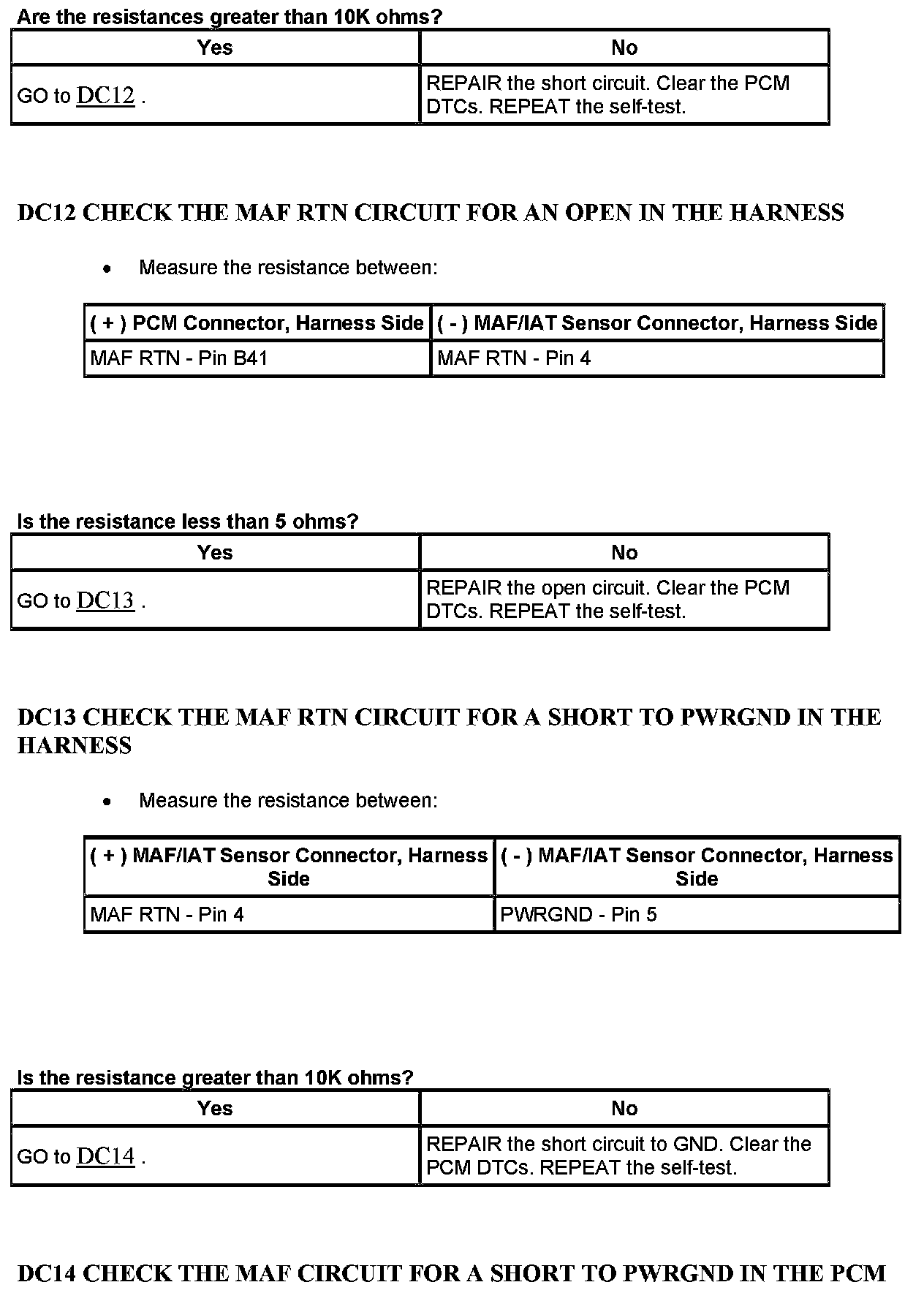

DC14-DC15:

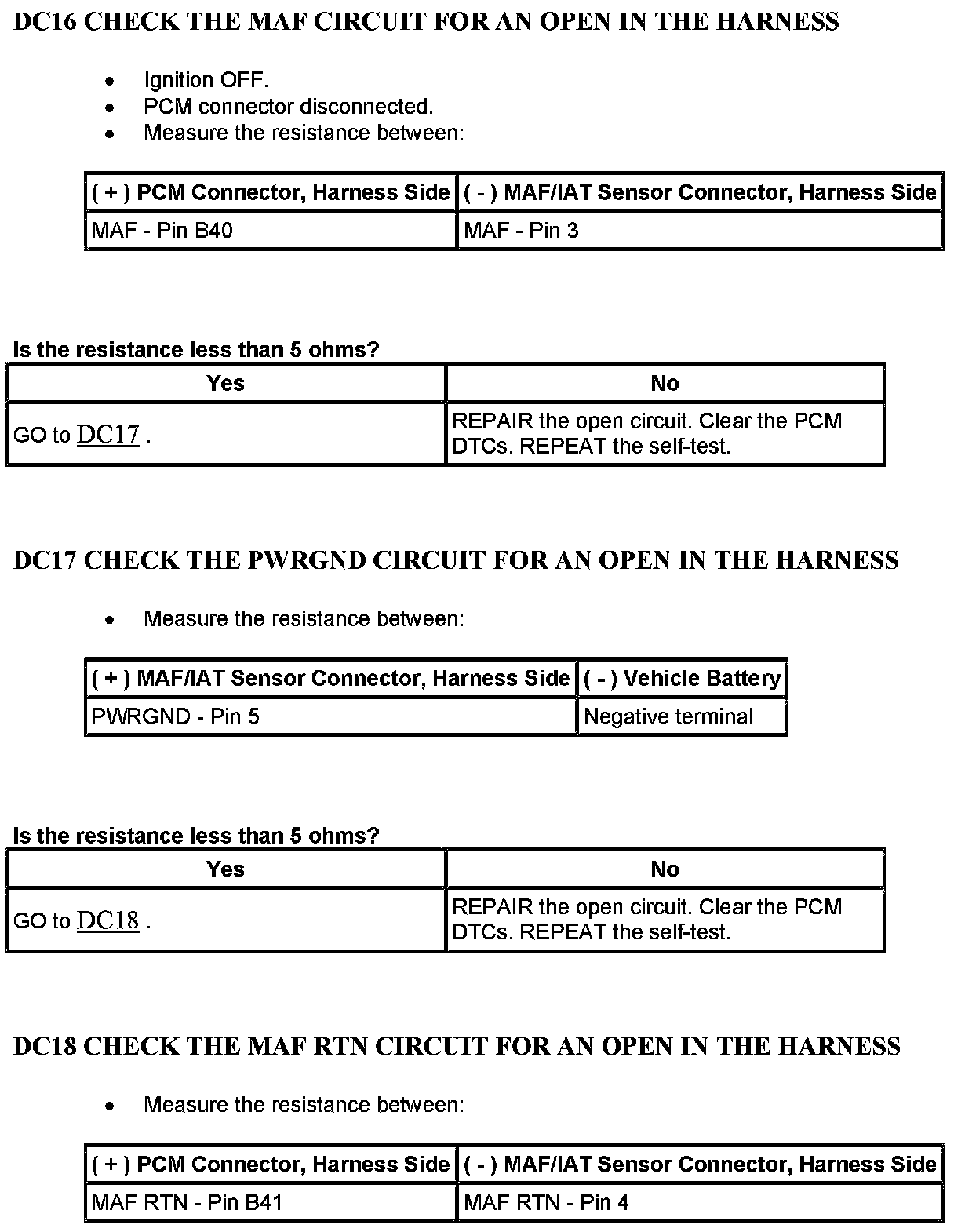

DC16-DC18:

DC18-DC21:

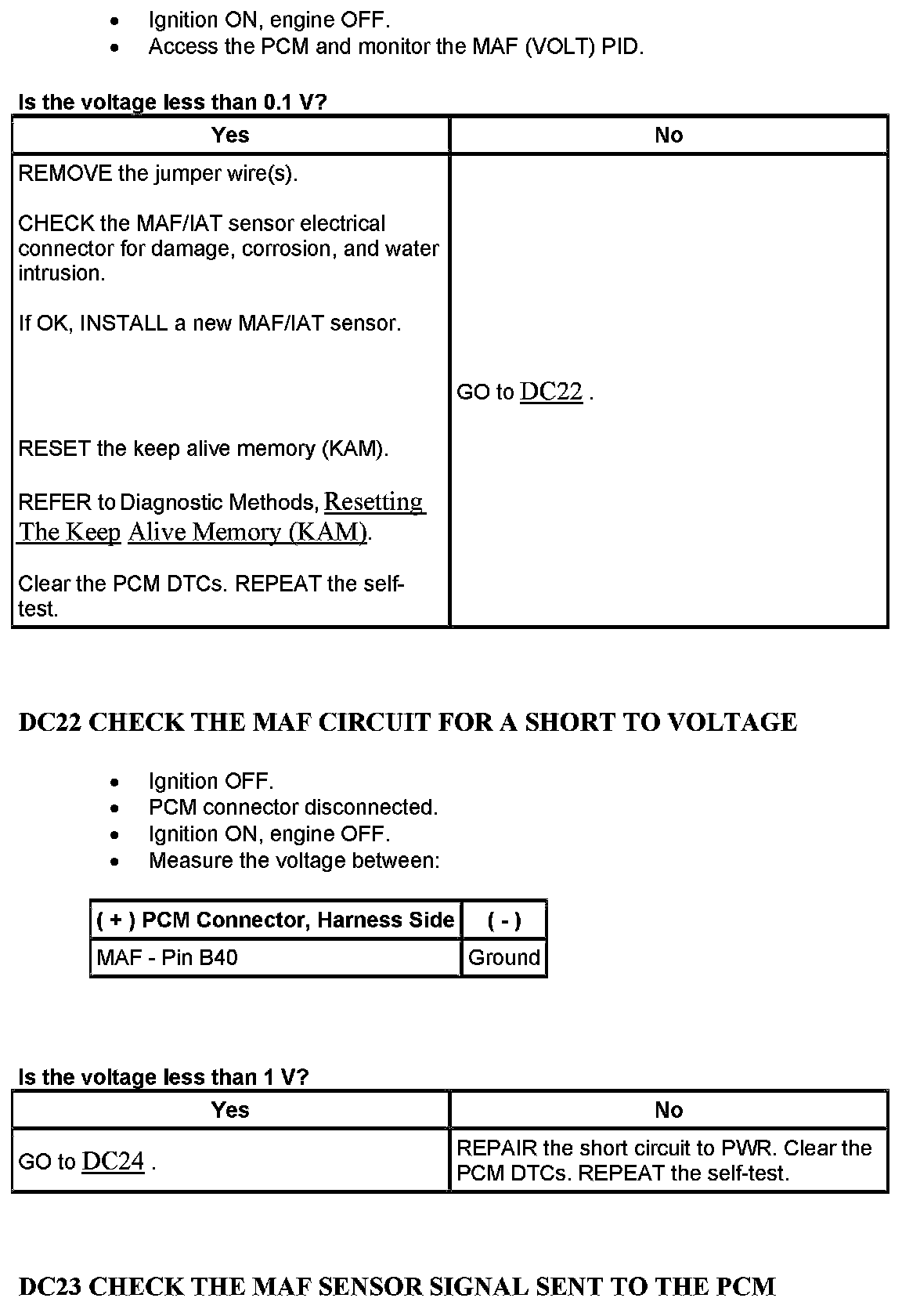

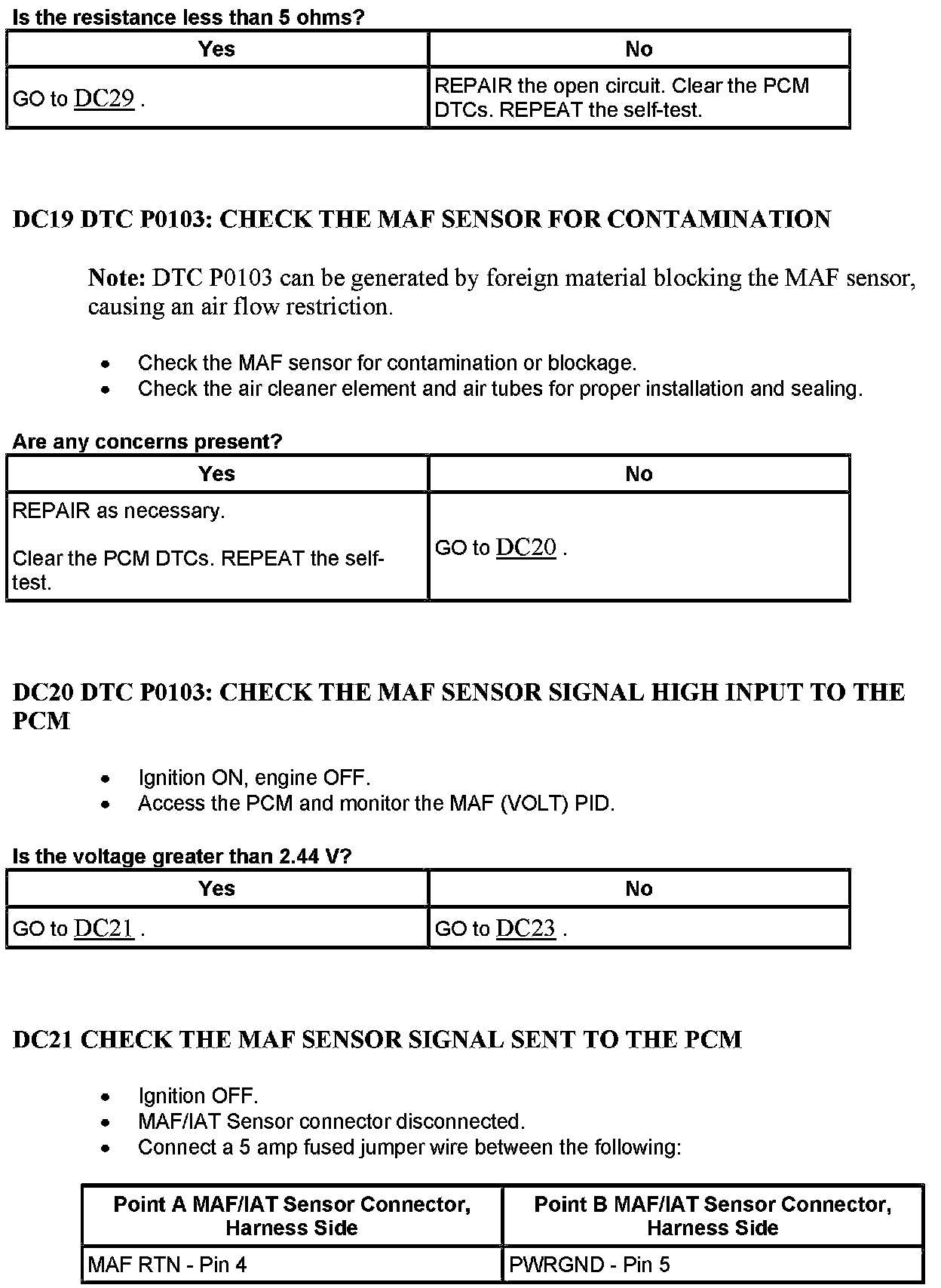

DC21-DC23:

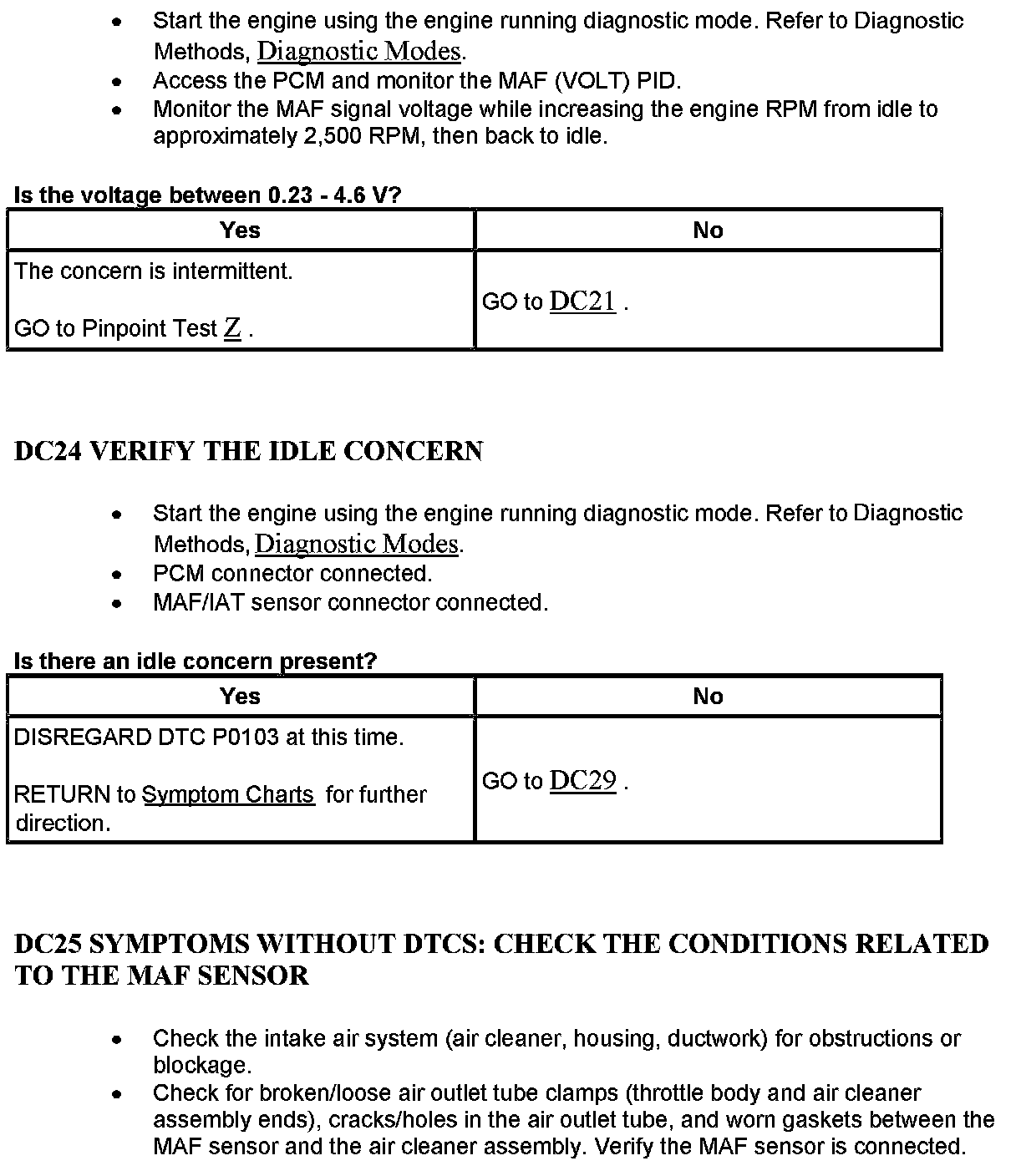

DC23-DC25:

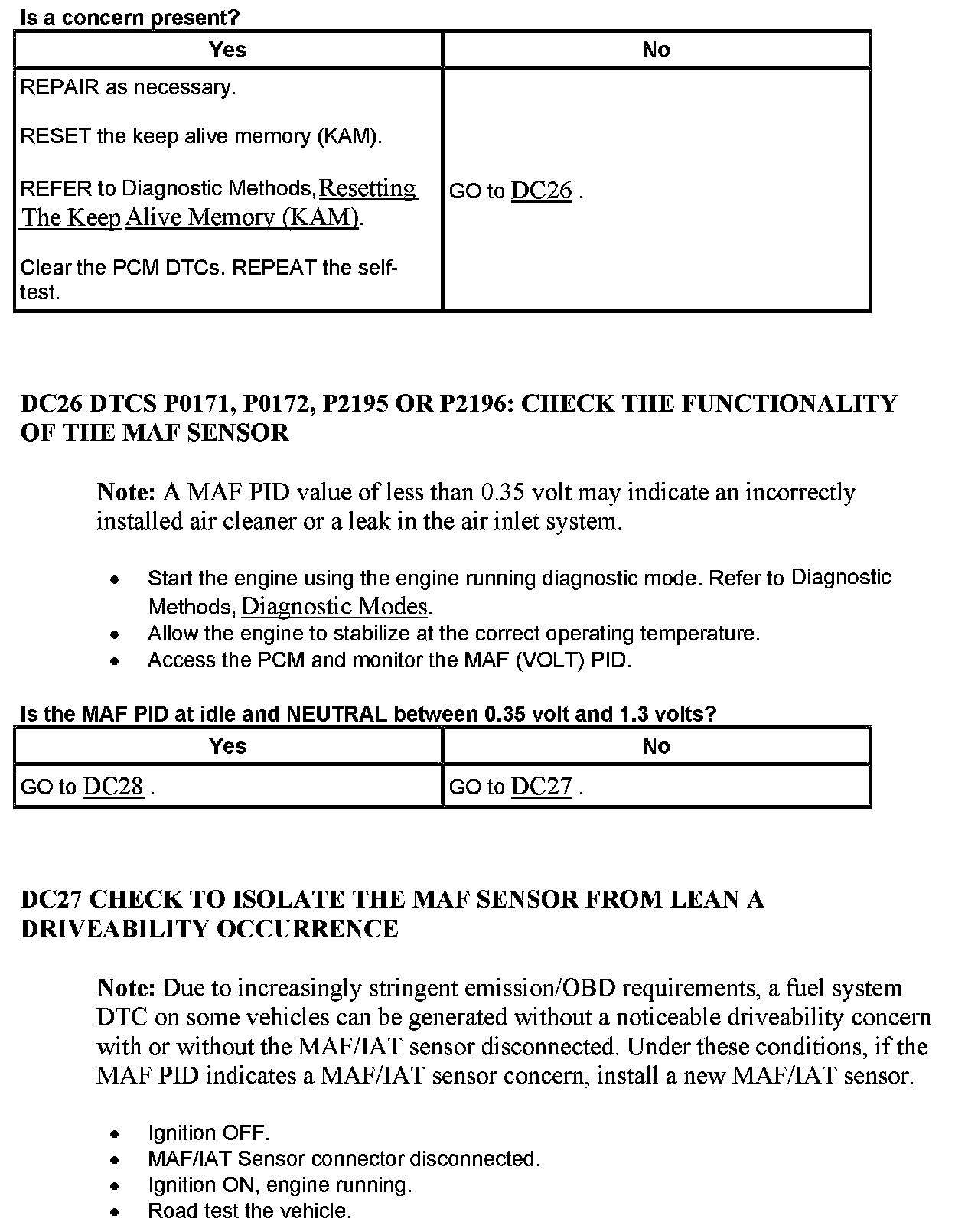

DC25-DC27:

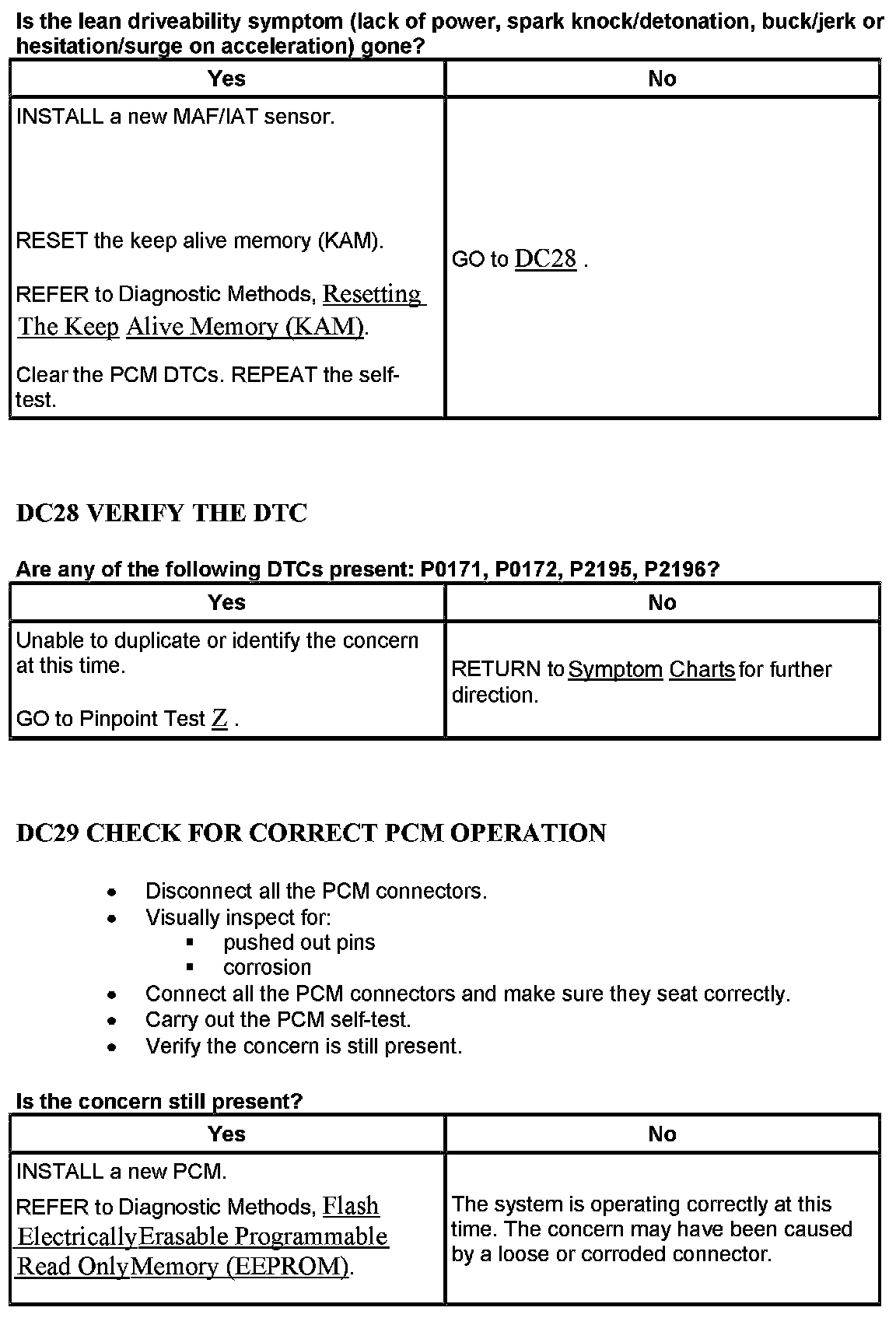

DC27-DC29:
