Test TD: Torque Of Motor Signal
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Test TD: Torque Of Motor Signal

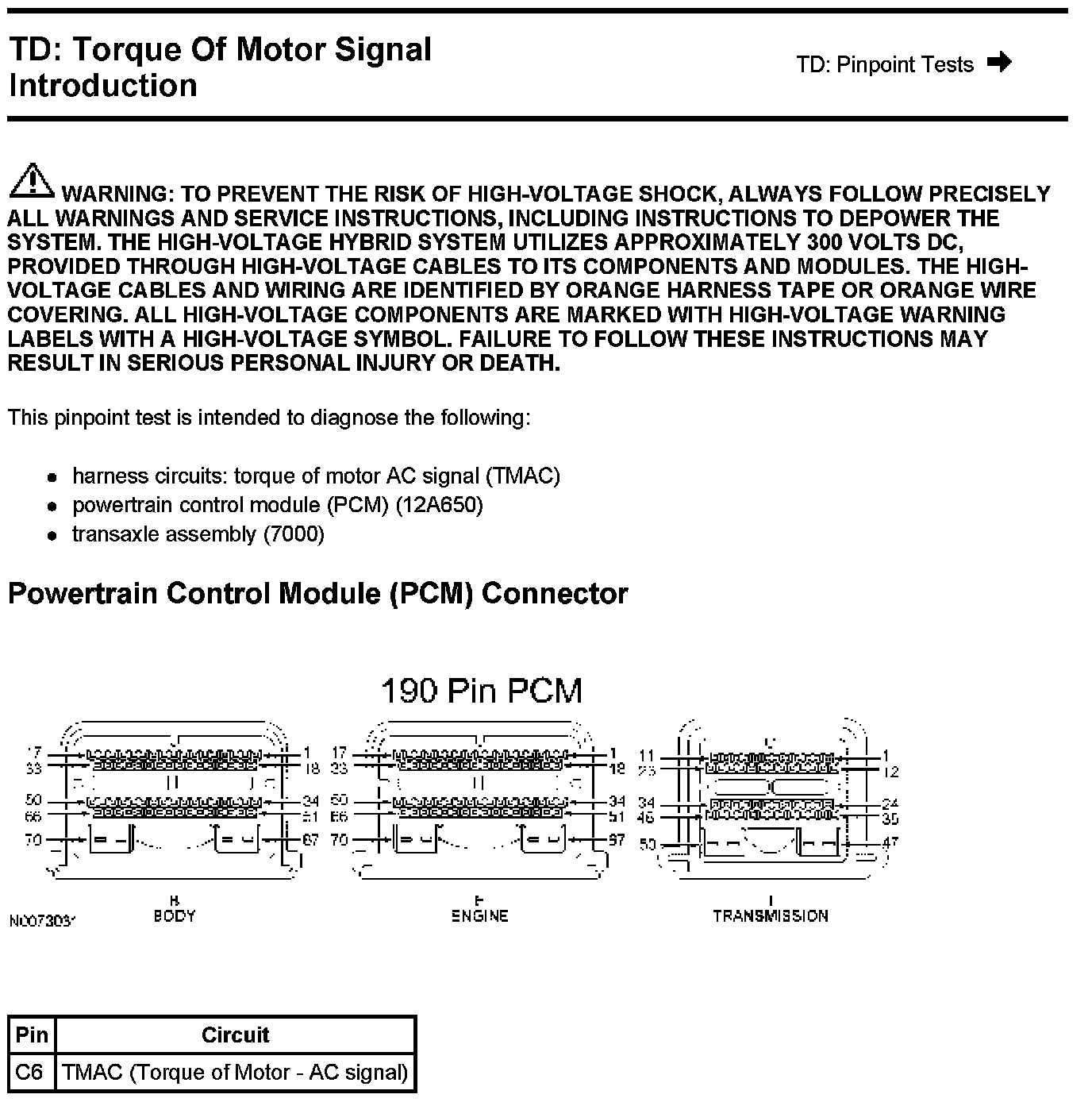

PINPOINT TEST TD: TORQUE OF MOTOR SIGNAL
Warning And Powertrain Control Module (PCM) Connector:
Transaxle Assembly-B Connector:

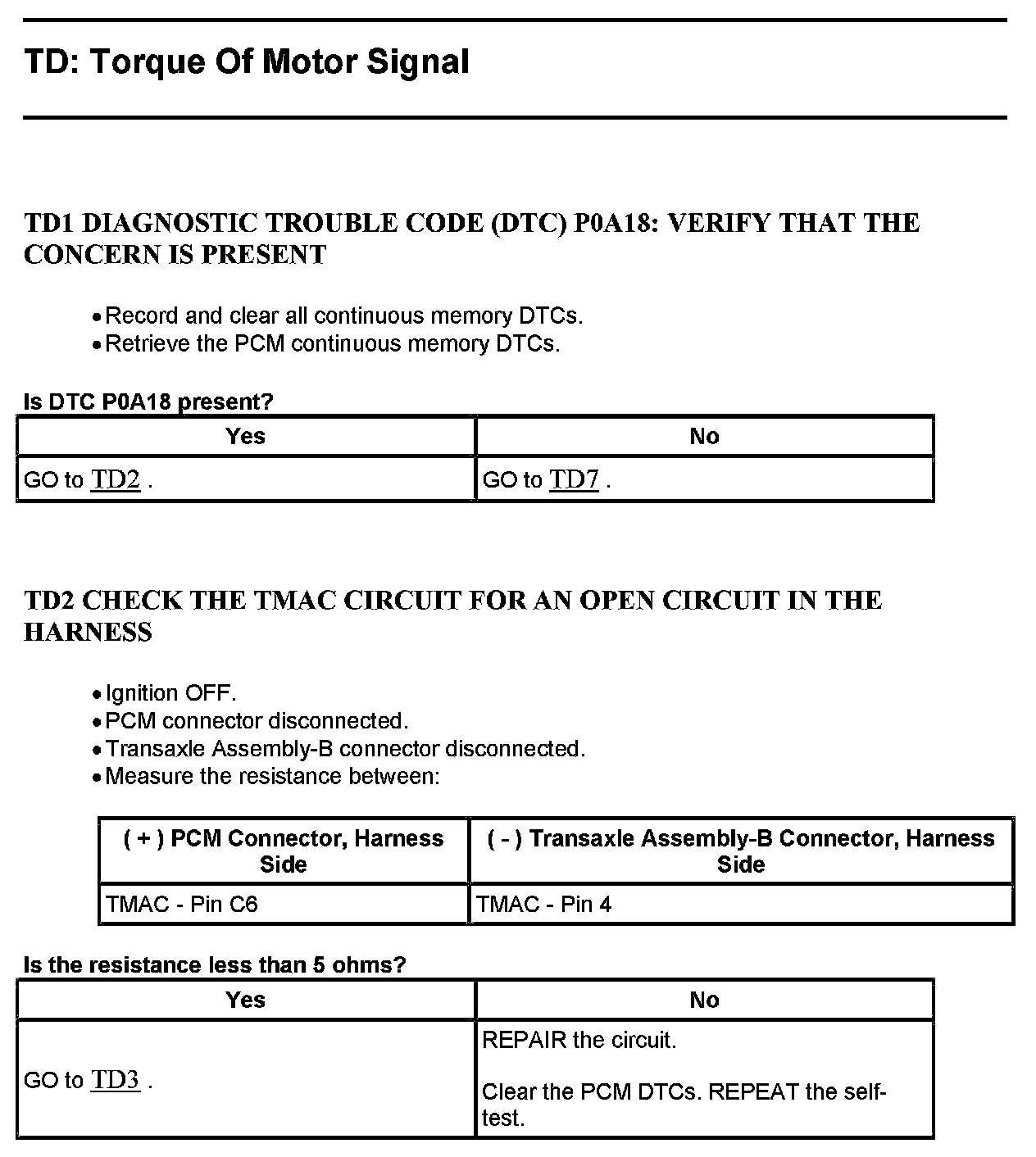

TD1-TD2:

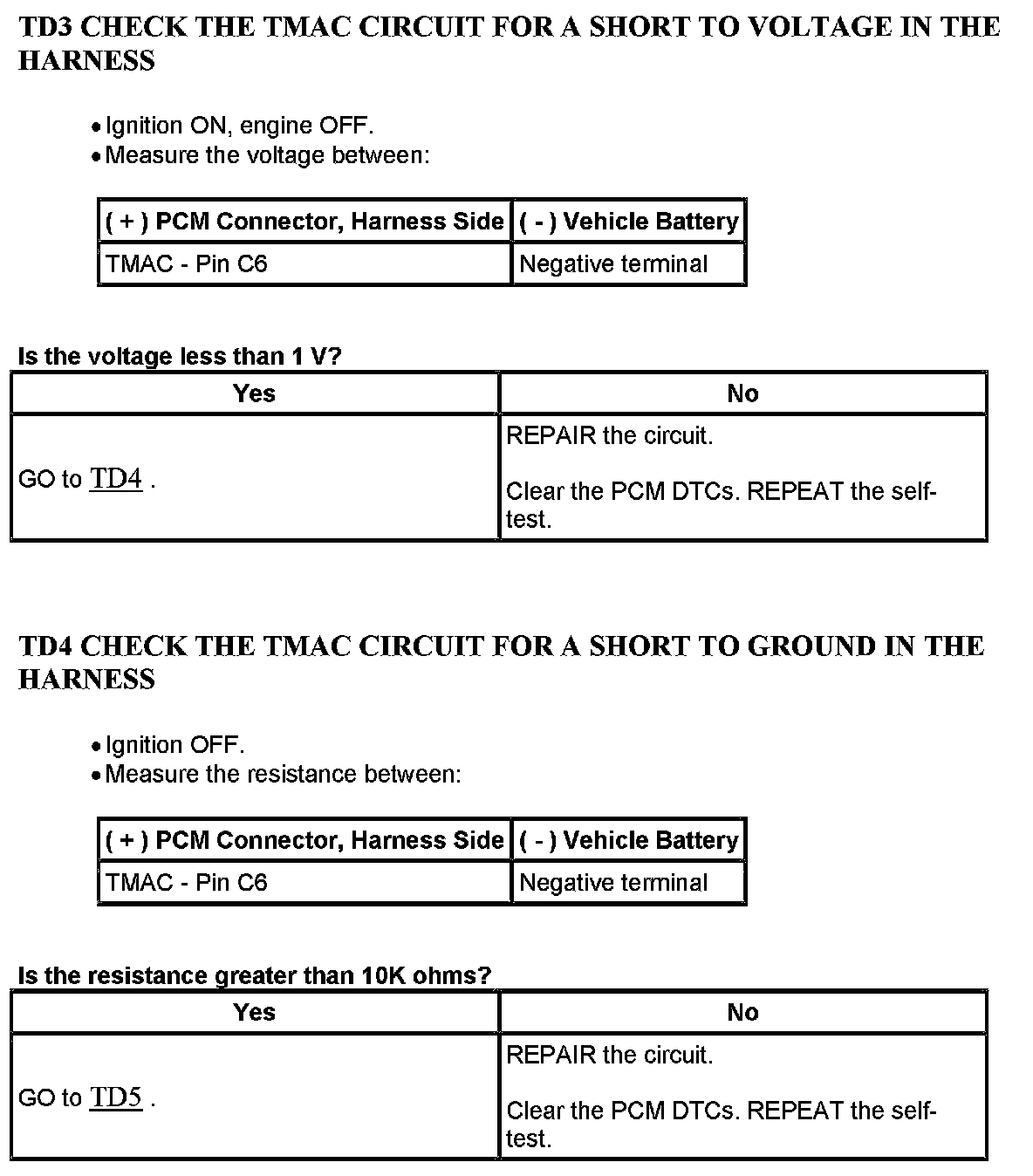

TD3-TD4:

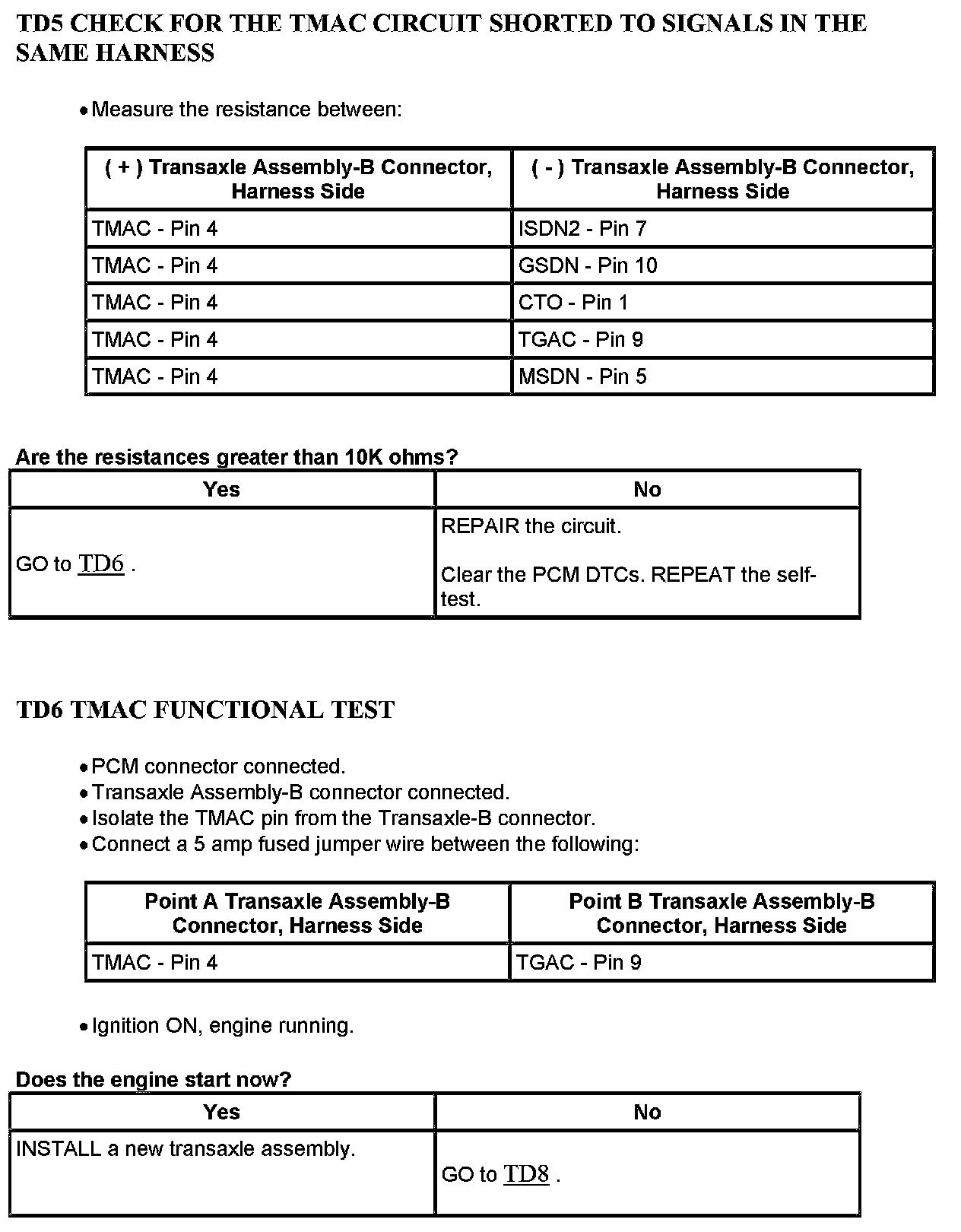

TD5-TD6:

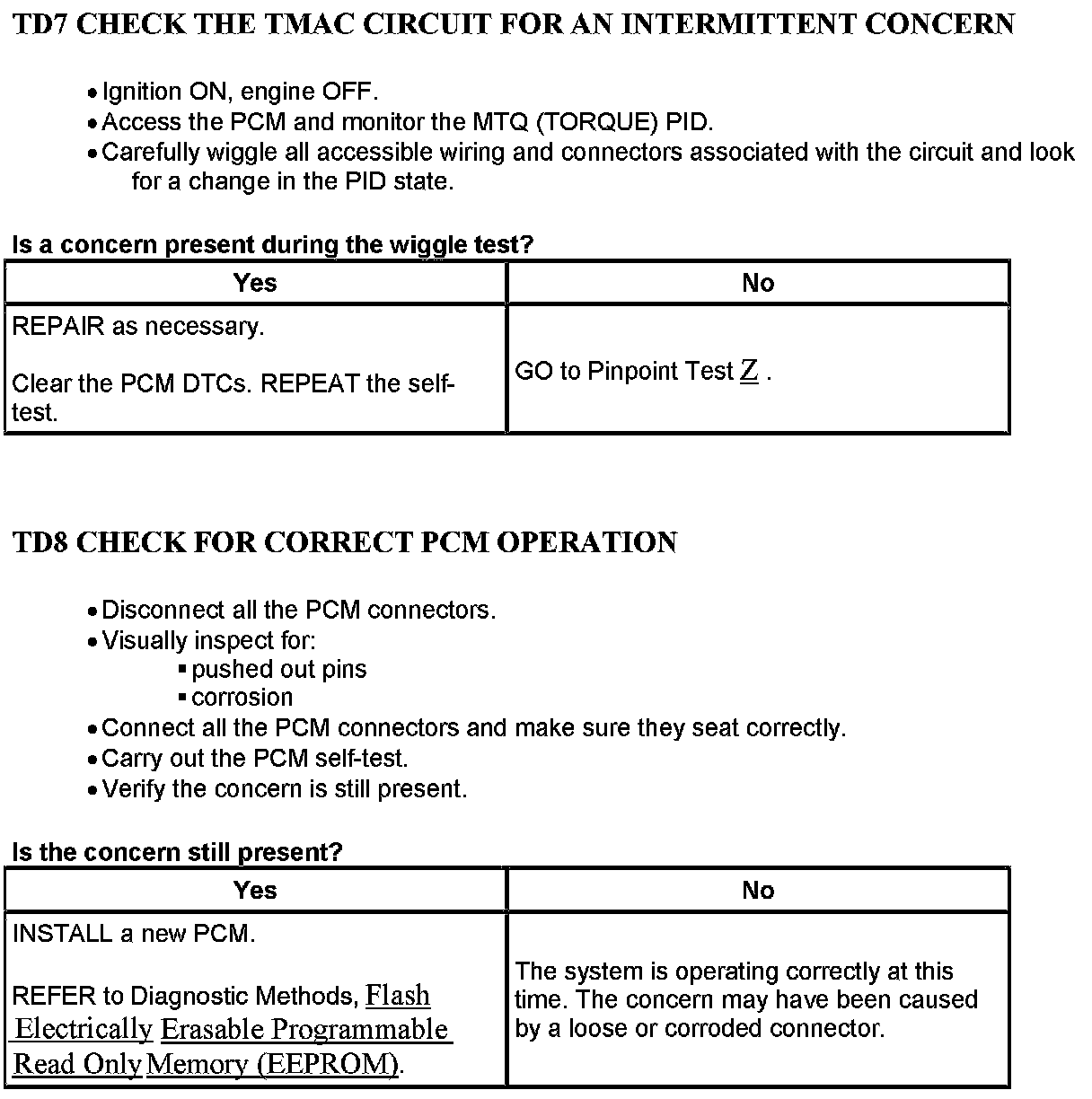

TD7-TD8:
