Traction Control Switch: Service and Repair

Stability/Traction Control Switch

Removal and Installation









1. Remove the center lower instrument panel finish panel. For additional information, refer to Instrument Panel and Console Instrument Panel Finish Panel - Center, Lower.

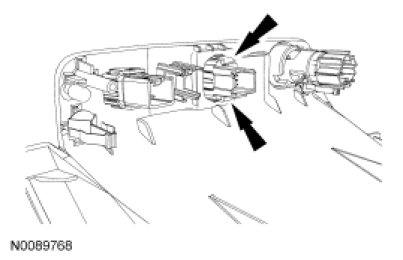

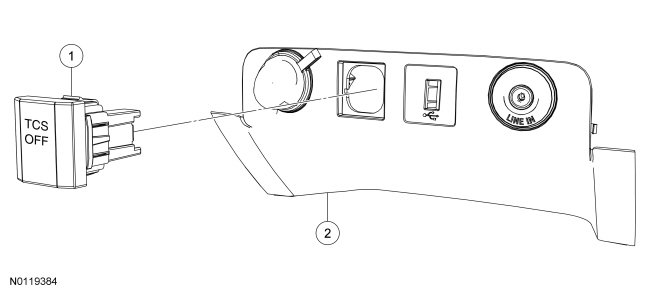

2. Depress the 2 tabs and remove the stability/traction control switch.





3. To install, reverse the removal procedure.
