Parking Assist Control Module: Service and Repair

Parking Aid Module (PAM)

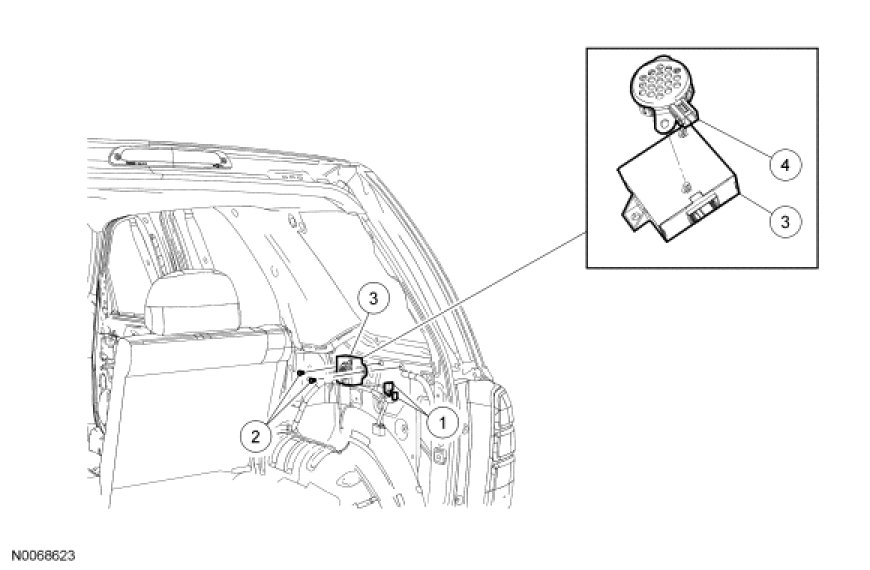

Removal and Installation

1. Remove the RH rear quarter trim panel. For additional information, refer to Interior Trim and Ornamentation Quarter Trim Panel.

2. If replacing the parking aid speaker only, proceed as follows:
- Disconnect the electrical connector.

- Disengage the clips.

- Remove the parking aid speaker.

3. If replacing the PAM, proceed as follows:
- Disconnect the electrical connector.

- Remove the 2 screws.

- Remove the PAM.

4. To install, reverse the removal procedure.
