Test FD: Brake Pedal Inputs

PINPOINT TEST FD: BRAKE PEDAL INPUTS

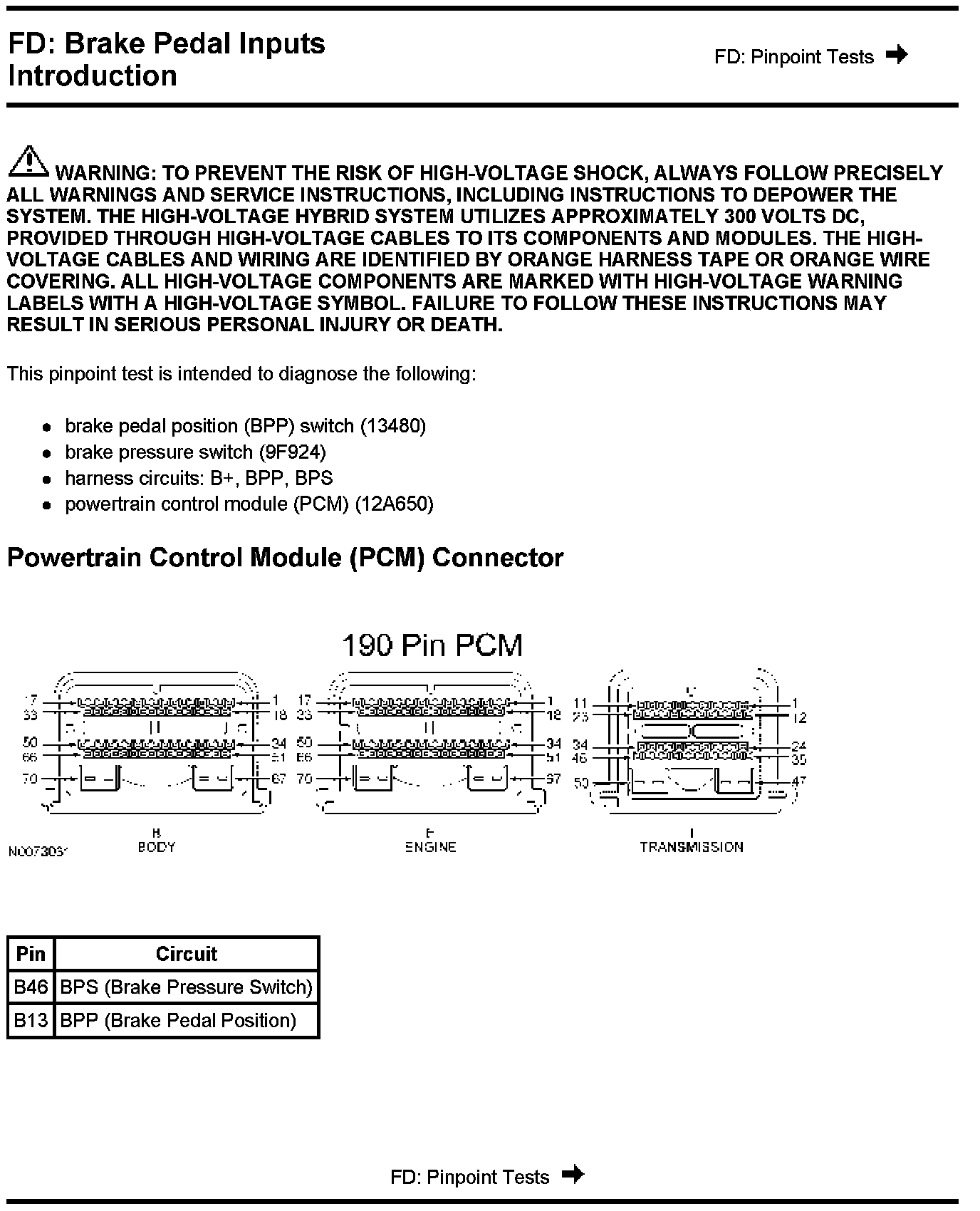

Warning And Powertrain Control Module (PCM) Connector:

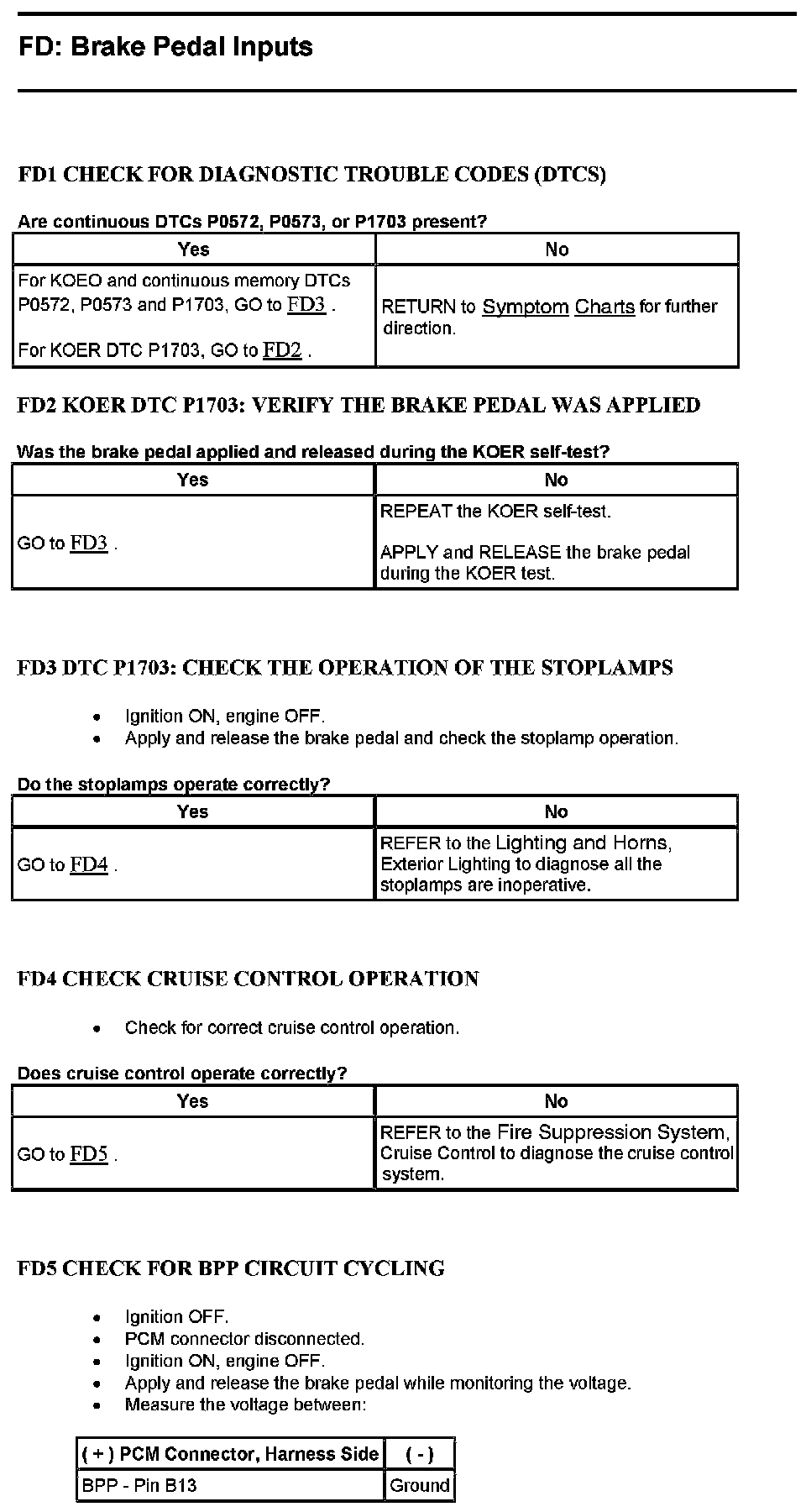

FD1-FD5:

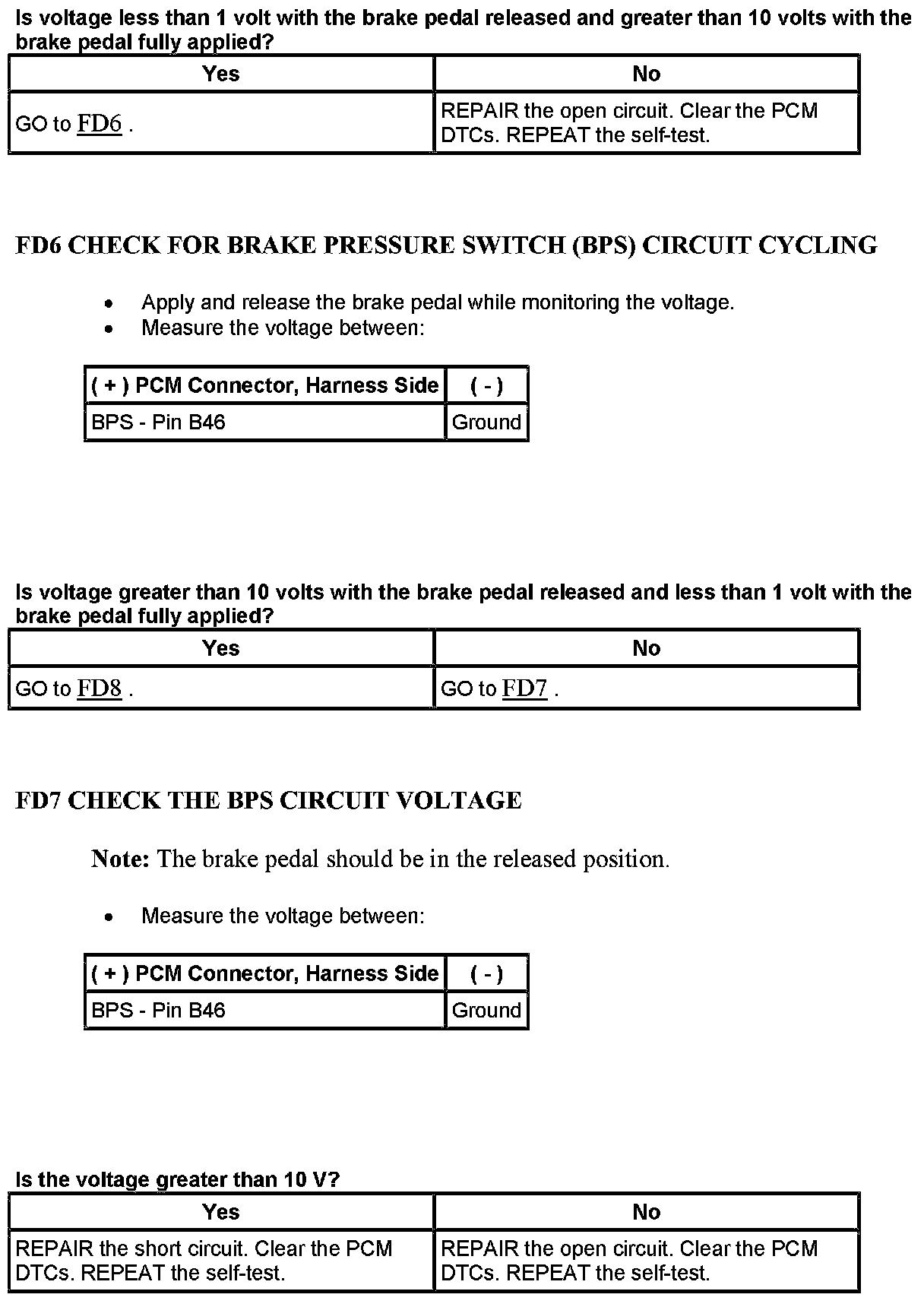

FD5-FD7:

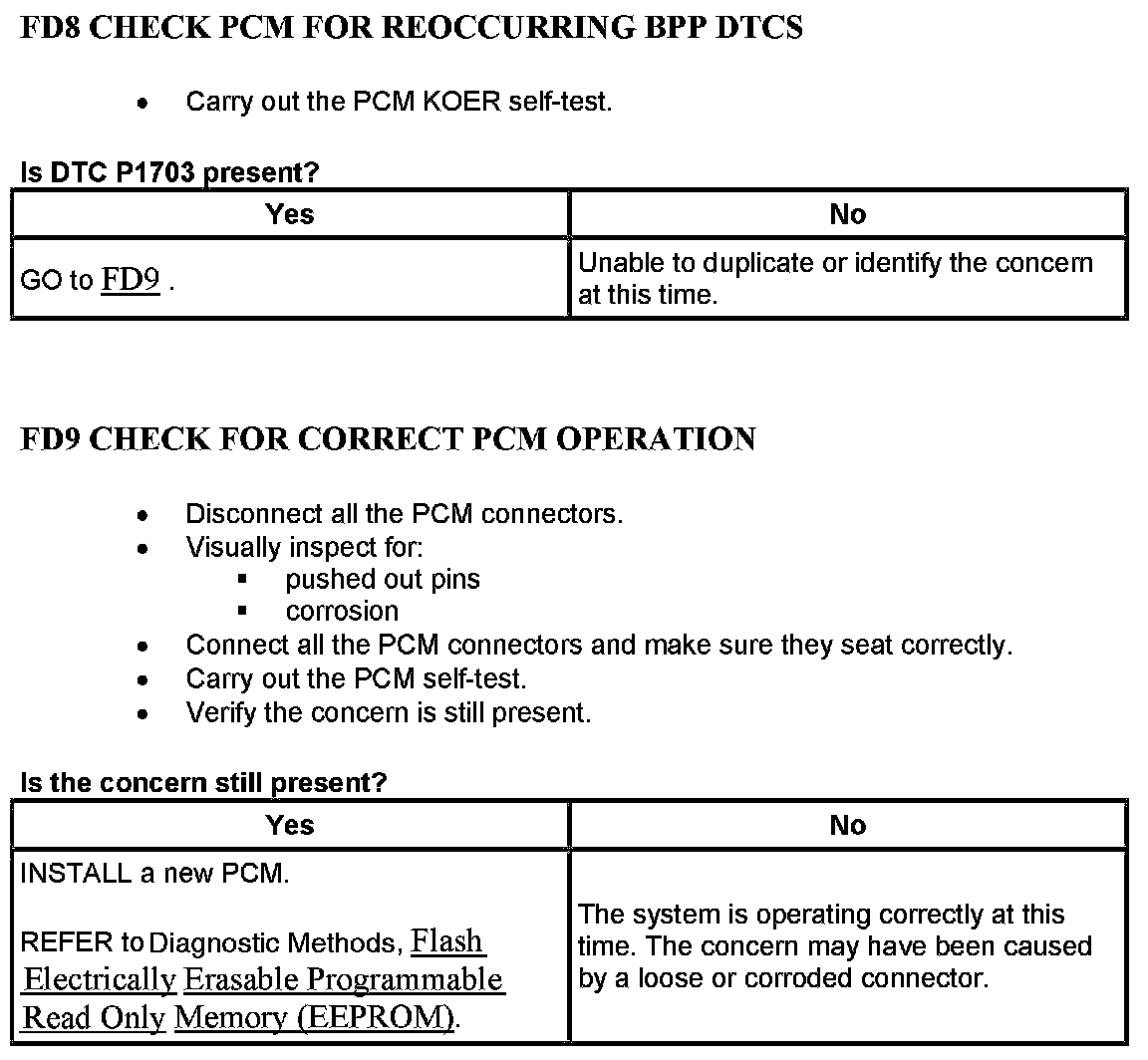

FD8-FD9:
