Engine Ignition LH

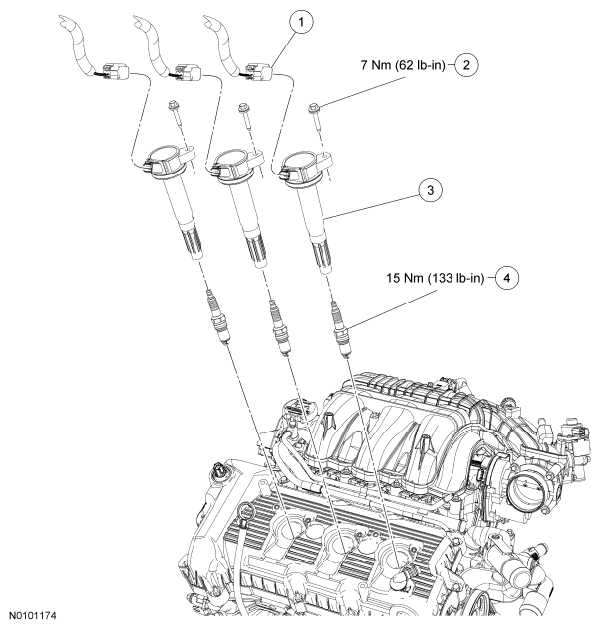

Fig 1: Exploded View Of Engine Ignition System LH Components With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	14A464	LH ignition coil electrical connector (3 required)
2	W708833	LH ignition coil bolt (3 required)
3	12A375	LH ignition coil (3 required)
4	12405	LH spark plug (3 required)
