In-Vehicle Temperature Sensor

In-Vehicle Temperature Sensor - Expedition









Removal and Installation

1. Remove the instrument cluster finish panel. For additional information, refer to Instrument Panel and Console Instrument Cluster Finish Panel Instrument Cluster Finish Panel.

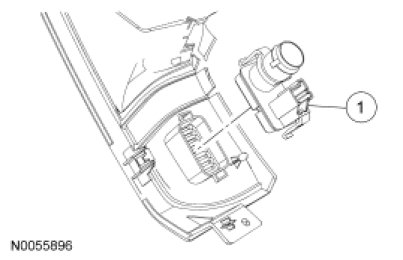

2. Remove the in-vehicle temperature sensor.

3. To install, reverse the removal procedure.
