Plenum Chamber: Notes

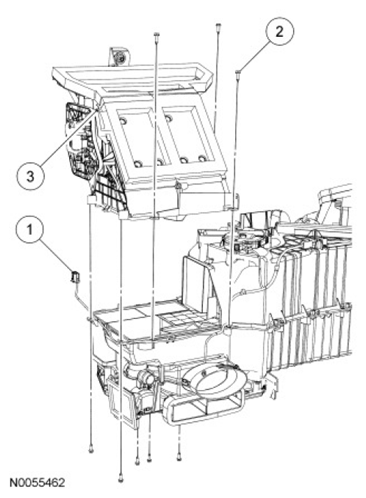

Fig 1: Exploded View Of Plenum Chamber, Screw And Mode Door Actuator Electrical Connector
G07456605Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 18B518 Mode door actuator electrical connector (part of 18B518)
2 W701696 Plenum chamber screw (8 required)
3 18471 Plenum chamber
