Vehicle Dynamics Module (VDM): Notes

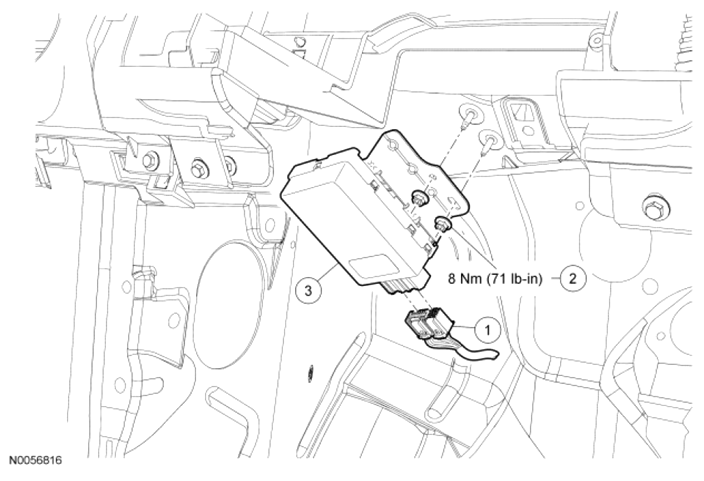

Fig 1: Locating Vehicle Dynamics Module (VDM) Components With Torque Specification

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	-	Vehicle Dynamics Module (VDM) electrical connector (part of 14489) (2 required)
2	W707142	VDM bracket nut (2 required)
3	3C142	VDM and bracket assembly
