Mechatronic Assembly: Assembly

Mechatronic assembly upper half

NOTE: Many components and surfaces in the mechatronic valve body are precision machined. Careful handling during disassembly, cleaning, inspection and assembly will prevent unnecessary damage to machined surfaces.

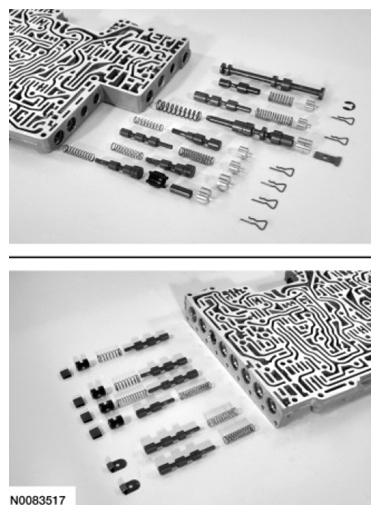

Fig 1: Exploded View Of Valve Body Clips, Caps, Valves And Spring
Courtesy of FORD MOTOR CO.
1. Install the clips, caps, valves and spring into each bore. Refer to the applicable preceding exploded views under Major Components .

   Mechatronic assembly lower half

NOTE: Many components and surfaces in the mechatronic valve body are precision machined. Careful handling during disassembly, cleaning, inspection and assembly will prevent unnecessary damage to machined surfaces.

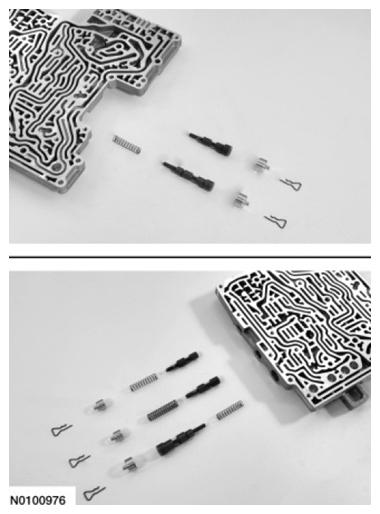

Fig 2: Exploded View Of Mechatronic Valve Body Clips, Caps, Valves And Spring
Courtesy of FORD MOTOR CO.
2. Install the clips, caps, valves and spring into each bore.
NOTE: Lubricate the O-ring seals of the solenoids with clean automatic transmission fluid when installing them into the valve body.

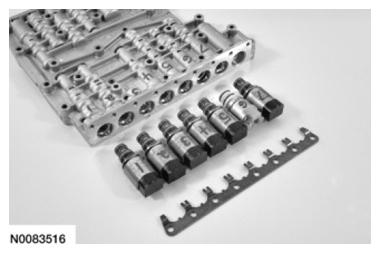

Fig 3: View Of Solenoids
Courtesy of FORD MOTOR CO.
3. Install the solenoids into their correct bores as indicated during disassembly.
4. Install the solenoid bracket and the 8 bolts.
   • Tighten to 6 Nm (53 lb-in).

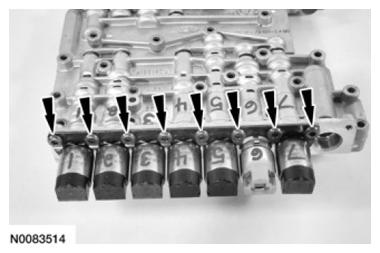

     Fig 4: Locating Solenoid Bracket Bolts

     Courtesy of FORD MOTOR CO.
NOTE: Towards the back of the upper valve body there is a hydraulic passage that is shaped as though it receives a check ball. This passage does not require a check ball. Be sure not to mistake this hydraulic passage for a passage that does require a check ball or damage to the transmission can occur.
5. Install the solenoid dampers, check balls, converter drain back valve and filter screens.
   1. Solenoid dampers
   2. Check balls
   3. Converter drain back valve
   4. Small screen
   5. Big screen
   6. Empty hydraulic passage (no check ball)

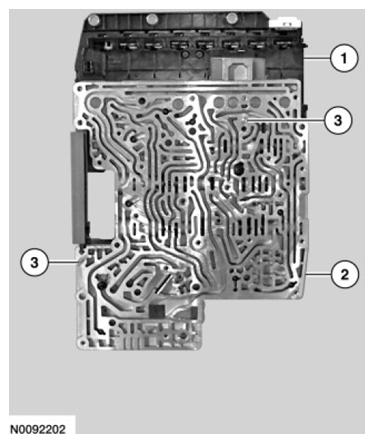

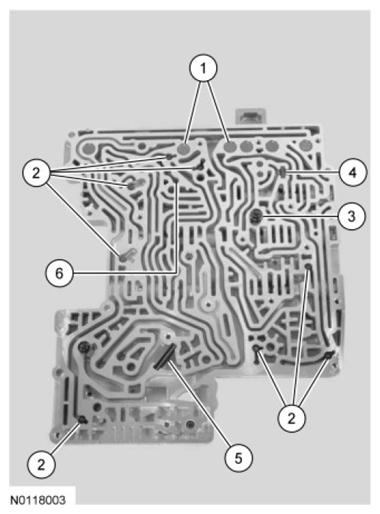

      Fig 5: Locating Solenoid Dampers, Check Balls, Converter Drain Back Valve And Filter Screens

      Courtesy of FORD MOTOR CO.
6. Align the guide pins on the TCM  with the holes in the upper valve body and install the valve body on the TCM  .
   1. TCM
   2. Upper valve body
   3. Guide pins
      Fig 6: Locating TCM, Upper Valve Body And Guide Pins

      Courtesy of FORD MOTOR CO.
NOTE: The separator plates are different between the early and late build mechatronic assemblies to accommodate the different number of dampers. Failure to install the correct separator plate can result in harsh, soft or erratic shifts or damage to the transmission.
NOTE: If the drain back valves are not installed correctly in the separator plate, damage to the transmission can occur.
7. Position the separator plate on the upper valve body.

   Check the 2 drain back valves to be sure they are correctly positioned in the separator plate when the separator plate is pressed flush against the upper valve body.

   1. Separator plate
   2. Drain back valves

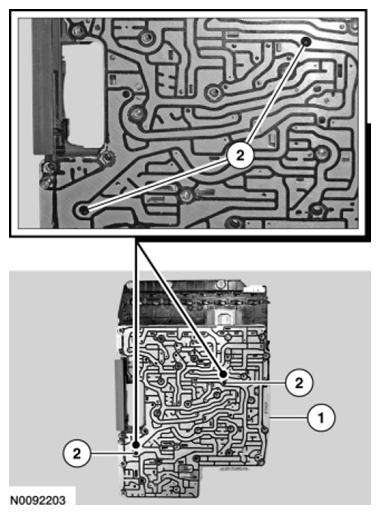

      Fig 7: Locating Separator Plate And Drain Back Valves

      Courtesy of FORD MOTOR CO.
8. Position the lower valve body on the 2 TCM  alignment studs, align the manual valve with the Transmission Range (TR) sensor on the TCM  and install the lower valve body.
   1. Lower valve body
   2. Manual valve
   3. TR  sensor

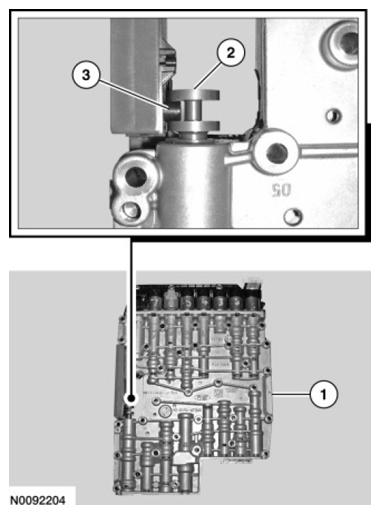

      Fig 8: Locating Lower Valve Body, Manual Valve And TR Sensor

      Courtesy of FORD MOTOR CO.
9. Install the 6 (long) TCM  -to-valve body bolts hand-tight.

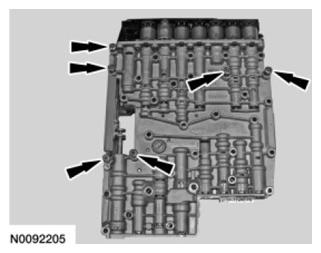

   Fig 9: Locating TCM To Valve Body Bolts

   Courtesy of FORD MOTOR CO.
10. Install the 19 (short) mechatronic assembly lower-to-upper valve body bolts.
    • Tighten the bolts in the sequence shown in the illustration.
    • Tighten bolts 1 through 6 in the tightening sequence to 7 Nm (62 lb-in).
    • Tighten bolts 7 through 25 in the tightening sequence to 6 Nm (53 lb-in).

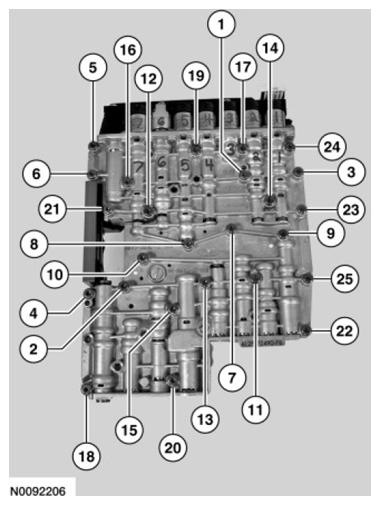

      Fig 10: Identifying Mechatronic Assembly Lower-To-Upper Valve Body Bolts Tightening Sequence
