Power Mirror Motor: Service and Repair

Exterior Mirror Motor

Removal

1. Remove the exterior mirror glass. REFER to Exterior Mirror Glass Exterior Mirror Glass.

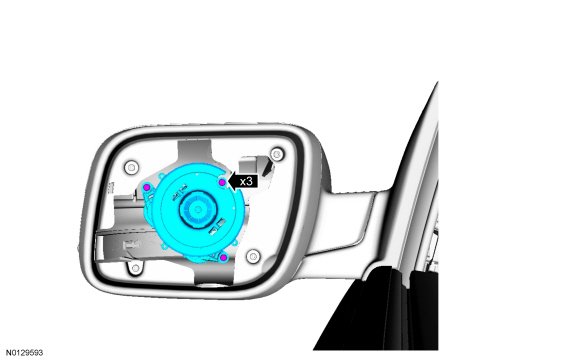

2. Remove the 3 exterior mirror motor screws.





3. Disconnect the exterior mirror motor electrical connectors.

4. Remove the exterior mirror motor.

Installation

1. To install, reverse the removal procedure.
