Fog/Driving Lamp: Service and Repair

Fog Lamp

WARNING: Before beginning any service procedure, REFER to Safety Warnings. Failure to follow this instruction may result in serious personal injury [1][2]Safety Warnings.

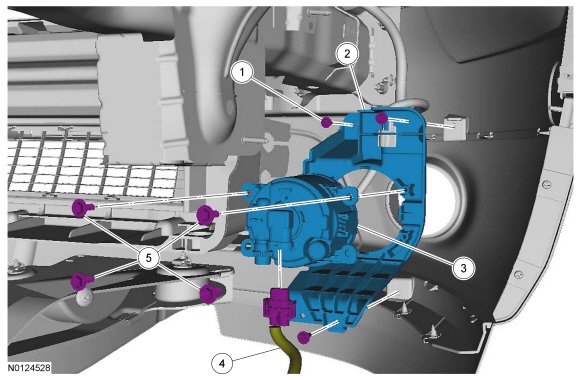

Exploded View










Removal

NOTE: Make sure the headlamp switch and the ignition switch are in the OFF position.

1. Remove the front fender splash shield. REFER to Fender Splash Shield Fender Splash Shield.

2. Remove the fog lamp assembly.

1. Disconnect the fog lamp electrical connector at the fog lamp assembly.

2. Remove the 4 fog lamp assembly screws and the fog lamp assembly.

Installation

NOTE: Make sure the headlamp switch and the ignition switch are in the OFF position.

1. Install the fog lamp assembly.

1. Install the fog lamp assembly and the 4 screws.

2. Connect the fog lamp assembly electrical connector at the fog lamp assembly.

2. Install the front fender splash shield. REFER to Fender Splash Shield Fender Splash Shield.
