Exhaust Gas Recirculation (EGR) System Module (ESM): ESM

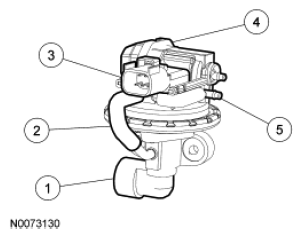

Fig 1: Identifying Exhaust Gas Recirculation (EGR) System Module

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Number	Description
1	-	Exhaust Flow
2	-	Upstream Differential Pressure Feedback EGR Port
3	-	Differential Pressure Feedback EGR and MAP Sensor
4	-	EGR Vacuum Regulator Integrated into Upper Body
5	-	Downstream Differential Pressure Feedback EGR Port
6	-	To Intake Manifold Plenum
