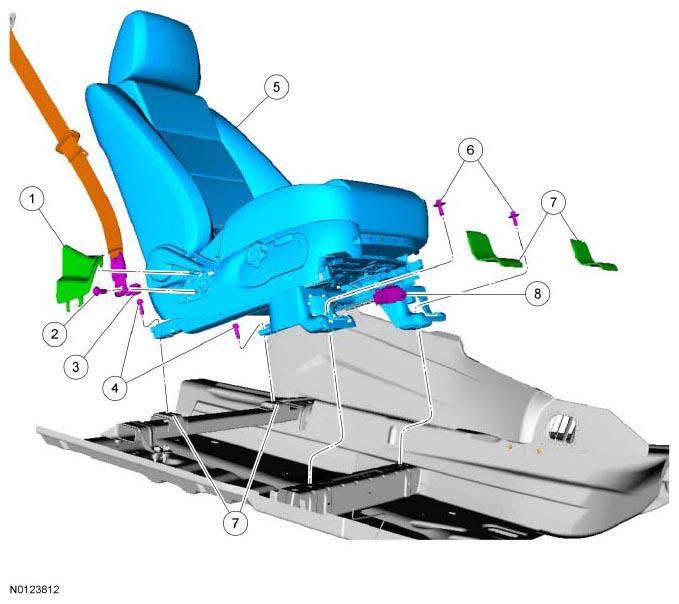

Exploded View
NOTE:
Passenger side shown in illustration, driver side similar.
PARTS DESCRIPTION CHART
| Item | Service Part Number | Description |
|---|---|---|
| 1 | 78664 | Cushion side shield cover |
| 2 | - | Safety belt anchor bolt |
| 3 | - | Belt Tension Sensor (BTS) electrical connector (part of 611B09) (passenger seat only) |
| 4 | W714018 | Rear mounting bolts |
| 5 | - | Passenger seat assembly |
| 6 | W709428 | Front mounting bolts |
| 7 | 78629 | Front cover (2 required) |
| 8 | - | Electrical connector |
