Roof Opening Panel Control Switch Connector - C912

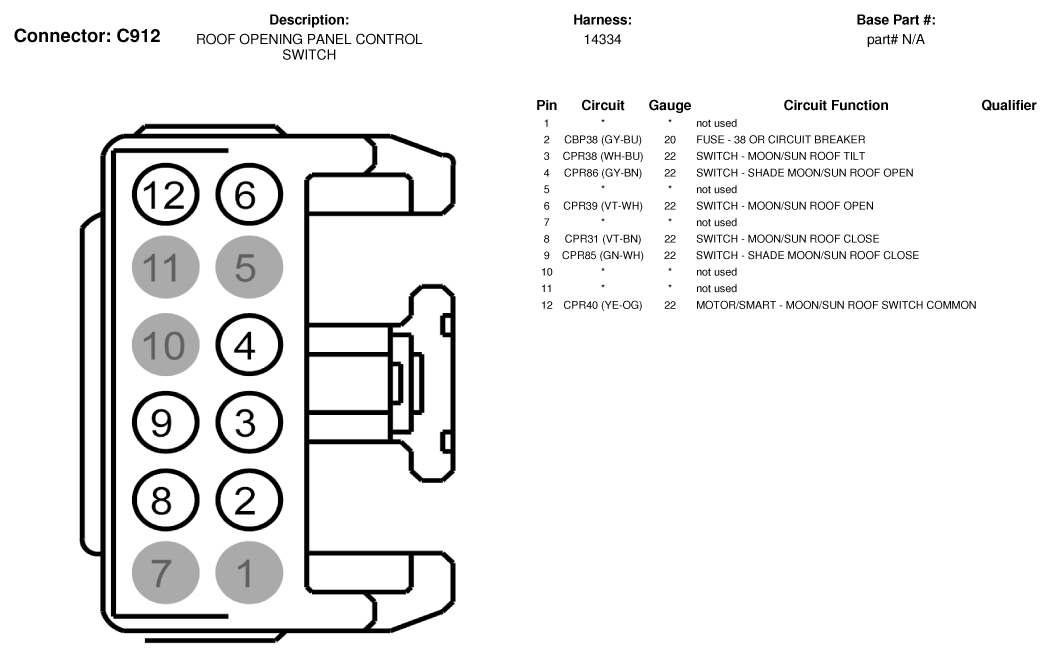

Fig 1: Roof Opening Panel Control Switch Connector End View (C912)
G07328040Courtesy of FORD MOTOR CO.
