Third Row Seat Control Switch Connector - C3199

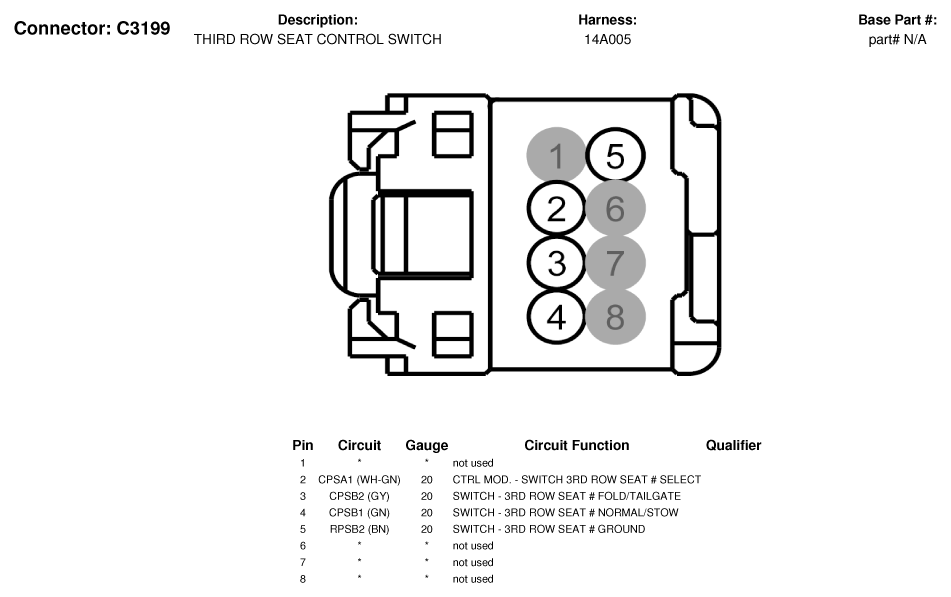

Fig 1: Third Row Seat Control Switch Connector End View (C3199)
G07328172Courtesy of FORD MOTOR CO.
