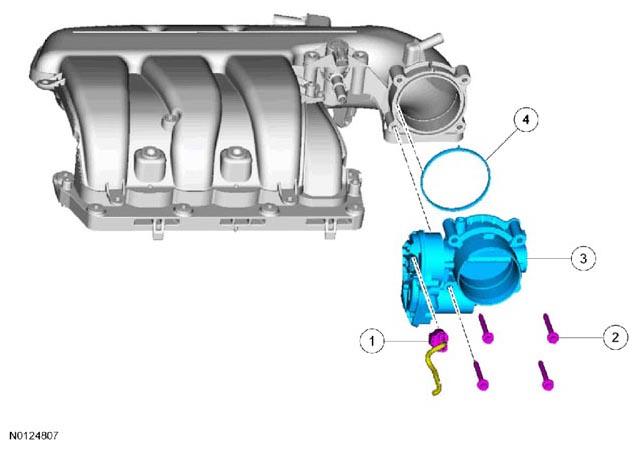

Exploded View
REFER to THROTTLE BODY
THROTTLE BODY PARTS DESCRIPTION CHART
| Item | Service Part Number | Description | Torque |
|---|---|---|---|
| 1 | - | Throttle Body (TB) electrical connector (part of 12C581) | - |
| 2 | W713443 | Throttle Body (TB) bolt (4 required) | 10 Nm (89 lb-in) |
| 3 | 9E926 | Throttle Body (TB) | - |
| 4 | 9E936 | Throttle Body (TB) gasket | - |
