Automatic Transmission - 6F50 And 6F55
>>
Removal And Installation
>>
Main Control Valve Body
>>
Exploded View
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Exploded View

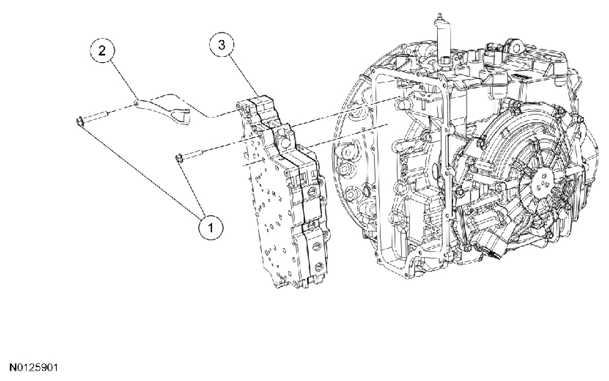

Fig 1: Exploded View Of Main Control Valve Body
Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART
Item
Service Part Number
Description
1
7J291
Main control valve body bolts (10 required)
2
7E332
Manual valve detent spring
3
7A100
Valve body
