Global Positioning System Module: Service and Repair

Global Positioning System Module (GPSM)









Removal and Installation

1. Remove the Front Display Interface Module (FDIM). For additional information, refer to Front Display Interface Module (FDIM) Front Display Interface Module (FDIM).

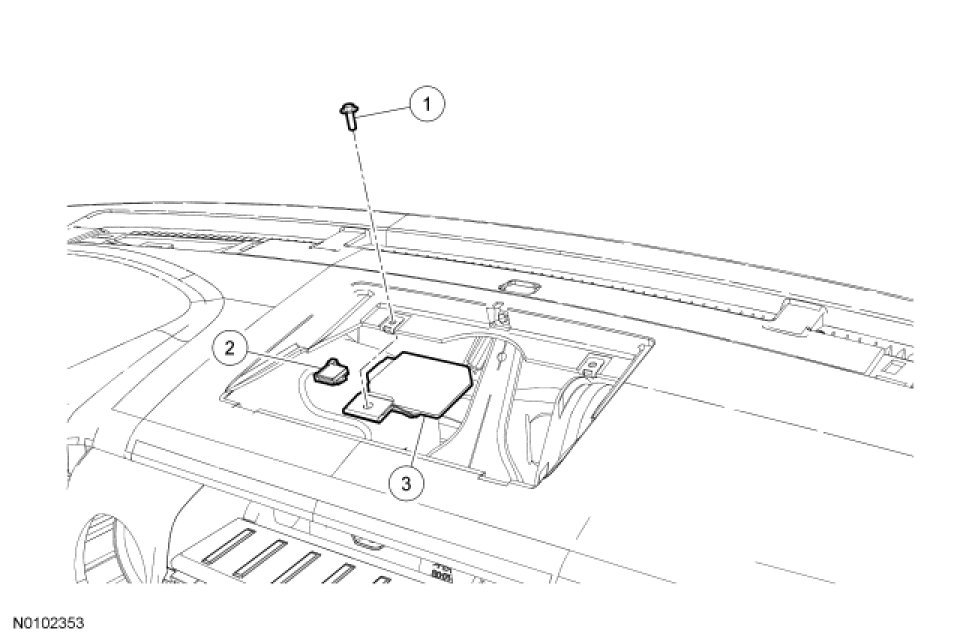

2. Remove the screw and the Global Positioning System Module (GPSM).
- Disconnect the electrical connector.

3. To install, reverse the removal procedure.
