Evaporator Temperature Sensor / Switch: Service and Repair

Air Conditioning (A/C) Evaporator Discharge Air Temperature Sensor

Removal and Installation

1. Remove the RH floor console trim panel.

1. Remove the pin-type retainer.

2. Detach the 3 clips and remove the trim panel.

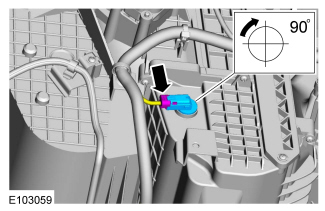

2. Disconnect the evaporator discharge air temperature sensor electrical connector and rotate the sensor clockwise to remove.





3. To install, reverse the removal procedure.
