Steering Column Multifunction Switch

Steering Column Multifunction Switch

Removal and Installation

1. Pulling upward, detach the upper steering column shroud from the lower steering column shroud.
- Slide the upper steering column shroud out of the Instrument Cluster (IC) trim panel and remove the shroud.





2. Remove the 3 screws and the lower steering column shroud.

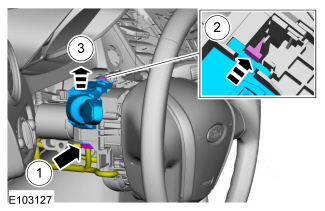

3. Remove the multifunction switch in the sequence shown.

1. Disconnect the electrical connector.

2. Push inward to release the locking clip.

3. Slide the multifunction switch upward on the carrier and remove the multifunction switch.





4. To install, reverse the removal procedure.
