Brake Shift Interlock Override

NOTE: If it is necessary to use the brake shift interlock override procedure to move the selector lever out of the PARK position, it is possible that a fuse has blown and the brake lights are not operational. Before driving the vehicle, verify that the brake lights are working.

This vehicle is equipped with a brake shift interlock feature that prevents the selector lever from being moved out of PARK when the ignition is in the ON or RUN position unless the brake pedal is depressed.

Perform the following if the selector lever cannot be moved out of the PARK position when the ignition is in the ON position and the brake pedal is depressed:

Apply the parking brake.
Turn the ignition key to the ON position.
Remove the center console side panel.

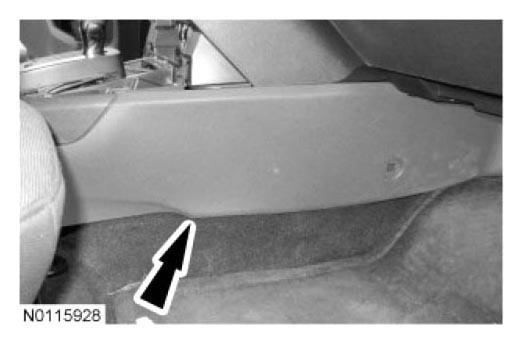

Fig 1: Locating Center Console Side Panel
Courtesy of FORD MOTOR CO.
Locate the brake shift interlock override mechanism on the Brake Shift Interlock Actuator (BSIA).

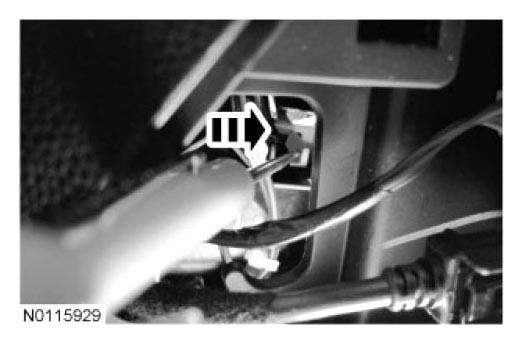

Fig 2: Locating Brake Shift Interlock Override Mechanism On Brake Shift Interlock Actuator
Courtesy of FORD MOTOR CO.
Using an suitable tool, depress the brake shift interlock override mechanism on the BSIA , apply the brake, depress the button on the selector lever and move the selector lever into NEUTRAL.

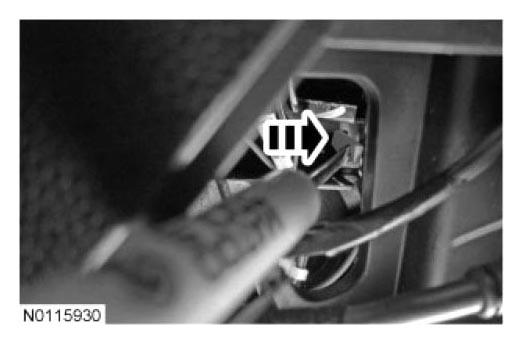

Fig 3: Depressing Brake Shift Interlock Override Mechanism On BSIA Using Suitable Tool
Courtesy of FORD MOTOR CO.
Start the vehicle.
To install, reverse the procedure.
