HVAC Module Connector - C228B

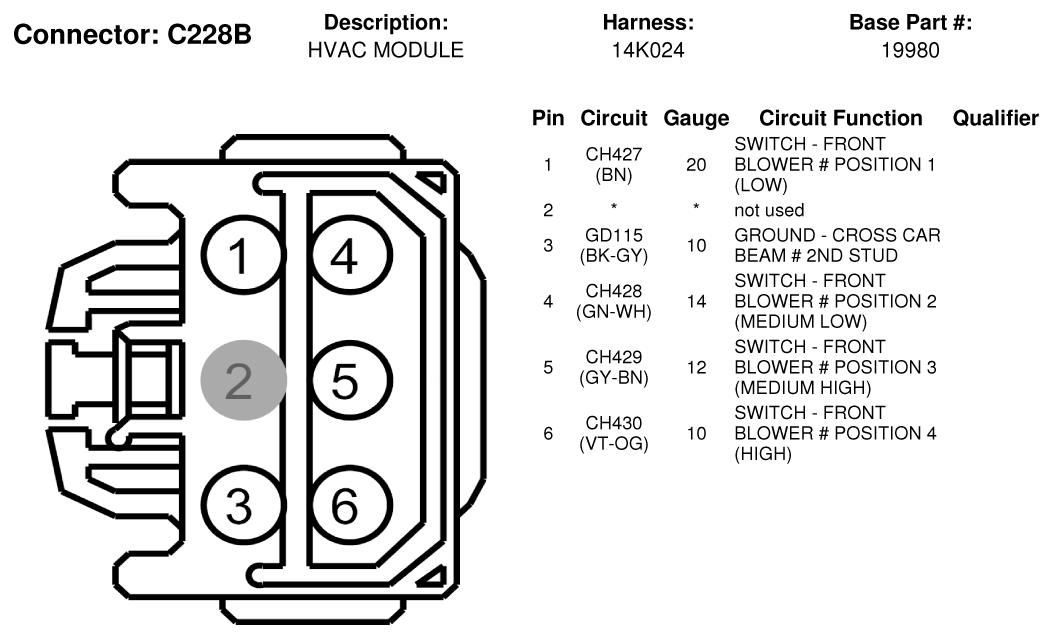

Fig 1: HVAC Module Connector End View (C228B)
Courtesy of FORD MOTOR CO.
