Home >> Ford >> 2011 >> Flex AWD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Trunk / Liftgate Switch >> C4353 Liftgate Release Switch
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

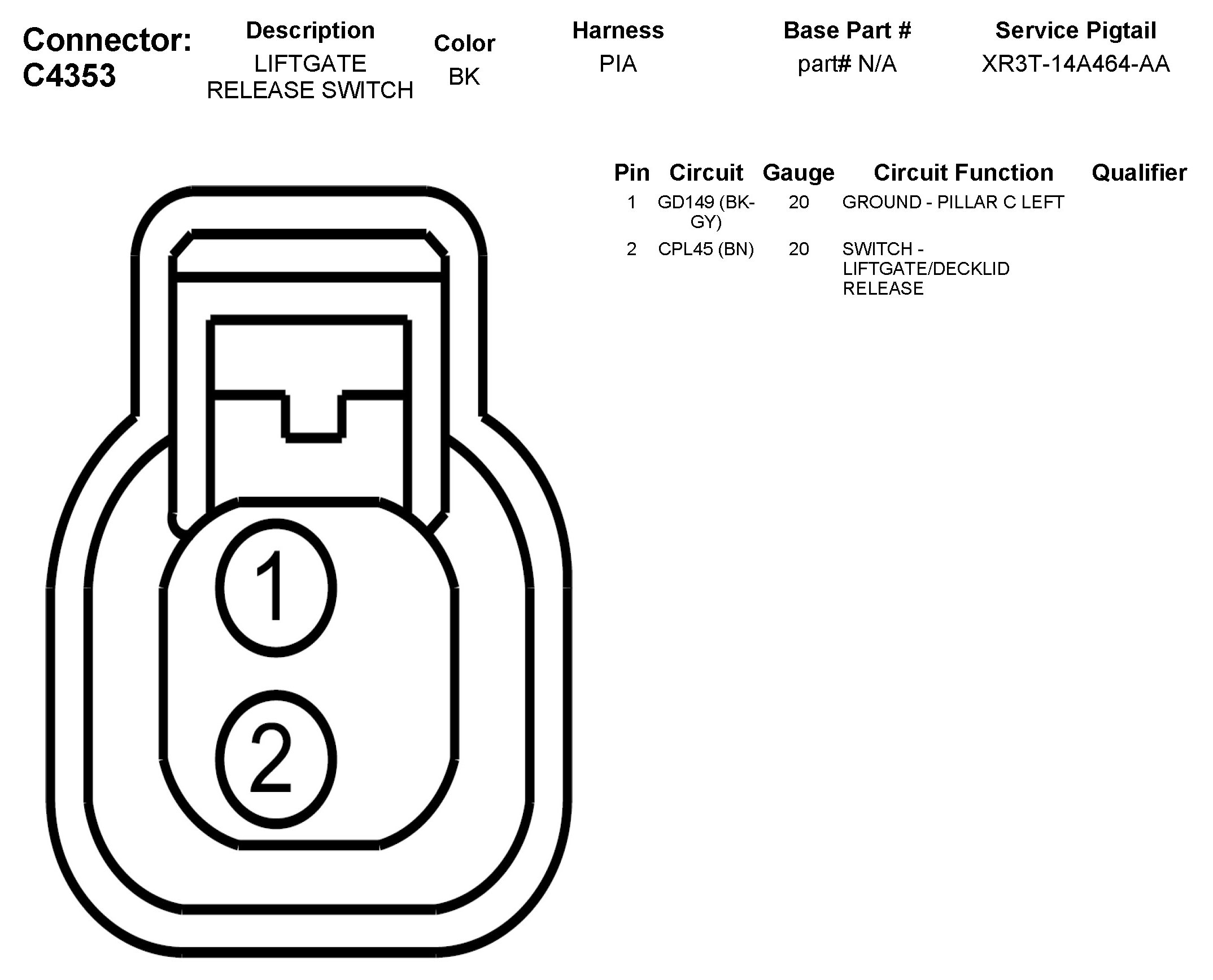

C4353 Liftgate Release Switch
