Steering Angle Sensor: Service and Repair

Steering Wheel Rotation Sensor













Removal and Installation

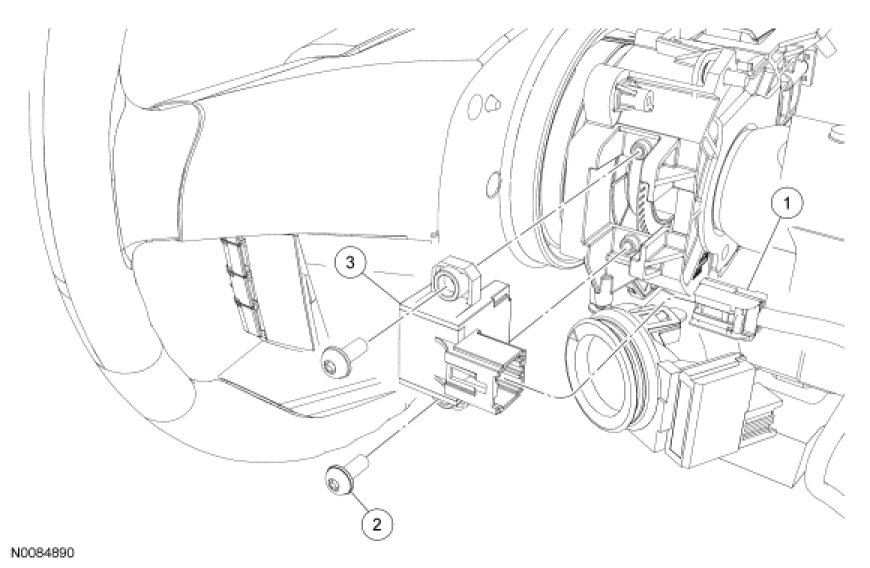

1. Remove the steering column shroud. For additional information, refer to Steering Column Service and Repair.

2. Disconnect the steering wheel rotation sensor electrical connector.

3. Remove the 2 bolts and the steering wheel rotation sensor.

4. To install, reverse the removal procedure.

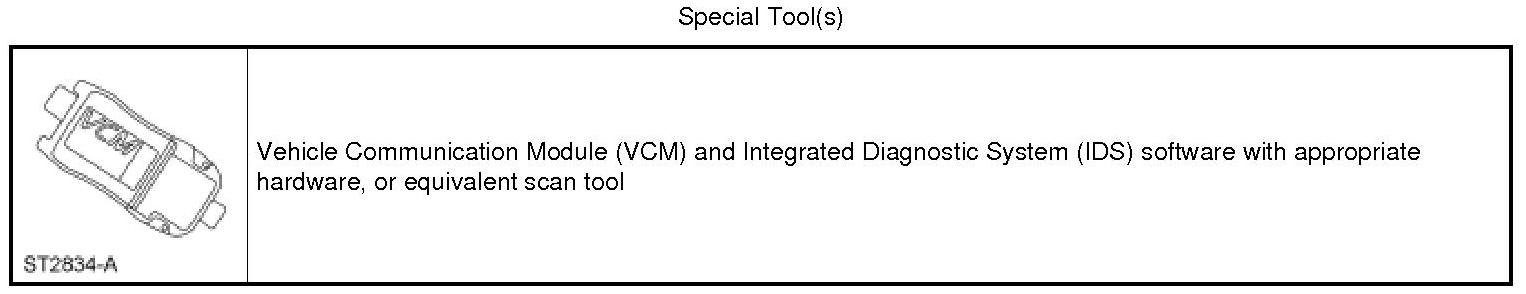

- Carry out the IVD Initialization sequence. Follow the scan tool directions.
