Evaporator Temperature Sensor / Switch: Service and Repair

Air Conditioning (A/C) Evaporator Discharge Air Temperature Sensor

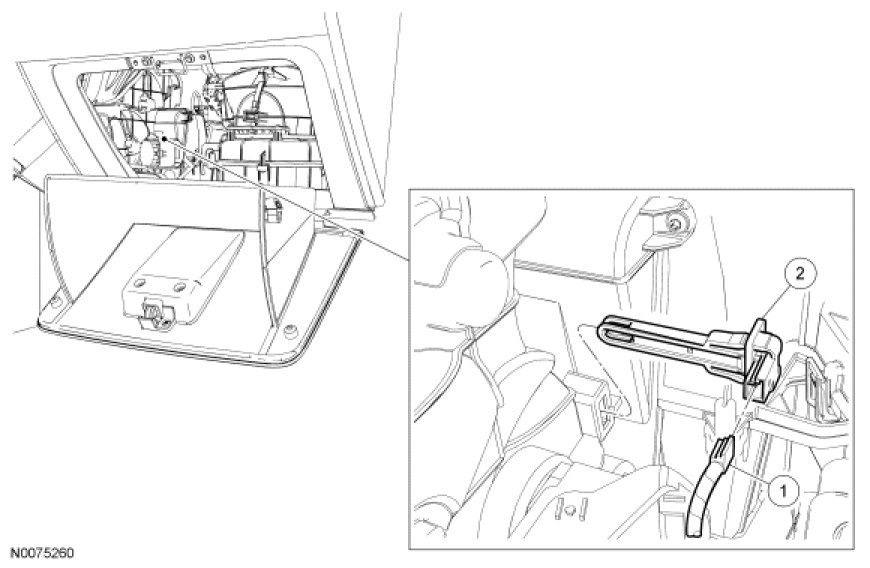

Removal and Installation

1. Lower the glove compartment.

2. Disconnect the A/C evaporator discharge air temperature sensor electrical connector.

3. Carefully pry out and remove the A/C evaporator discharge air temperature sensor.

4. To install, reverse the removal procedure.
