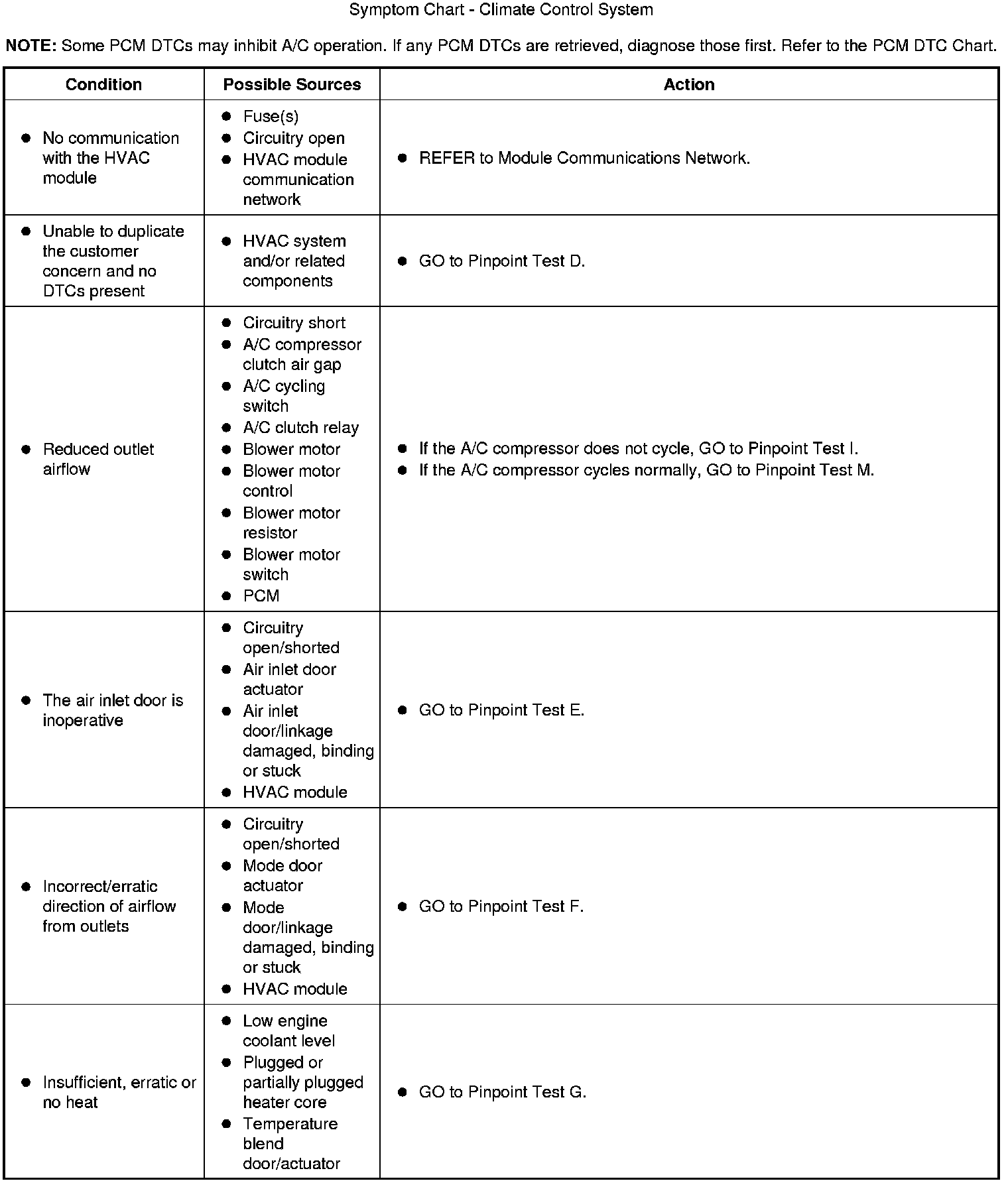

Symptom Chart - Climate Control System
Climate Control System

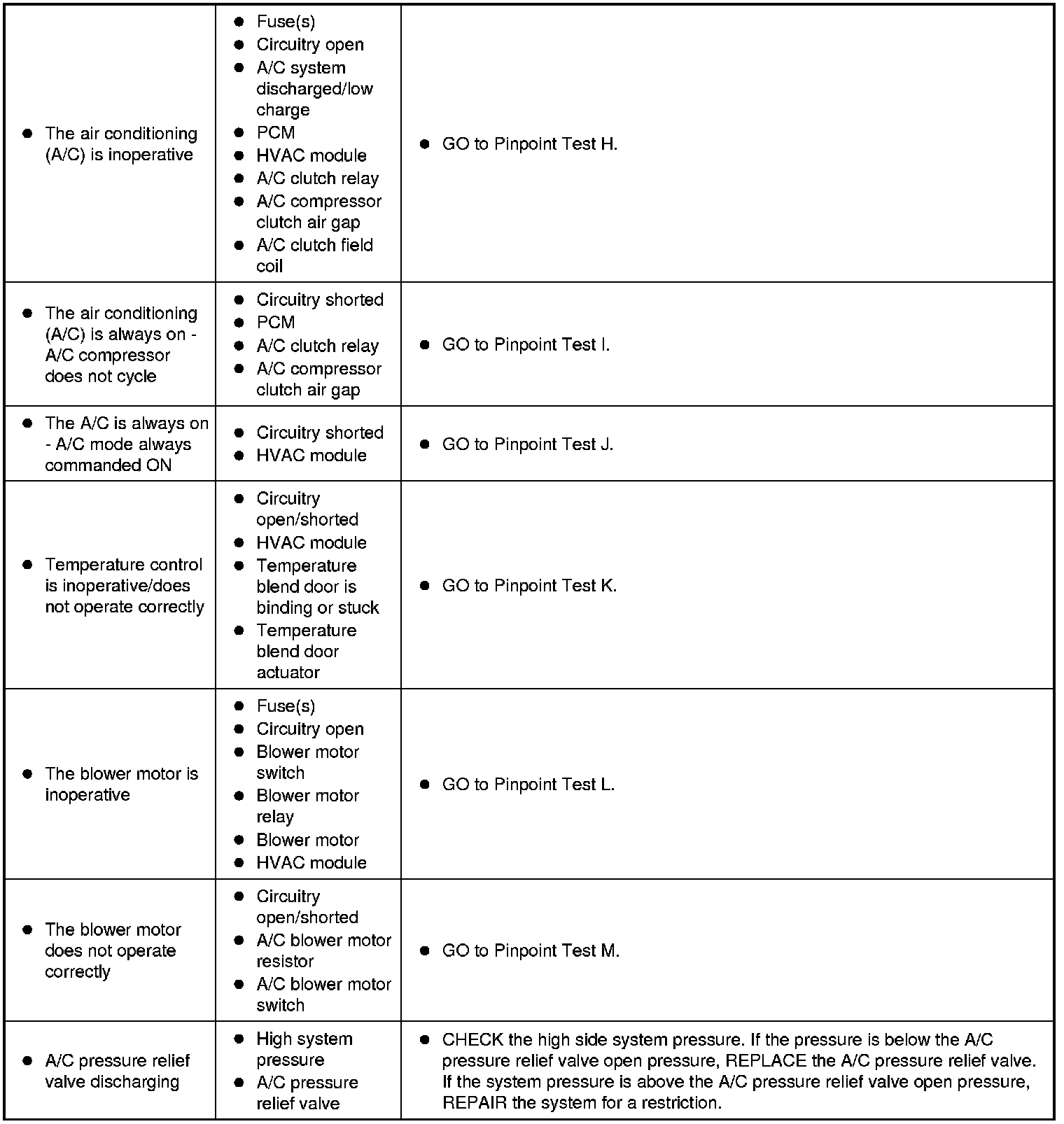

Symptom Chart - Climate Control System
