Dimmer Switch: Service and Repair

Instrument Panel Dimmer Switch









Removal and Installation

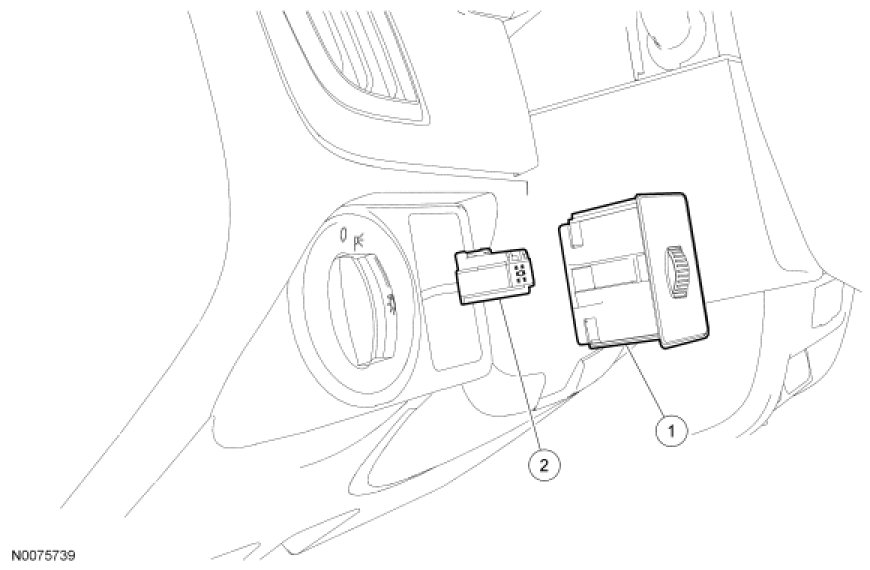

1. NOTE: The instrument panel dimmer switch is removed by reaching from underneath the instrument panel, releasing the top and bottom retaining clips and pushing it out from behind.

Remove the instrument panel dimmer switch.

- Disconnect the electrical connector.

2. To install, reverse the removal procedure.
