Test TE: Generator Motor Shutdown
PINPOINT TEST TE: GENERATOR MOTOR SHUTDOWN

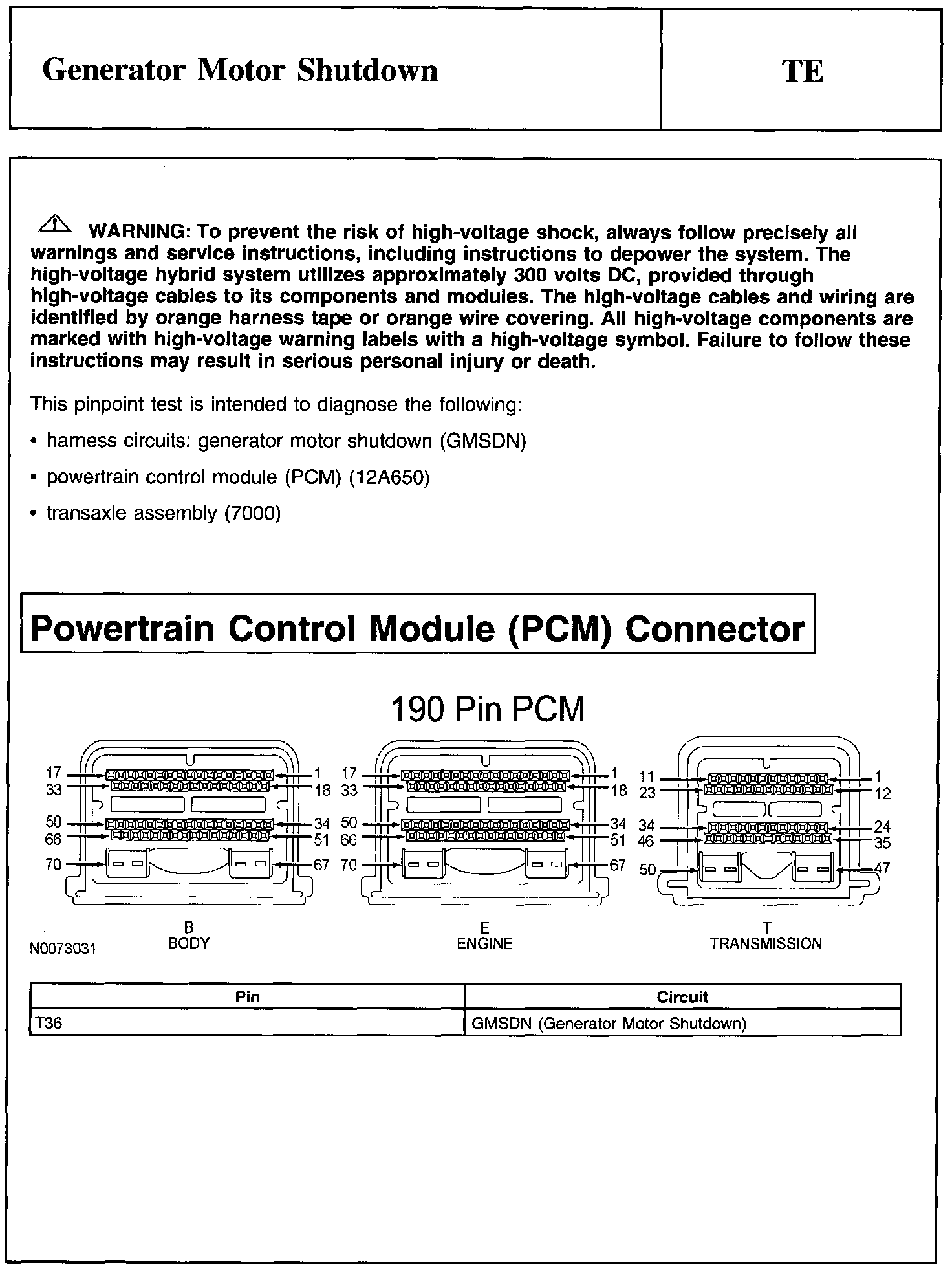

Warning And Powertrain Control Module (PCM) Connector:

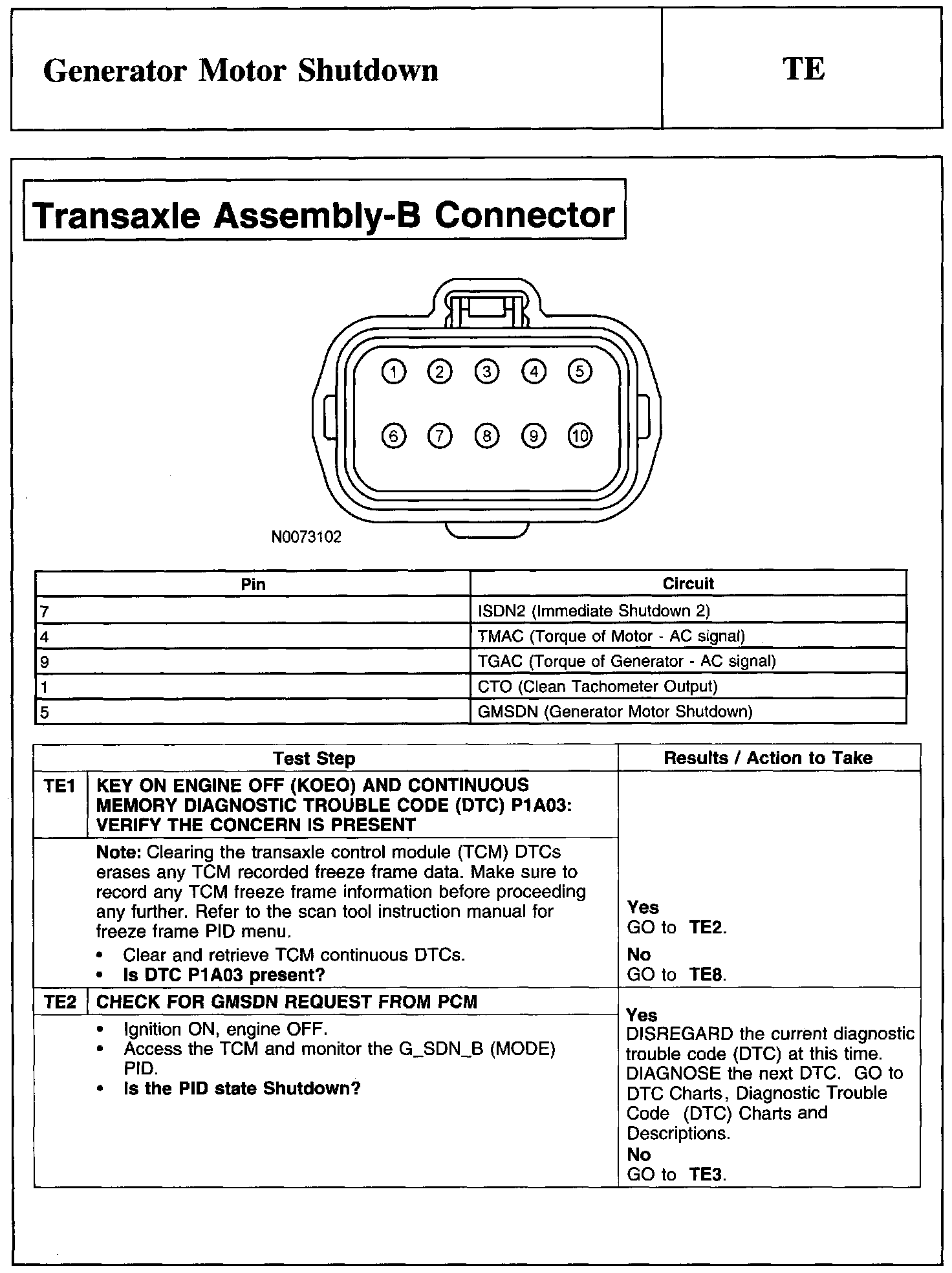

TE1-TE2:

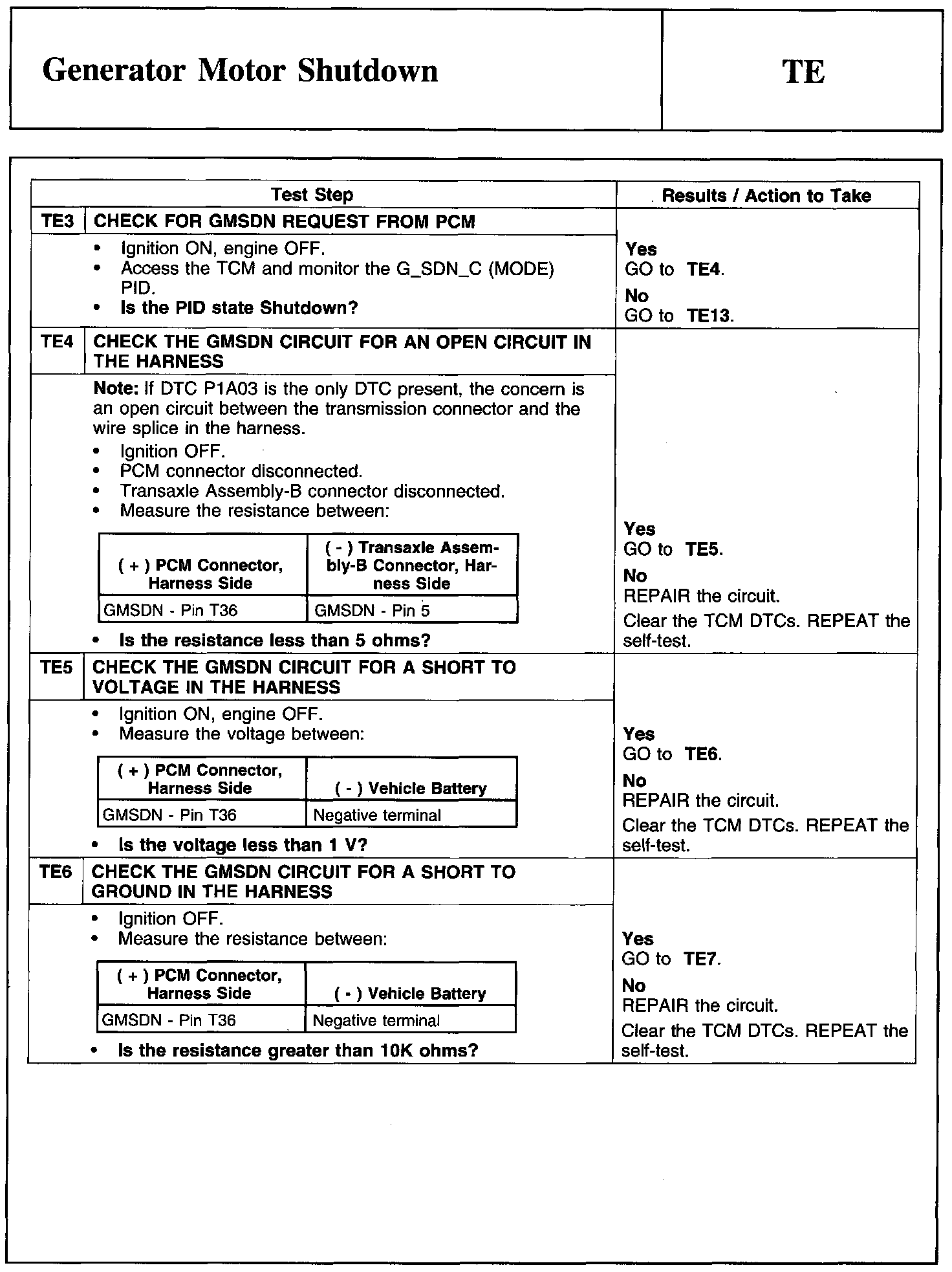

TE3-TE6:

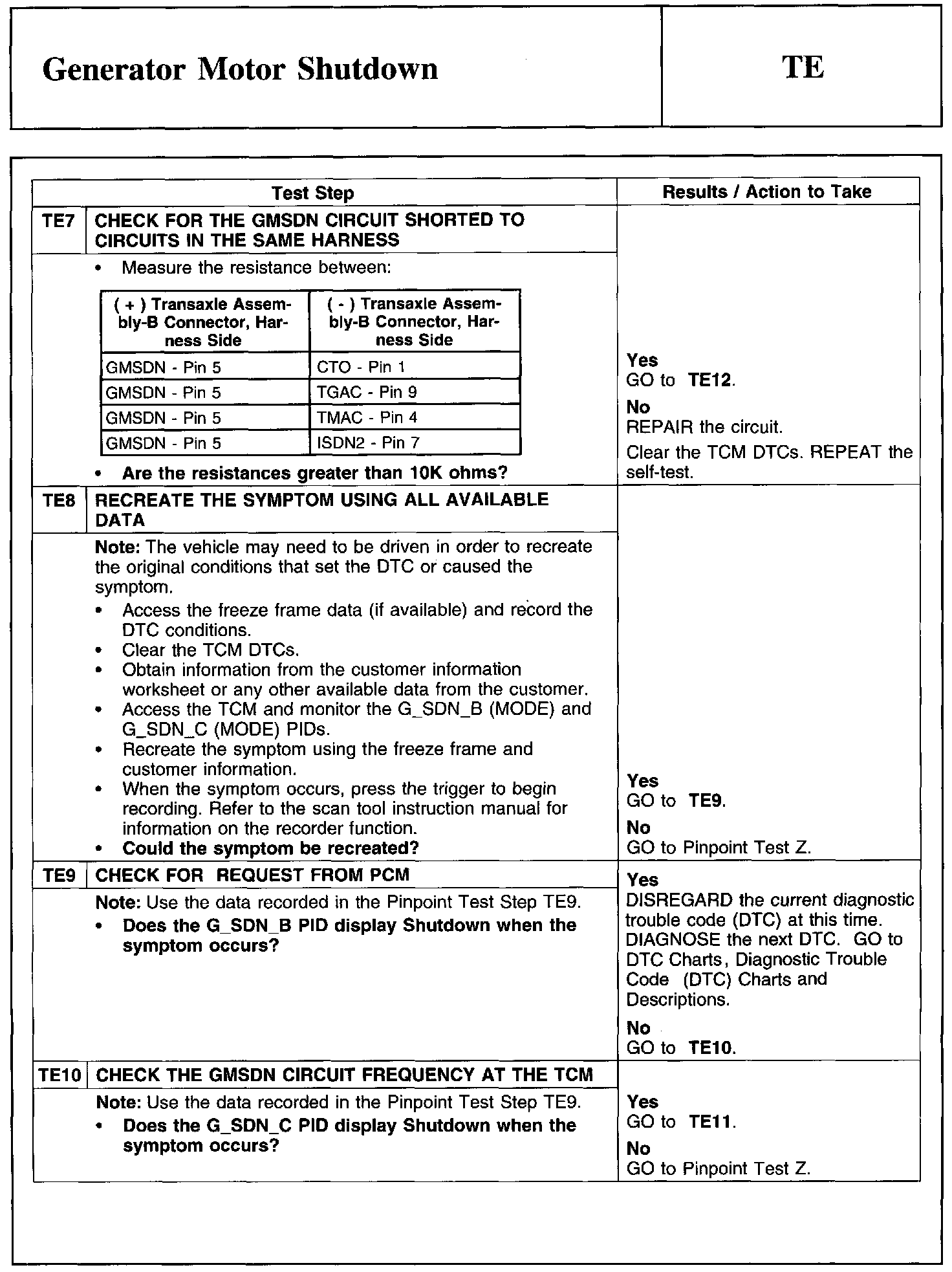

TE7-TE10:

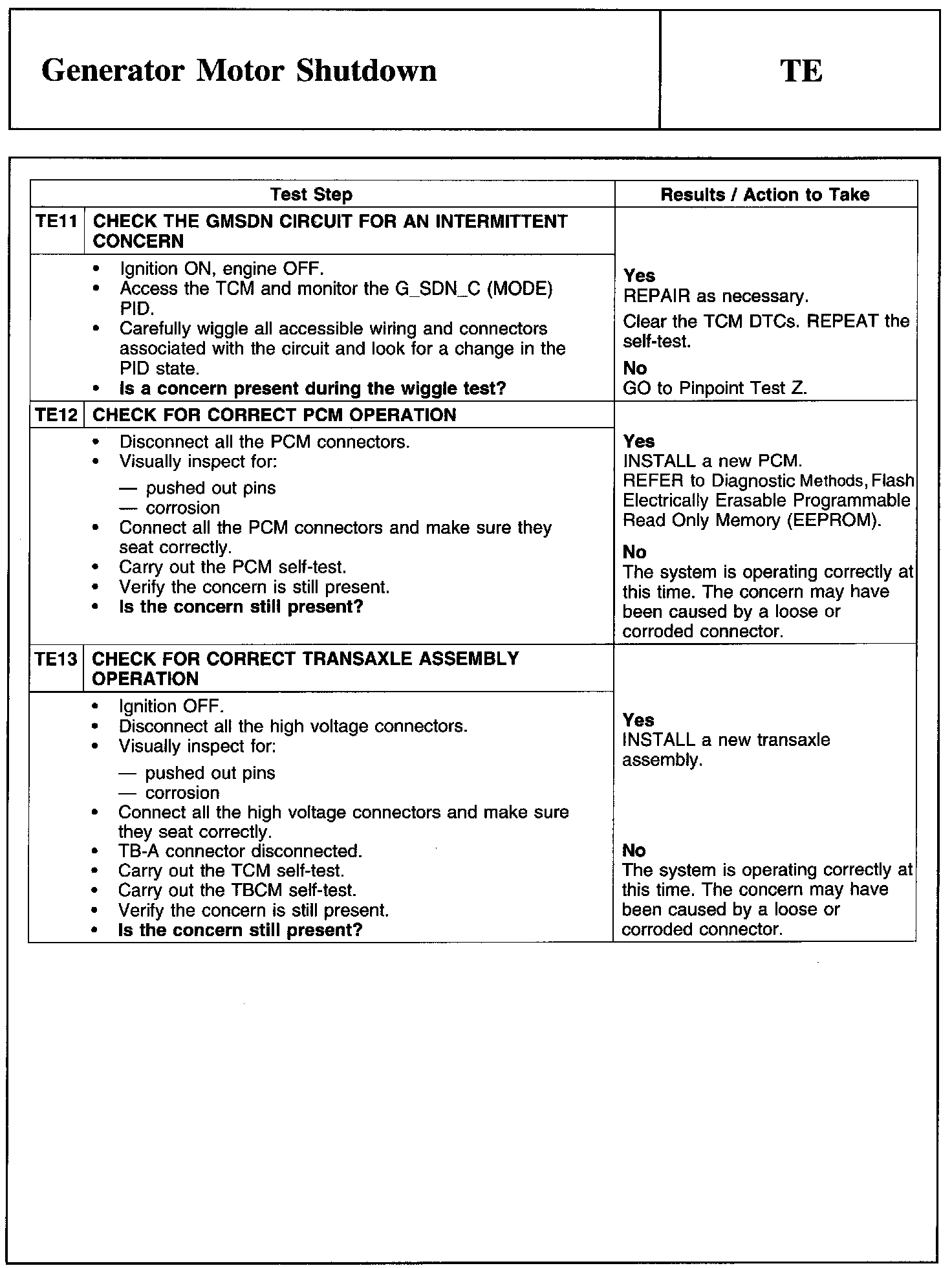

TE11-TE13:
