Traction Control Switch: Service and Repair

Traction Control Switch

NOTE: Fusion/Milan shown, MKZ similar.











Removal and Installation

NOTE: For MKZ, the traction control switch is serviced with the Front Controls Interface Module (FCIM). For additional information, refer to Information and Entertainment Systems Service and Repair.

1. Remove the instrument panel center finish panel. For additional information, refer to Instrument Panel and Console Instrument Panel Finish Panel - Center.

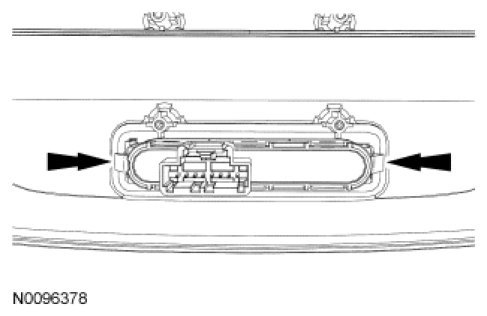

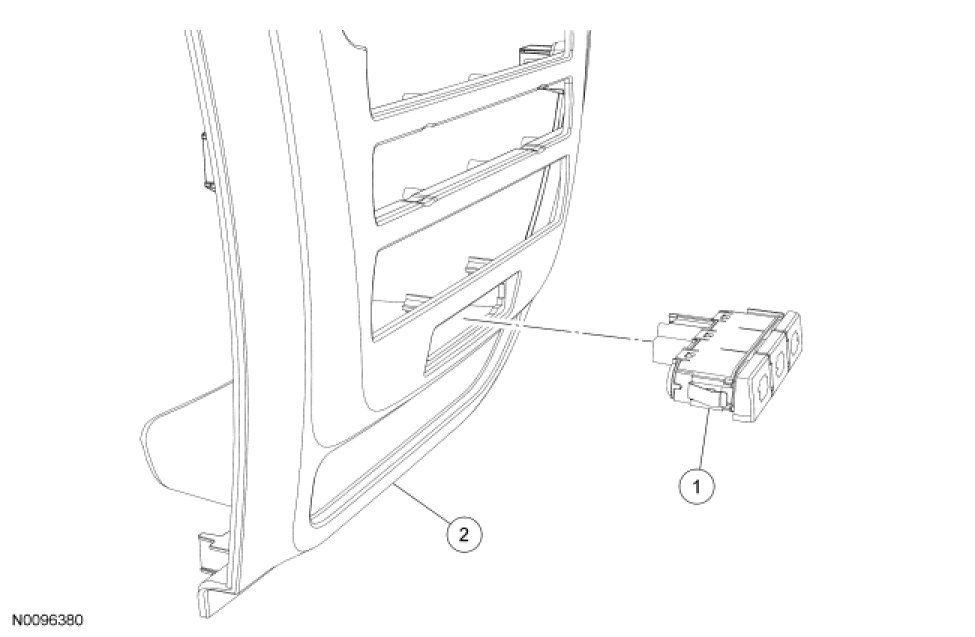

2. Press the retaining tabs and remove the traction control switch.





3. To install, reverse the removal procedure.
