Evaporator Temperature Sensor / Switch: Service and Repair

Air Conditioning (A/C) Evaporator Discharge Air Temperature Sensor









Removal and Installation

1. Remove the instrument panel. For additional information, refer to Instrument Panel and Console Instrument Panel.

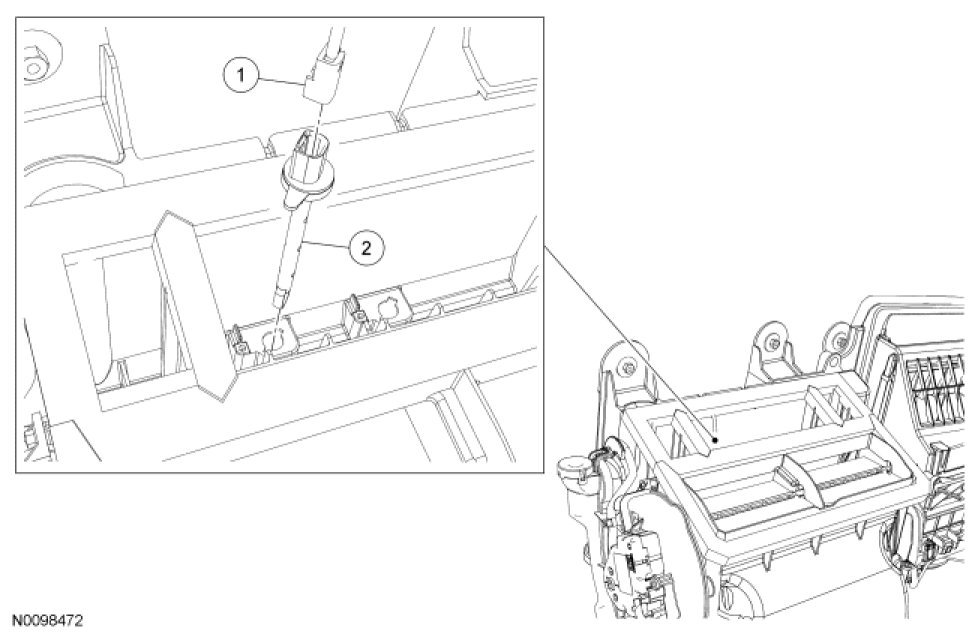

2. Rotate the A/C evaporator discharge air temperature sensor counterclockwise and pull upward to detach it from the heater core and evaporator core housing.

3. Disconnect the A/C evaporator discharge air temperature sensor electrical connector.

4. Remove the evaporator discharge air temperature sensor.

5. To install, reverse the removal procedure.
