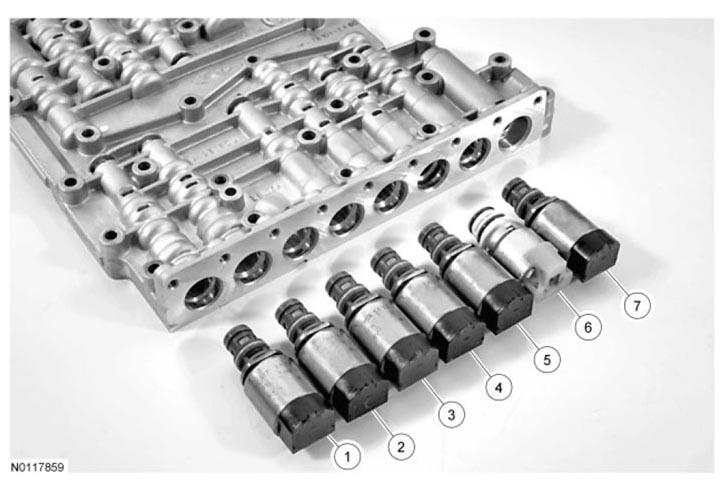

Shift Solenoid Location
PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 7G383 | Shift Solenoid A (SSA) Forward (1,2,3,4) clutch, normally low Variable Force Solenoid (VFS). |
| 2 | 7G383 | Shift Solenoid B (SSB) Direct (3,5, R) clutch, normally high VFS . |
| 3 | 7G383 | Shift Solenoid C (SSC), Intermediate (2,6) clutch, normally low VFS . |
| 4 | 7G383 | Line Pressure Control (LPC) normally high VFS . |
| 5 | 7G383 | Shift Solenoid D (SSD), low/reverse/overdrive clutch, normally high VFS . |
| 6 | 7G484 | Shift Solenoid E (SSE), normally off ON/OFF solenoid. |
| 7 | 7G383 | Torque Converter Clutch (TCC) normally low VFS . |
