EGR Tube: Service and Repair

Exhaust Gas Recirculation (EGR) Valve Outlet Tube - 2.3L









Removal and Installation

1. Remove the intake manifold. For additional information, refer to Engine - 2.3L Service and Repair.

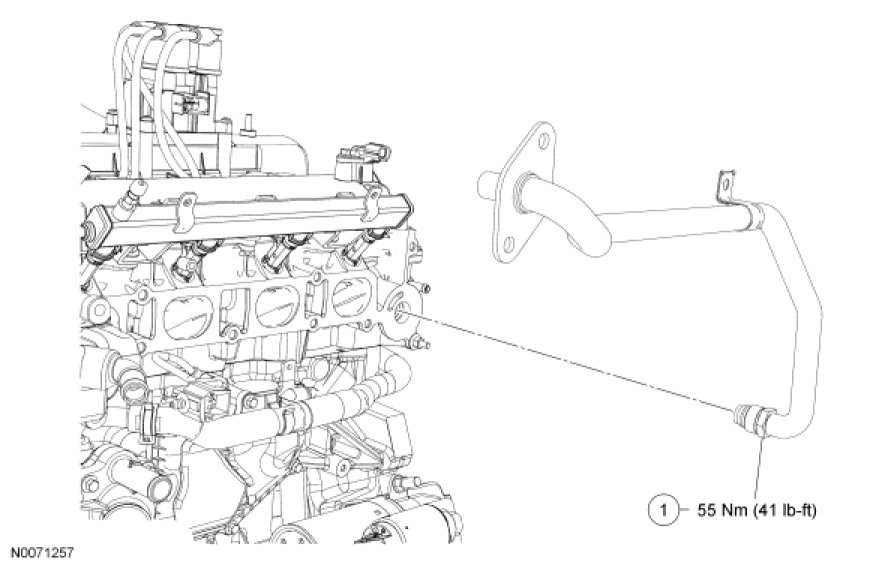

2. Loosen the fitting and remove the EGR tube.
- To install, tighten to 55 Nm (41 lb-ft).

3. To install, reverse the removal procedure.
