Windshield Washer Switch: Service and Repair

Steering Column Multifunction Switch

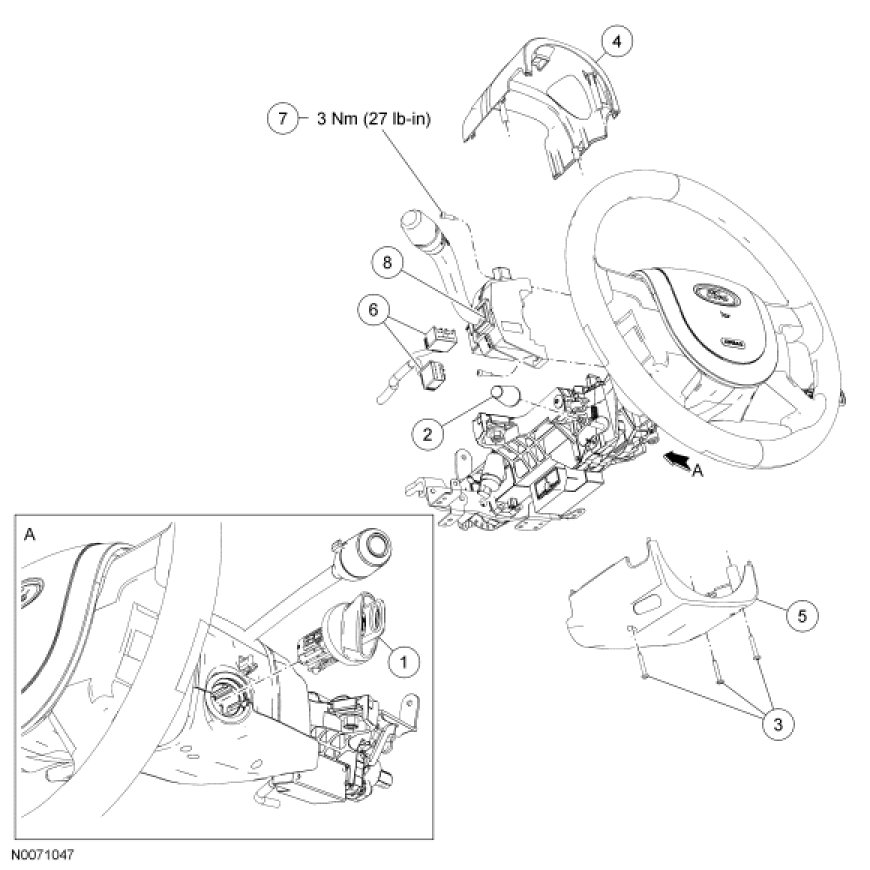

Removal and Installation

1. Remove the ignition switch lock cylinder. For additional information, refer to Handles, Locks, Latches and Entry Systems Service and Repair.

2. If equipped, remove the tilt release lever/ handle.

3. Remove the 3 steering column shroud screws and the upper and lower steering column shrouds.

4. Disconnect the multifunction switch electrical connectors.

5. Remove the 2 screws and the multifunction switch.
- To install, tighten to 3 Nm (27 lb-in).

6. To install, reverse the removal procedure.
