Steering Wheel Rotation Sensor

Steering Wheel Rotation Sensor









Removal and Installation

NOTE: This procedure only applies to vehicles equipped with Hydraulic Power Assist Steering (HPAS).

1. Remove the steering column shrouds. For additional information, refer to Steering Column Steering Column Shroud.

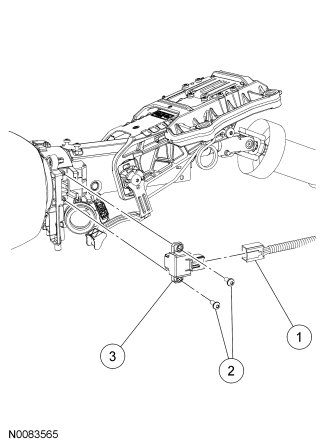

2. Disconnect the steering wheel rotation sensor electrical connector.

3. Remove the 2 bolts and the steering wheel rotation sensor.

4. To install, reverse the removal procedure.
- Drive the vehicle and make several tight circles to calibrate the new sensor.
